Wear Sensor Assembly 05.801.49.50; Items; Assembly - BPW SH Notice De Montage

Seite 6
2

Wear sensor assembly 05.801.49.50.0

2.1

Items

2.2

Assembly

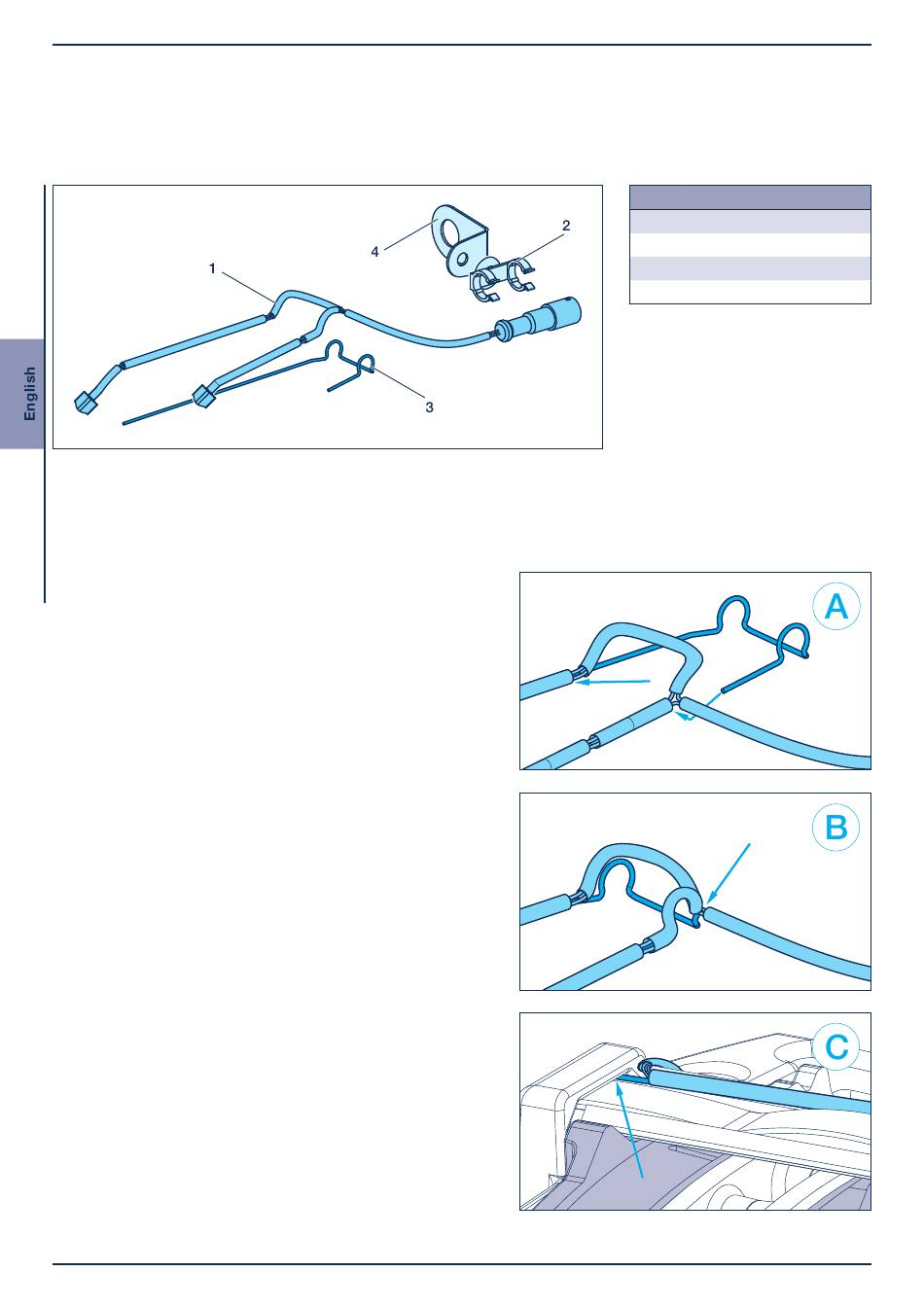

(A) Pre-mount retention clip (3) in the protective sleeve of
cable (1) as illustrated.
(B) Pull back protective sleeve on the short end of the
retention clip through retention clip radius (see arrow).
(C) Mount the long end of the retention clip (3) above
the pad retaining bracket in the recess on the brake
caliper.
BPW-EA VS TSB 04.00.543592 - Rev. 3
Item Designation
1 Sensor cable assembly
2 Mount for plug
3 Retention clip
4 Angle bracket
