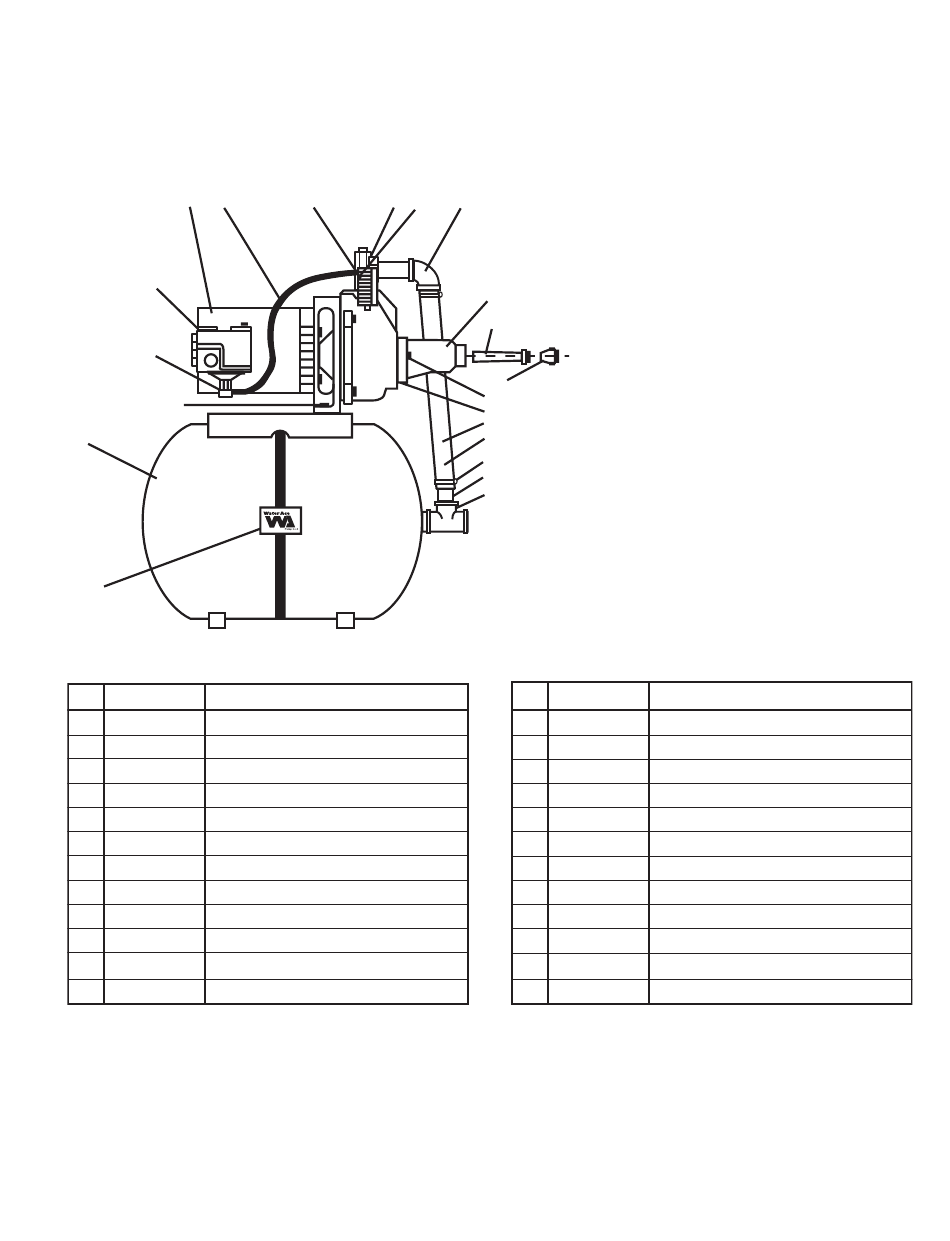

REPLACEMENT PARTS

1 12
17
21
13, 19, 20
11
22
REF.
PART NUMBER
NO.
1 20929D511
2 05003A000
3 26267A012
4 23188A005
7 05126A013
8 23188A007
9 05920A173
10 06190A001
11 25800A500
12 10649A120
13 11933A002
14 24859C500
2 3 8
DESCRIPTION
PUMP
PRESSURE GAUGE
REGULATOR
HOSE ADAPTER
PIPE TEE
FITTING
HOSE
T.O.E. NIPPLE
TANK
TUBE
SHIM (2 required)
EJECTOR BODY
4
16
JET TANK SYSTEM
14
MODEL R-520C-T7
24
23
15
18
9
10
16
25
7
REF.
PART NUMBER
NO.
15 19101A019
16 14740A001
17 15760A510
18 19277A001
19 19100A029
20 19109A012
21 23188A002
22 25579A108
23 08728A001
24 25882A437
24 25881A328
25 24206A004
8
DESCRIPTION
SCREW (2 required)
HOSE CLAMP (2 required)
PRESSURE SWITCH
GASKET
SCREW (2 required)
NUT (2 required)
FITTING
EMBLEM
NOZZLE
VENTURI TUBE (shallow well)
VENTURI TUBE (deep well)
NIPPLE
23833A203
