2. DESCRIPTION

400, 600 and 850 models are MMA (coated electrode) and TIG (with torch with valve) welding rectifiers. 600 and
850 models allow ARC-AIR gouging and cutting. Current adjustment is tiristorized and effectuated locally or remotely at
distance.
They allow welding of all kinds of electrodes (400 model until 6 mm diameter and 600 and 850 models until 8 mm
diameter) and TIG (for mild steels, stainless steels, copper and brass).

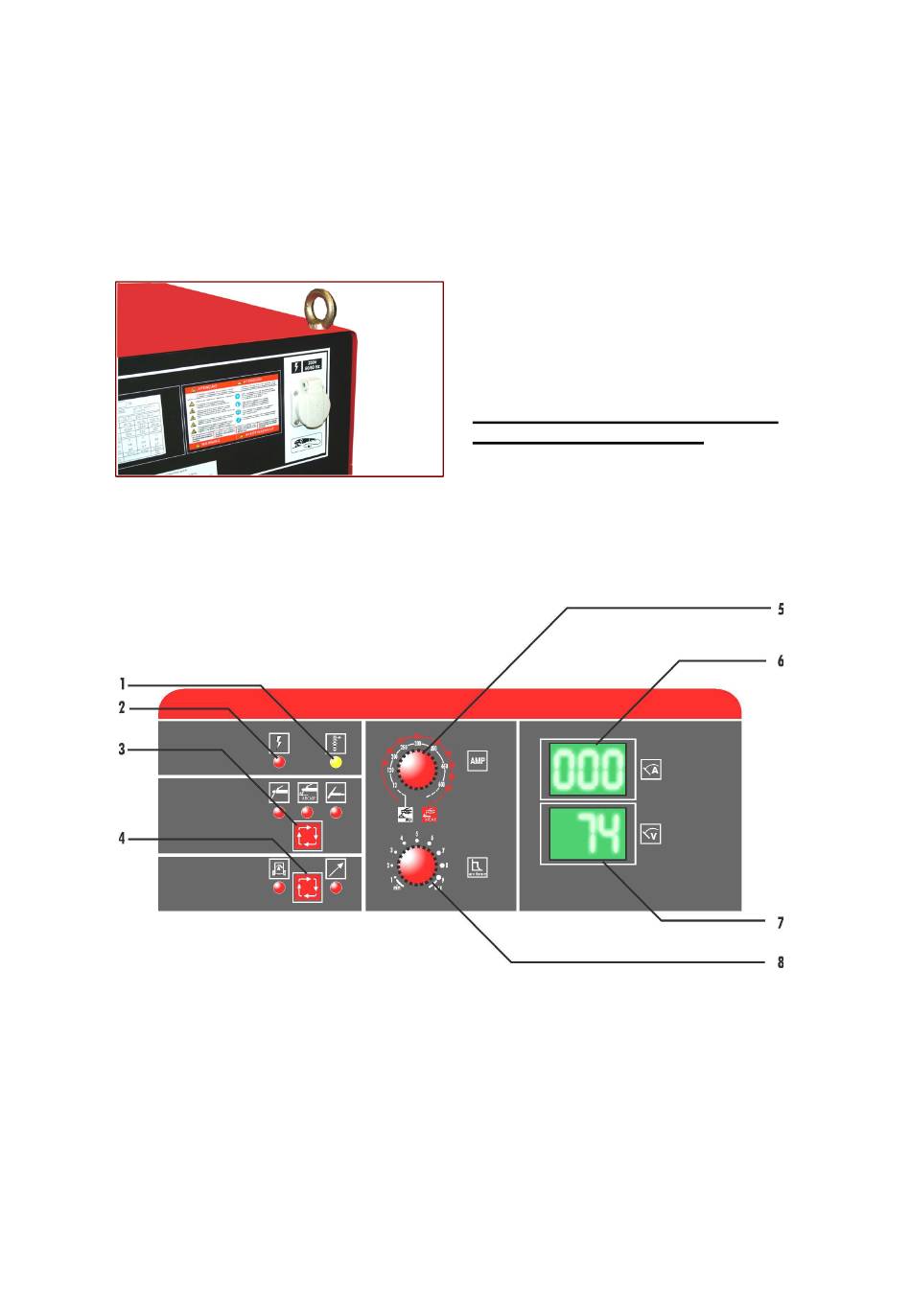

FRONT PANEL

1
Thermal protection indicator
2 Machine under voltage indicator
MMA/TIG (Mod. 400) or MMA/TIG/ARC
3
(Mod. 600 and 850) selector
LOCAL/REMOTE adjustment selector
4
All manuals and user guides at all-guides.com
Fig. 1
-AIR
All models are equipped with a 230V 2200V
single-phased socket, located on the rear
panel, for electric tools, econoTIG and high
frequency generator for TIG welding
connection.
Attention: do not plug or use any electric
tool during welding procedure.
Fig. 2
Welding current adjustment button (400 model) or
welding current and ARC AIR cutting (600 and
5
850 models)
6 Ammeter
7 Voltmeter
8 ARC FORCE adjustment button
6
