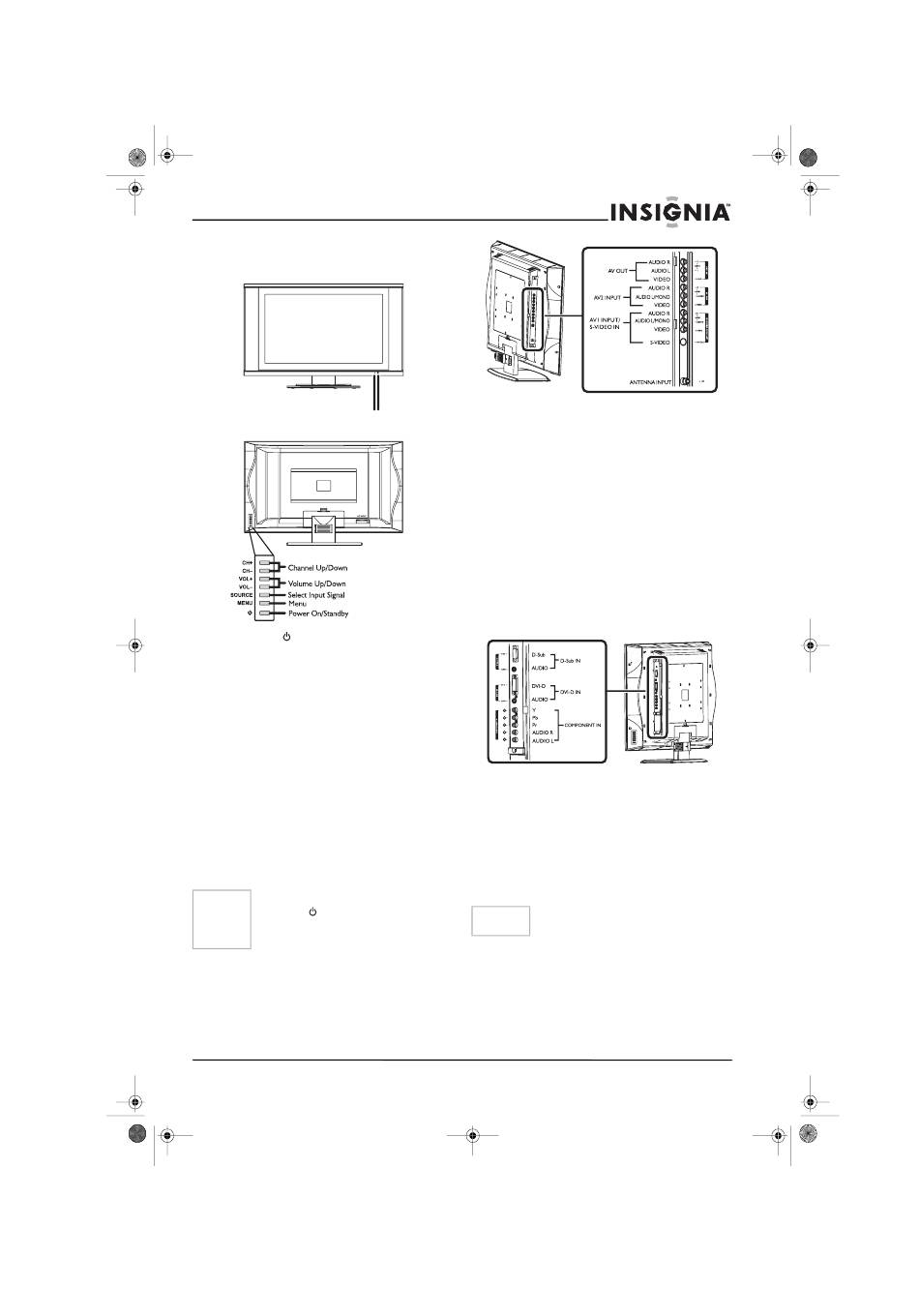

Identification of Controls

Main Unit

Power
indicator
• POWER
Press this button to turn the unit ON from
STANDBY mode. Press it again to turn the
set back to STANDBY.
• MENU
Press this button to access the Menu main
page.
• SOURCE
To access signal source select menu.
• VOL+/-
Press the vol+ or vol- button to directly
increase or decrease the sound volume level;
In OSD Menu, press these buttons to adjust
the value or setting of each item.
• CH+/-
Press these two buttons to directly change
the TV channel;
In OSD Menu, press these buttons to choose
the OSD items.
Note Functions of VOL+/-, CH+/-, MENU, SOURCE
and POWER are also provided to the remote
control. This operation manual provides a
description based on operating functions with the
remote control.
A blue indicator lights when the power is on and
Remote
a red indicator lights when in the standby mode.
sensor
• Antenna input
Allows you to connect cable or outdoor
antenna.
• Headphone jack
• AV1 inputs (Video, Audio L/mono, R) /
S-Video input
Receive video/audio signals from external
sources such as VCR or DVD player.
Receive a S-Video signal from external
source such as VCR or DVD player.
• AV2 inputs (Video, Audio L/mono, R)
Receive video/audio signals from external
sources such as VCR or DVD player.
• AV outputs (Video, Audio L, R)
Connect to the VCR input jacks to record
programs.
• D-Sub input /Audio in
Connect to the D-Sub/audio output jacks on
your PC.
• DVI input /Audio in
Connect to the DVI/audio output jacks on
your DTV receiver.
• COMPONENT inputs (Y, Pb/Cb, Pr/Cr,
Audio L, R)
Connect to the audio and component output
jacks of a DVD player or Set-Top Box.
Note The AV output terminals output audio/video signal
inputted from Antenna input or AV inputs.
