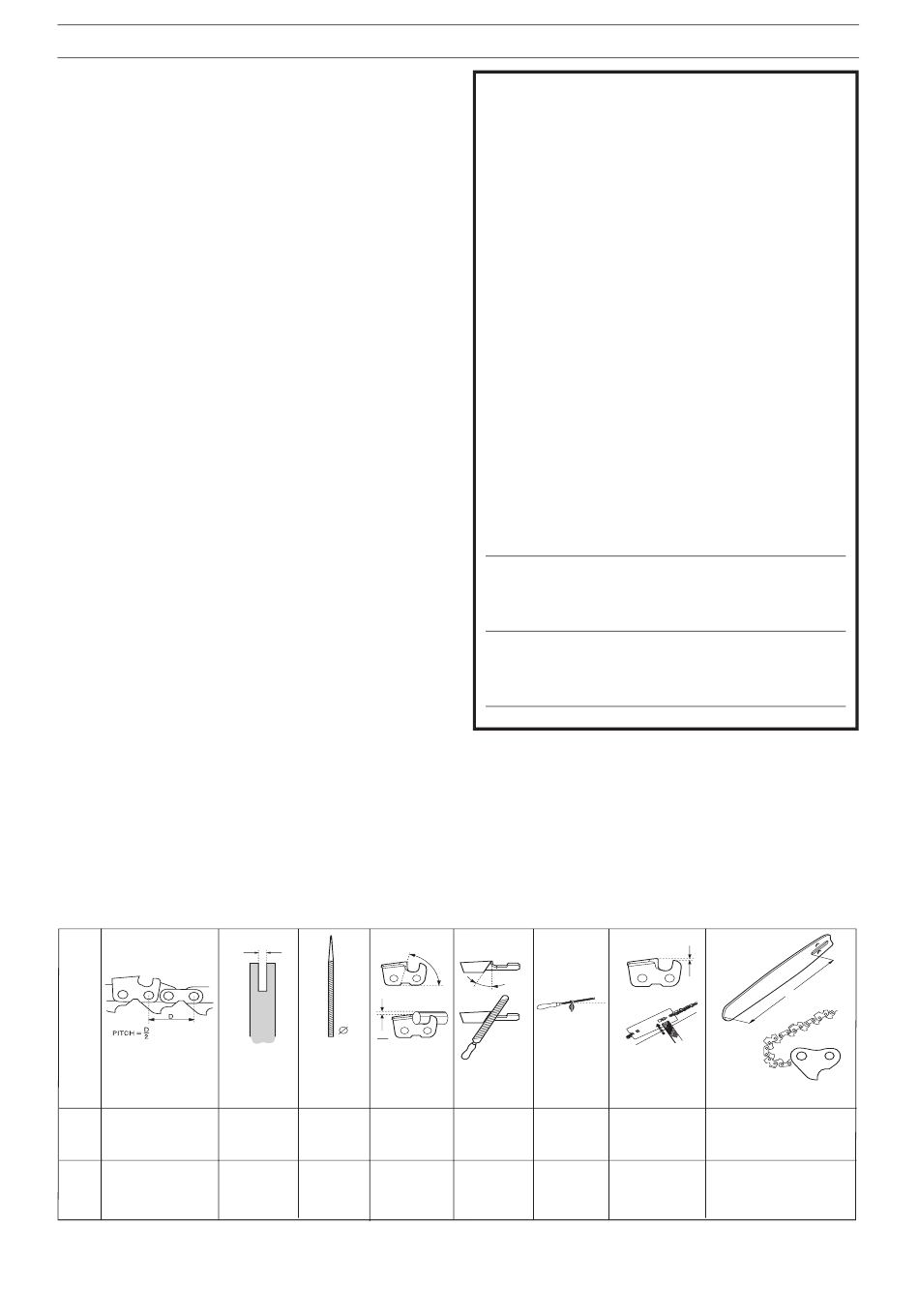

Technical Data; 338Xpt - Jonsered 334T Manuel D'utilisation

334T
Engine
Cylinder volume, cu.in/cm 3 2,15/35,2
Cylinder bore, inch/mm 1,50/38
Stroke, inch/mm 1,22/31
Idle speed, rpm 2 800
Power, kW/ rpm 1,5/9 600
Ignition system
Manufacture SEM
Type of ignition system CD
Spark plug NGK BPMR 7A
Champion RCJ 7Y
Electrode gap, inch/mm 0,02"/0,5
Fuel and lubrication
system
Manufacturer ZAMA
Carburetor type C1Q-EL19
Fuel capacity, US pint/litre 0,63/0,3
Oil pump capacity at
8 500 rpm, ml/min 3-7
Oil capacity, US pint/litre 0,34/0,16
Type of oil pump Automatic
Weight
Without bar and chain,
Lbs/kg 7,7/3,5
Chain/bar
Standard bar length,
inches/cm 14"/34
Recommended bar
lengths, inches/cm 12"-16"/30-41
Usable cutting length,
inches/cm 11"-13"/28-33
Chain speed at max.
power, m/sec 18,3
Pitch, inch 3/8"
Thickness of drive link,
inch/mm 0,050"/1,3
Number of teeth on drive
sprocket 6
Type Inch
S36 3/8" 0,050"/1,3
91VG 3/8" 0,050"/1,3
34
– English
All manuals and user guides at all-guides.com

TECHNICAL DATA

338XPT

2,4/39
1,6/40
1,22/31
2 800
1,7/9 600
SEM
CD
NGK BPMR 7A
Champion RCJ 7Y
0,02"/0,5
ZAMA
C1Q-EL19
0,63/0,3
3-7
0,34/0,16
Automatic
7,7/3,5
14"/34
12"-16"/30-41
11"-15"/28-38
18,3
3/8"
0,050"/1,3
6
1
5
Inch/mm Inch/mm Angle
5/32" /4,5 60°
5/32" /4,5 60°
RECOMMENDED CUTTING EQUIPMENT
FOR CANADA
The following is a list of recommended cutting equipment
for Class 1A and 1B Chainsaws.
The combinations of powerhead, bar and chain meet all
requirements outlined in the CSA Z62.1-95 Chainsaws and
Z62.3-96 Chainsaw Kickback standards.
The guide bar nose radius is determined by either the
maximum number of teeth in the nose sprocket or the
corresponding maximum nose radius of a solid bar.
As we are listing the maximum guide bar nose radius, you
may use a guide bar with smaller nose radius than in our
list. For guide bars of the same length, all sprocket-nose
guide bars of the same pitch and having the same number
of sprocket teeth may be considered to have equivalent
kickback energy.
A hard nose bar having the same length and nose radius
as a sprocket-nose bar may be considered to have
equivalent or less kickback energy than the sprocket-nose
bar.
We recommend that you as replacement use the listed bars
and chains or "Type C Low-Kickback Saw Chains" which
are available at your dealer.
Guide bar Saw chain
Length Pitch Max nose
inch inch radius
Husqvarna 334T
12 3/8 7T Husqvarna S36 or Oregon 91VG
14 3/8 7T
16 3/8 7T
Husqvarna 338XPT
12 3/8 9T Husqvarna S36 or Oregon 91VG
14 3/8 9T
16 3/8 9T
Angle Angle Inch/mm
30° 0° 0,025"/0,65
30° 0° 0,025"/0,65
L
Inch/cm: dl
12"/30:45 14"/34:52
16"/41:56
12"/30:45 14"/34:52
16"/41:56
