INSTALLATION MANUAL
CBB
Self-contained Keypad - braille keys

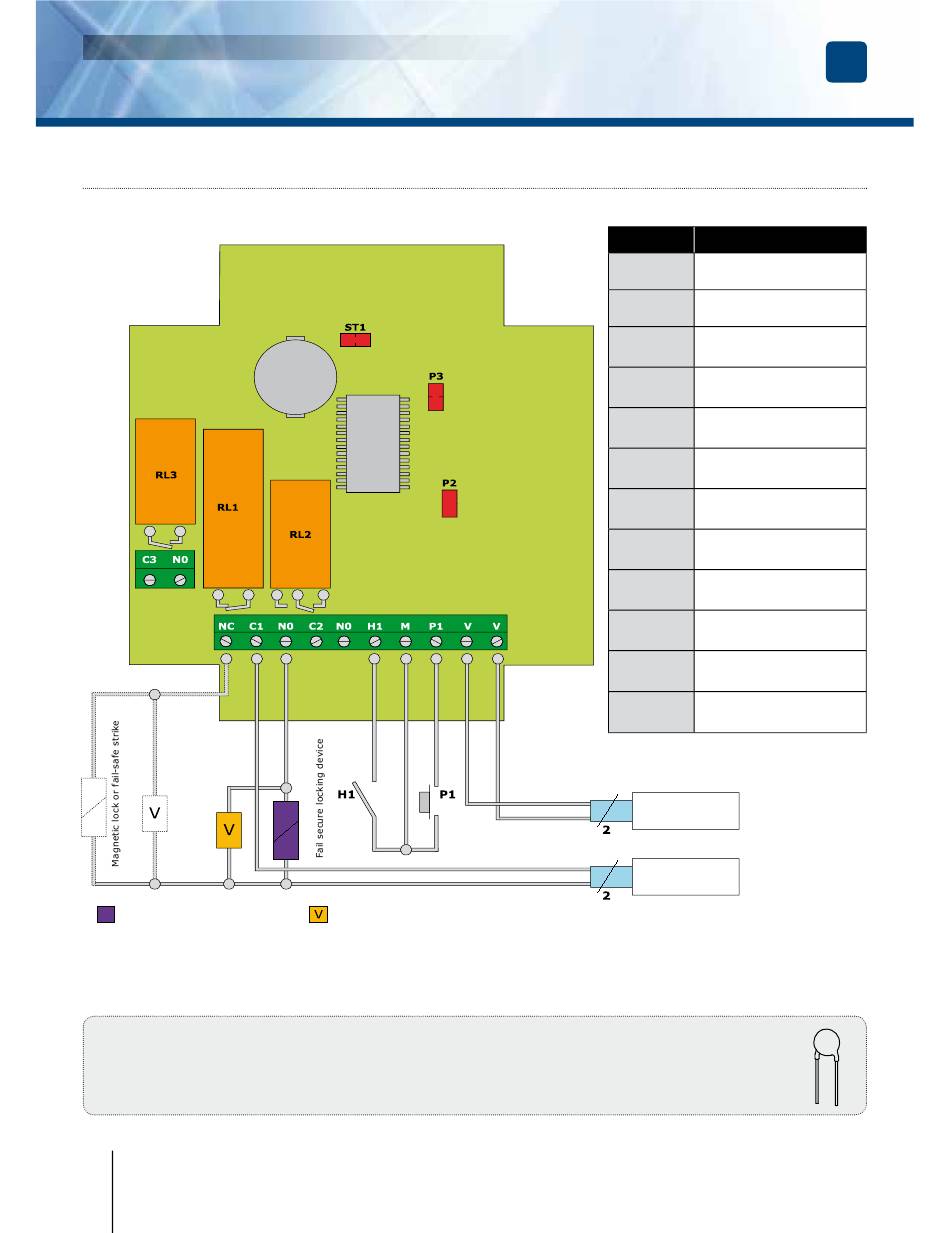

5] WIRING DIAGRAM

Strike
P2 : Reset
This product is supplied with a varistor.
It should be mounted on the terminal of electric release (electromagnetic lock, solenoid bolt, etc.) controlled
by the device. If this device controls more than one electronic release, then each lock should be fi tted
with a varistor. The varistor controls the overload produced by the strike coil - back emf. It is recommended
to use a separate power supply when using a Shear Lock Magnet.
cdvi.com
14
cdvigroup.com
All manuals and user guides at all-guides.com
Varistor
P3 : E nable/disable user code
modifi cation by user
Terminals Description
Input voltage 12V to 24V ac
V
or 12V to 48V dc
Input voltage 12V to 24V ac
V
or 12V to 48V dc
P1 Relay 1 Request-to-Exit input
M Common input for P1 and H1
H1 Clock switch
N0 Relay 2 N/C contact
C2 Relay 1 common
N0 Relay 1 N/C contact
C1 Relay 1 common
NC Relay 1 N/O contact
N0 Relay 3 N/C contact
C3 Relay 3 common
Input Voltage
12V to 24V ac
230V
or 12V to 48V dc
Input Voltage
12V to 24V ac
230V
or 12V to 48V dc
ST1 : A udible feedback jumper
Remove to disable audible
feedback
EN
