Product Presentation; Reminders And Recommendations - Cdvi Digicode Cbb Manuel D'installation

INSTALLATION MANUAL
CBB
Self-contained Keypad - braille keys
Thank you for buying our products and for the confi dence you placed
in our company.

1] PRODUCT PRESENTATION

Stainless steel.
Braille keys.
Weatherproof IP54.
3 relays + 2 leds.
Surface mount.
Installation with Diax
Varnish coated PCB.
100 user codes.
Audible and visual feedback.
P CB protected against humidity by varnish
coating.
R equest-to-enter (Trade) can be operated
from the 0 digit.

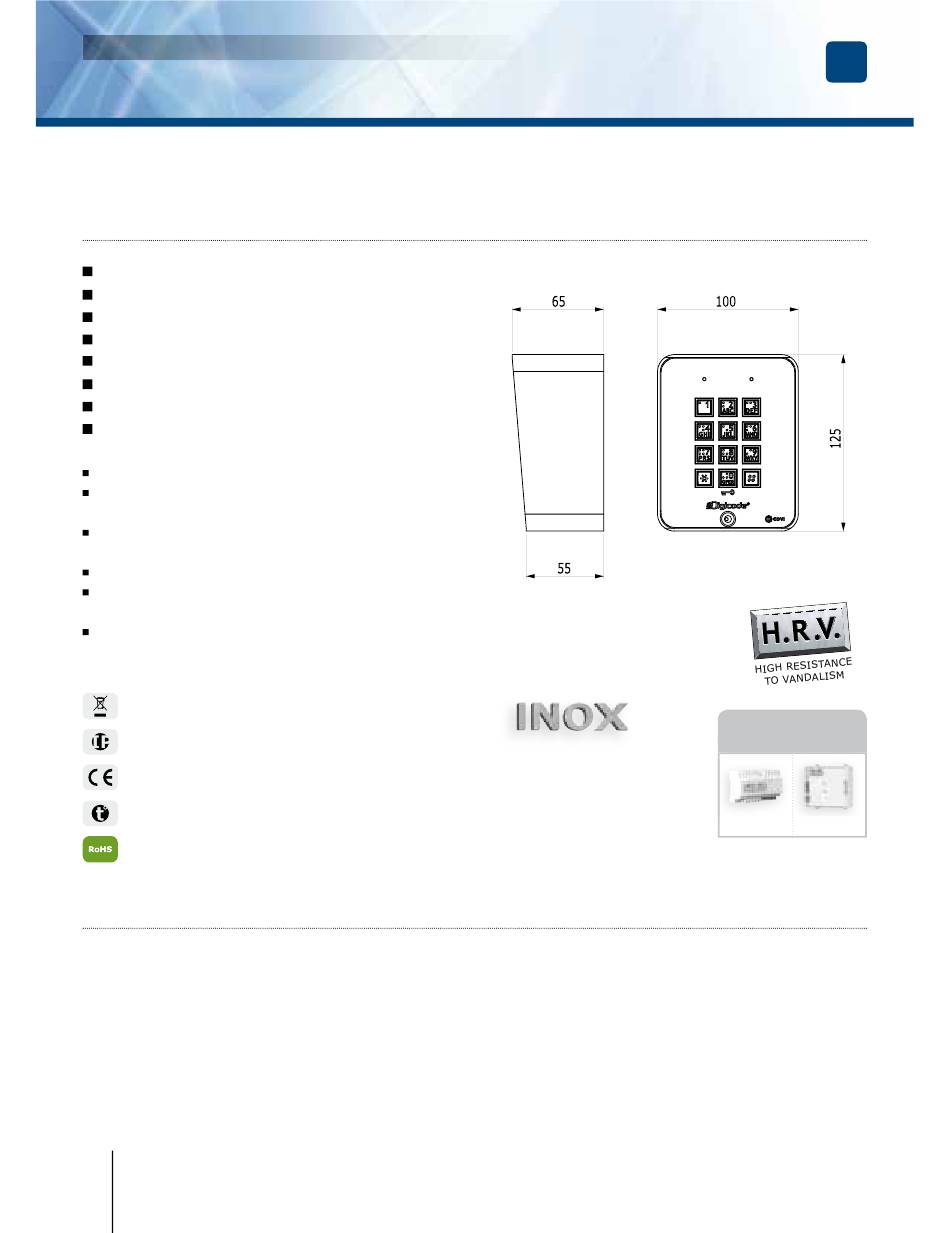

D imensions (L x W x D): 125 x 100 x 65 mm.
Input voltage: 1 2 V to 24 V ac
12 V to 48 V dc.
C onsumption: 140 mA.
WEEE
IP54
Certifi cation CE
-20°C to +50°C
RoHS

2] REMINDERS AND RECOMMENDATIONS

Recommended power supplies
- T here are two suitable power supplies
for the enclosed keypad:
ARD12 and BS60
- Separate power supply for control components.
Mounting recommendations
Mount the keypad on a fl at surface to avoid
any vandalism and to ensure the best mounting.
