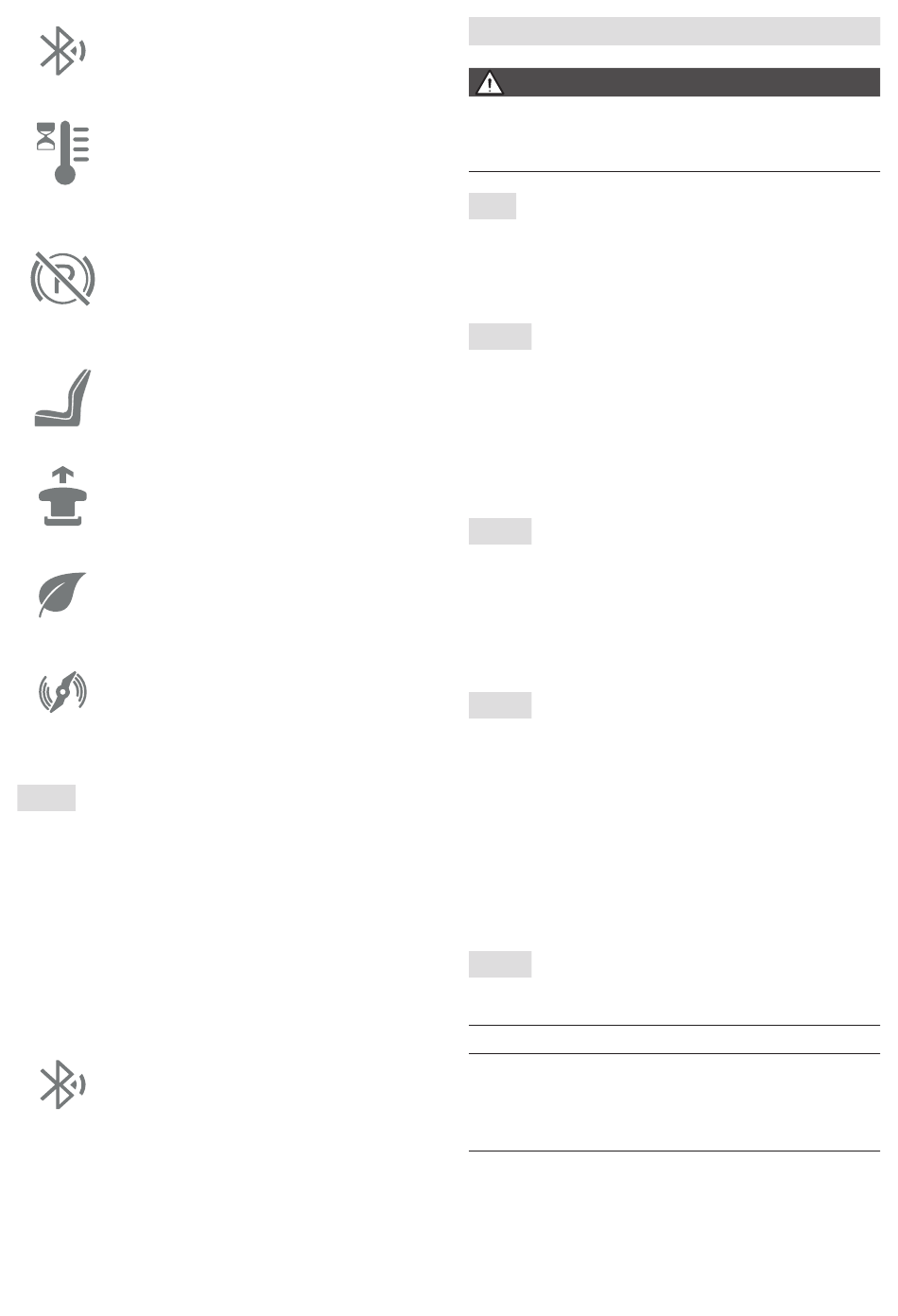

"Bluetooth" icon
The icon in fig. 7.M is illuminated
when the machine and the data
exchange device are connected.
Controller and/or motor
over-temperature icon
The icon in fig. 7.N indicates
overheating of electrical
components. See chap. 15.
Transmission engagement /
disengagement lever icon
The icon in fig. 7.O is illuminated
when the transmission is not
engaged (see par. 6.3 and chap. 15).
Operator on-board icon
The icon in fig. 7.P is illuminated
when operator leaves the
driving seat (see par. 7.2.2).
Emergency pushbutton icon
The icon in fig. 7.Q is illuminated
if the emergency button is
activated (see par. 6.5).
ECO icon
The icon in fig. 7.J is
illuminated when the ECO
mowing mode is selected.
TURBO icon
The icon in fig. 7.J is illuminated
when the TURBO mowing
mode is selected.

BLUETOOTH FUNCTION

6.9
The Bluetooth function provides short-
distance direct wireless connection between
the machine and another device.
The specific data exchange App
must be installed on the device:
1. download the App using the QR
Code shown in fig. 37.
2. follow the instructions.
The bluetooth connection is
activated automatically when
the machine is started and
successful connection with the
device is confirmed when the
icon in fig. 7.M is illuminated.
Make sure that the connection with
the device/App is active.

7. USING THE MACHINE

WARNING
The safety regulations to be followed are
described in chapter 2. Strictly comply with these
instructions to avoid serious risks or hazards.
PRELIMINARY OPERATIONS
7.1
Before starting to mow, it is necessary to carry
out several checks and operations to ensure you
can work efficiently and in maximum safety.

7.1.1 Battery check

Charge the batteries fully before
using the machine for the first time
after purchase (chap. 8.2.2).
Always check the battery charge status
before using the machine (Fig. 7.F).

7.1.2 Seat adjustment

To change the position of the seat, loosen
the four fixing screws (fig. 10.A) and slide
the seat along the slots on the support.
When the required position is found, fully
tighten the four screws (fig. 10.A).

7.1.3 Tyre pressure

Having the right tyre pressure is the main
condition for ensuring that the cutting means
assembly is horizontal and mows evenly.
1. Unscrew the protective caps
2. Connect a compressed air line with
a gauge to the valves (fig. 11)
3. Adjust the pressure according to the values
indicated in the "Technical Data" chart.
7.1.4 Preparing the machine
before starting work
NOTE
This machine can be used to mow lawns
in a number of different ways; before
starting, prepare the machine based
on how the lawn is to be mowed.
EN - 15
