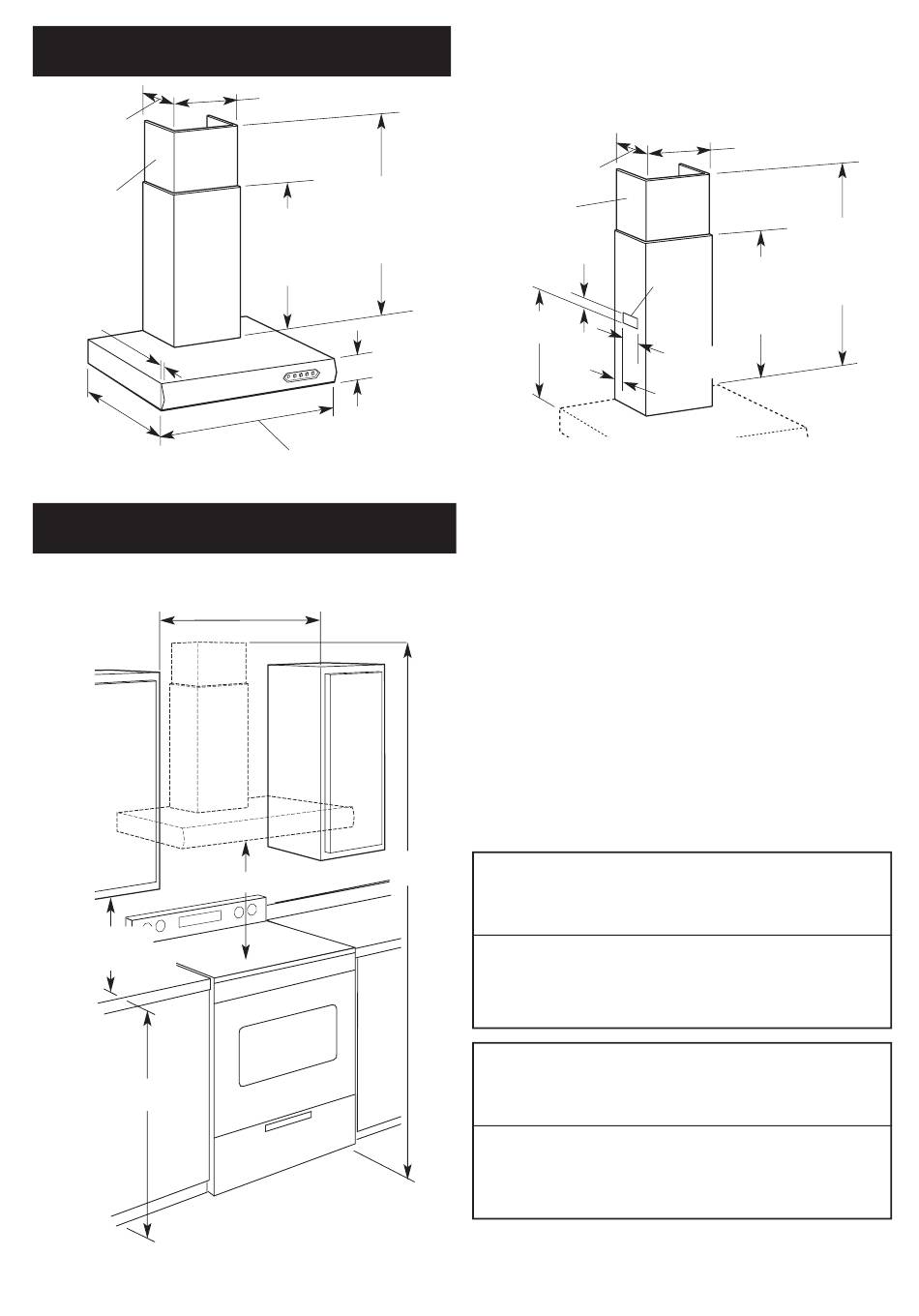

Product dimensions

10-1/4"
(26.0 cm)
upper
chimney
3/8"
(9.5 mm)
19-1/4"
(48.9 cm)
30" (76.2 cm) model: 29-15/16" (76.0 cm)
36" (91.4 cm) model: 35-3/8" (89.9 cm)

Cabinet dimensions

30" (76.2 cm) or 36" (91.4 cm)
cabinet opening width
(if installed between cabinets)
18" (45.7 cm) min.
clearance upper
cabinet to countertop
36" (91.4 cm)
countertop height
4
All manuals and user guides at all-guides.com
11-13/16"
(30.0 cm)
25-5/8" (65.1 cm)
min.
37-1/4" (94.6 cm)
21-1/4"
max.
(54.0 cm)
overall chimney
lower
height
chimney
height
4-3/4"
(12.1 cm)
See
Note
X
Non-vented (recirculating)
Kit Nos. 8285505 and 8285506
chimney dimensions
10-1/4"
(26.0 cm)
upper
chimney
3-9/16"
(9.1 cm)
14-5/8"
(37.1 cm)
2-7/16"
(6.2 cm)
Note: The hood chimneys are adjustable and designed to meet
varying ceiling or soffit heights depending on the distance "X"
between the bottom of the hood and the cooking surface. For higher
ceilings, 40" (10.2 cm) chimney extension Kit No. 8285600 or Kit No.
8285601 is available. See page 2. The chimney extension replaces the
upper chimney shipped with the hood. The chimney extension can be
cut as needed. For shorter ceilings or soffits, the upper chimney can
be cut.
Important:
Minimum distance "X": 24" (61.0 cm)
Suggested maximum distance "X": 30" (76.2 cm)
As shown in charts below:
For vented installations, the chimneys can be adjusted for ceilings
between 7' 6-3/8" (2.30 m) and 9' 0" (2.74 m)
For non-vented (recirculating) installations, the chimneys can be
adjusted for ceilings between 8' 3-3/8" (2.45 m) and 9' 5-1/4" (2.88 m).
Vented installations
min. and max. ceiling or soffit height examples
distance from hood
to cooking surface (X)
24" (61.0 cm) 7' 6-3/8" (2.30 m)
26" (66.0 cm) 7' 8-3/8" (2.35 m)
28" (71.1 cm) 7' 10-3/8" (2.40 m)
30" (76.2 cm) 8' 3/8" (2.45 m)
Non-vented (recirculating) installations
min. and max. ceiling or soffit height examples
distance from hood
to cooking surface (X)
24" (61.0 cm) 8' 3-3/8" (2.52 m)
26" (66.0 cm) 8' 5-3/8" (2.57 m)
28" (71.1 cm) 8' 7-3/8" (2.63 m)
30" (76.2 cm) 8' 9-3/8" (2.68 m)
Important: As hood height (distance X) increases, hood's
venting effectiveness decreases.
11-13/16"
(30.0 cm)
34-5/8" (87.9 cm)
42-1/2" (108.0 cm)
vent
26-3/4"
opening
(67.9 cm) overall chimney
on each
lower
side
chimney
height
5-5/16"
(13.5 cm)
.
minimum maximum
8' 6" (2.59 m)
8' 8" (2.64 m)
8' 10" (2.69 m)
9' 0" (2.74 m)
minimum maximum
8' 11-1/4" (2.72 m)
9' 1-1/4" (2.77 m)
9' 3-1/4" (2.83 m)
9' 5-1/4" (2.88 m)
min.
max.
height
