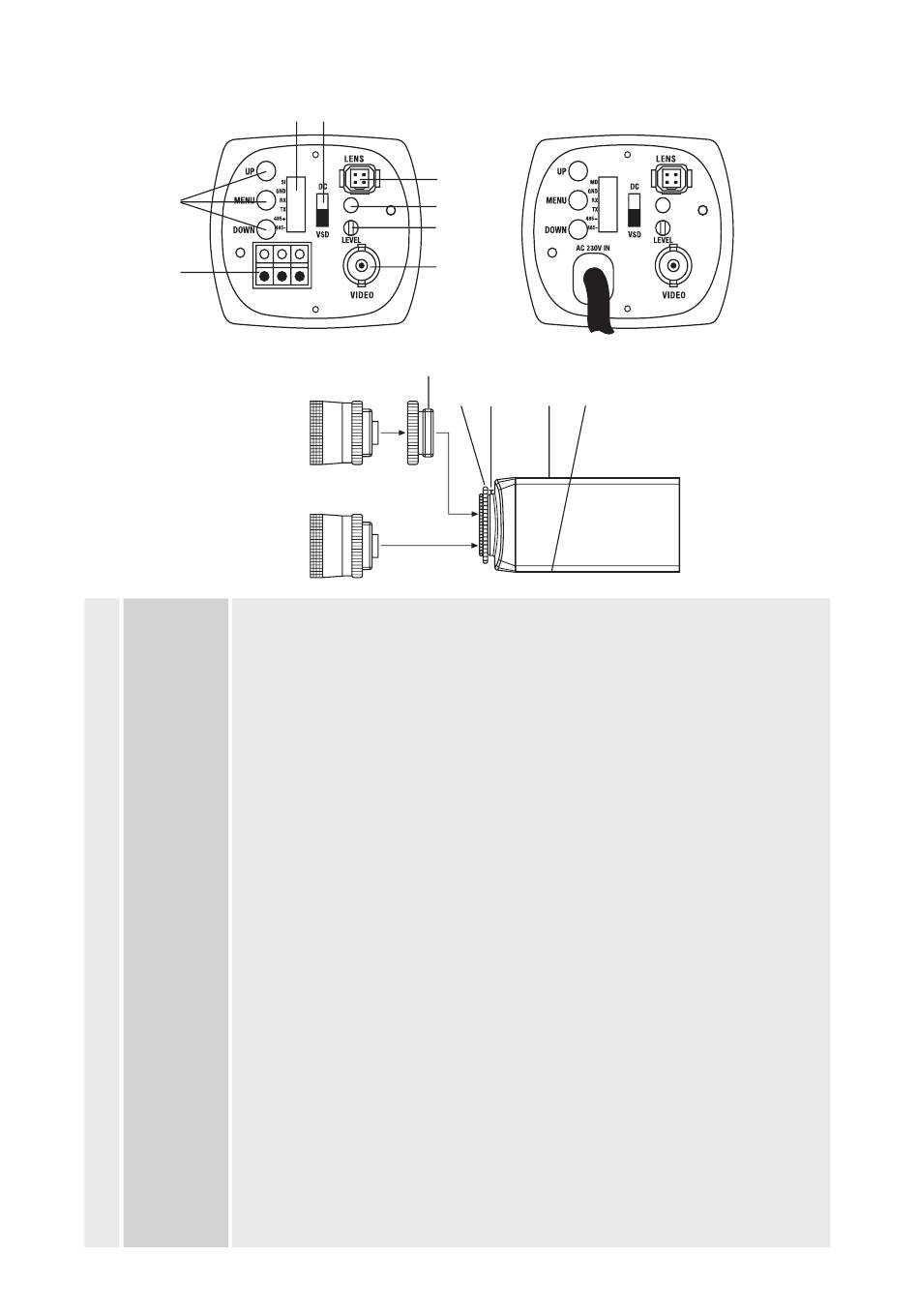

3. Connection and Operating

VKC-1330IR12-24
F
C
C mount lens
CS mount lens
Note Power up unit and other components only after all connections are made.
A LED-indicator A lights green when the camera is switched on.
PL
B DC/VSD The auto iris switch B allows the user to select the supplied auto-iris control signal for the
lens. Position the switch B toward the front of the camera to choose DC when the auto-iris
control lens requires DC control signal. Position the switch B toward the back of the camera
to choose Video when the auto-iris control lens requires video signal.
C Power supply This terminal accepts a 12VDC or 24VAC power source from a 12VDC or 24VAC ± 10%
60/50Hz ± 1Hz power supply, resp. power cable at the VKC-1330/IR. (See 4. Pinout)
D
LEVEL This control allows the user to adjust the level of the auto iris when the A/I lens selection
switch B is set to DC and a DC lens is mounted on the camera. The switch should be in the
DC position when an auto iris video lens is mounted on the camera. If a video auto-iris
lens is used, this control D has no function (switcher to video position).
E LENS Connection E for DC- voltage or videosignal controlled lenses. Connect the cable of lenses
with automatic iris control to the supplied 4 pin DIN plug.
F
UP, Menu, Press the „Menu" button to select function. After User selected function with up, down button.
DOWN The function can be available or changeble (OSD is blinked) by pressing Menu (Enter) button.
Up Button: Press the „Up" button to move up OSD cursor.
Down Button: Press the „Down" button to move down OSD cursor.
G Video output G (BNC) for connection of external units (e.g. monitor, 75ohms).
VIDEO
HO, Camera mount 1/4"-20UNC-thread HO/HU for camera mounting, for example on a tripod, ceiling mount or
HU
P&T head.
K,L C/CS mount CS mount L for CS mount lenses. Insert the supplied C mount ring K if C mount lenses
are used.
M Allows the user to secure the backfocus setting. To adjust the backfocus open screw M,
Fixing screw
turn at CS mount ring L until the focus maximum is achieved and fasten the screw again.
N 6 PIN Connector for control interface and day/night switch
All manuals and user guides at all-guides.com
N B
E
A
D
G
K
L
18
VKC-1330/IR (230VAC)
M HO HU
