Fireplace Installation (continued)
!
NOTE: It is recommended
that the bottom of the unit
be mounted between 30 in.
(76.2 cm) and 40 in. (101.6 cm)
from the ground to maintain an
optimized viewing angle of the
flame.
WARNING: Do not attempt
to wire your own new circuits.
To reduce the risk of fire,
electric shock or injury to
persons, always use a licensed
electrician.
WARNING: Make sure the
circuit on which the fireplace is
to be installed has the power
cut off at the service panel until
installation is complete.
2. The unit is provided with an
installed ¾ in. (2.0 cm) trim.
Depending on the installation,
this trim can be removed by
removing the securing screws
and the 4 trim pieces.
3. Ensuring a minimum of 18 in.
(46.7 cm) of slack, route the
supply power wire through a
cable clamp (not included) and
in the opening in the back of the
unit. (Figure 4)
www.dimplex.com

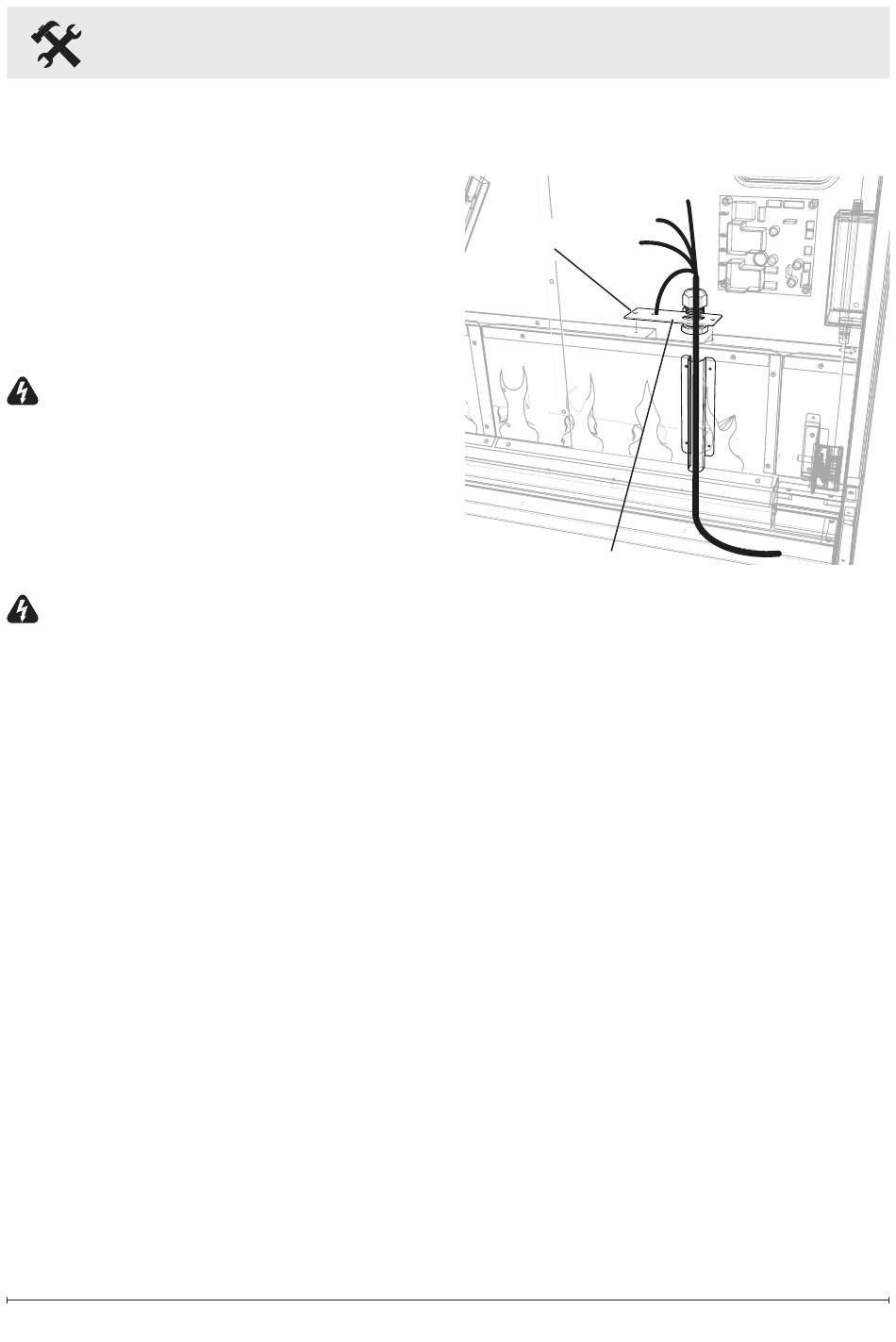

Figure 4
Grounding
Screw
Cable Clamp
4. Lift fireplace, from the bottom
and the handles located on the
back, and insert into opening to
the desired depth.
5. Using a bubble level (supplied)
ensure that the fireplace is level
within the framing. Adjust as
required.
6. Drive four supplied mounting
screws through the four
mounting holes located on the
inside surface of the fireplace
chassis, into wall studs
(Figure 5).
