Technical Parameters For Wireless Detectors - Samba DSD EVOLU 7 Line Guide D'utilisation

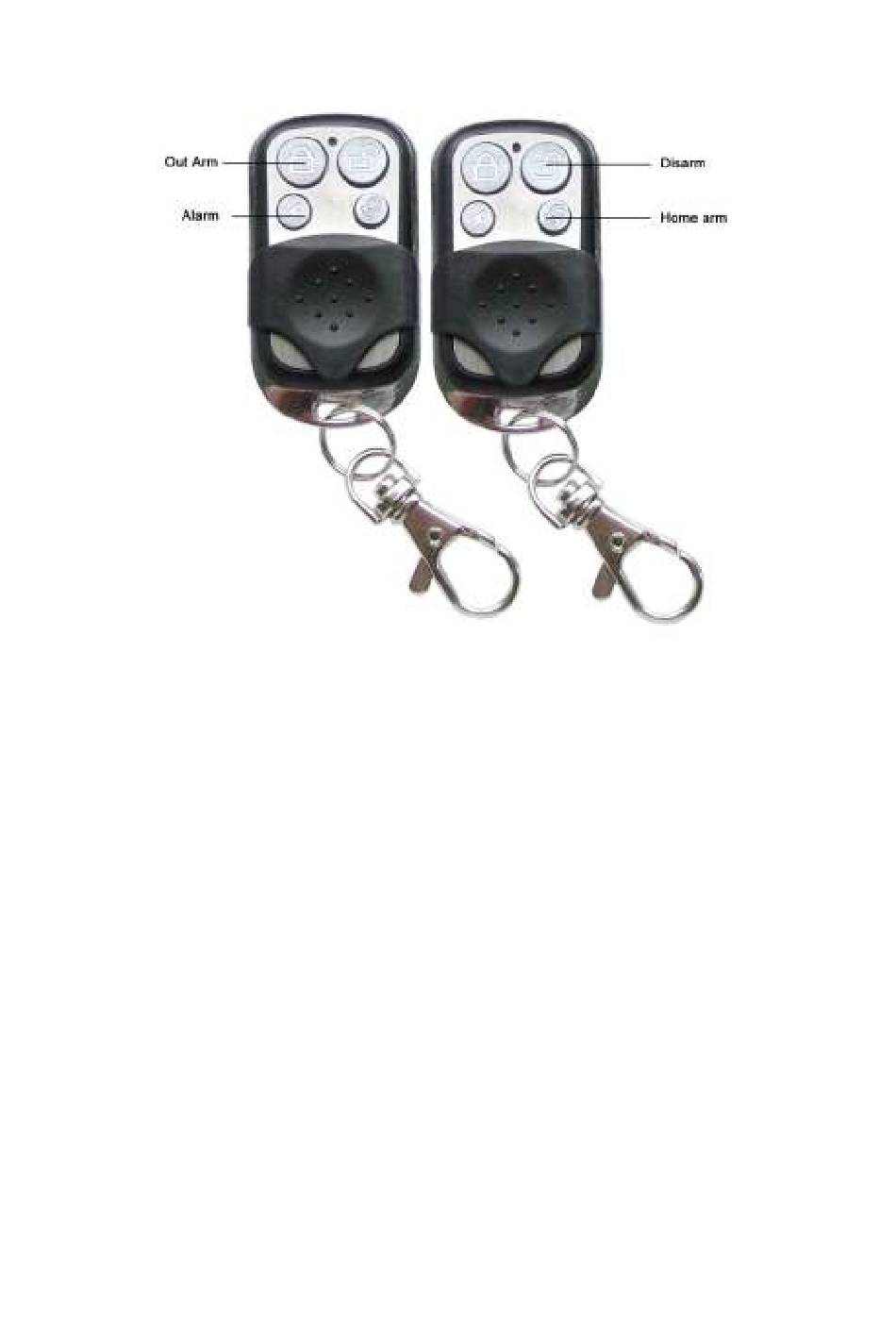

a.When press Arm away Button, out LED on the panel blinks about 25s, then
armed (delay arm) with a "Di" beep. Pressing arm away followed by panic button
immediately would get into arm status at once (instant arm).
b. Pressing Arm at home button , home LED on the panel blinks about 25s, then
armed at home with a "Di" beep. Pressing arm at home followed by panic button
immediately, the system is armed at home at once. Only the detectors coded in
Arm at home mode will it make alarm when activated, others not.
c. Users can press panic button to ask for help in emergency at any time.
d. Pressing disarm button would release and cancel the alarm.

5.Technical parameters for wireless detectors

1) Wireless door/window magnetic sensor
Power supply:
Static Current:
Transmission Current:
Transmission Frequency:
Transmission Time:
Transmission Distance:
Working Condition:
Humidity:
23A DC12V dry battery
I1≤15μA
I2≤15mA
433.92 ±0.2MHz/ 315MHz if specified
T≥1S
No Obstacle≥80m；
-10℃～+40℃
≤90%
