Reco-Boxx ZXR / ZXA / Flat – Instructions d'installation [ 03/ 2022 ]

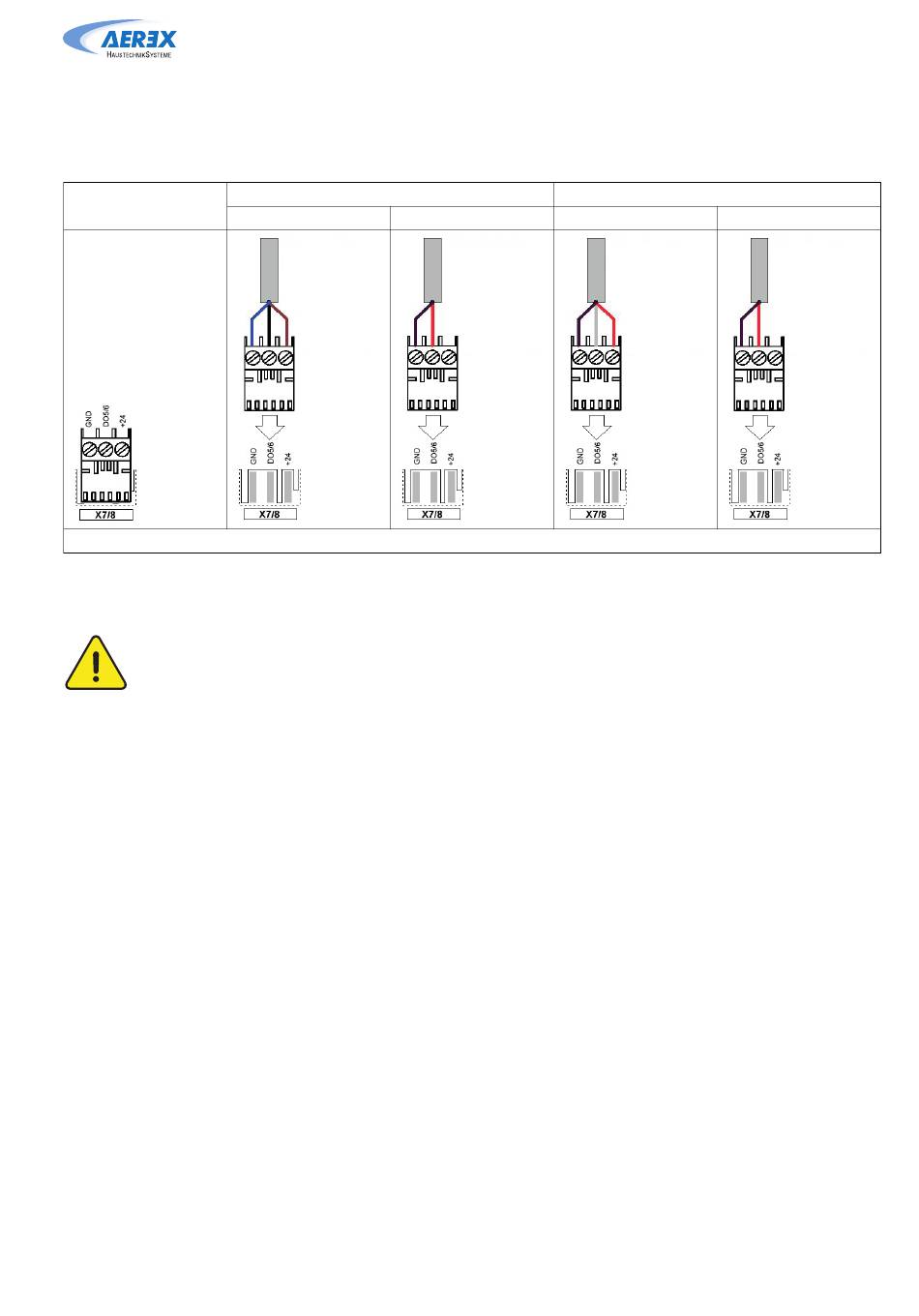

ANSCHLUSS VON AUSSEN- UND FORTLUFTKLAPPEN
Raccordement électrique des volets d'air extérieur et d'évacuation
Without flap drive
(SMO)
Screw connector
set by default on
control bard
(XLEM 005461)
SMO1 = Servo motor ON/OFF without spring return
SMO2 = Servo motor with spring return
Remarquer:
Utilisez uniquement des actionneurs de volet avec une tension nominale de 24 V DC !
30
Reco-Boxx <= 3200 ZXR & all Flat-H /OUT
SMO1 (ON/OFF) 5Nm
SMO2 (Spring return) 4Nm
1 (Blue) = GND
2 (Brown) = +24 VDC
3 (Black) = DO5/6
Screw connector
(XLEM 005461)
X7 = Damper 1 (Exhaust)
SMO1 (ON/OFF) 10Nm
1 (Black) = GND
1 (Blue) = GND
2 (Red) = DO5/6
2 (Brown) = +24 VDC
3 (Black) = DO5/6
Screw connector
(XLEM 005461)
X8 = Damper 2 (Supply)
Reco-Boxx >= 4700 ZXR & 3700 ZXA
SMO2 (Spring return) 10Nm
1 (Black) = GND
2 (Red) = DO5/6
Screw connector
Screw connector
(XLEM 005461)
Installationsanleitung – GLOBAL-Lüftungsgeräte
www.aerex.de
(XLEM 005461)
31
