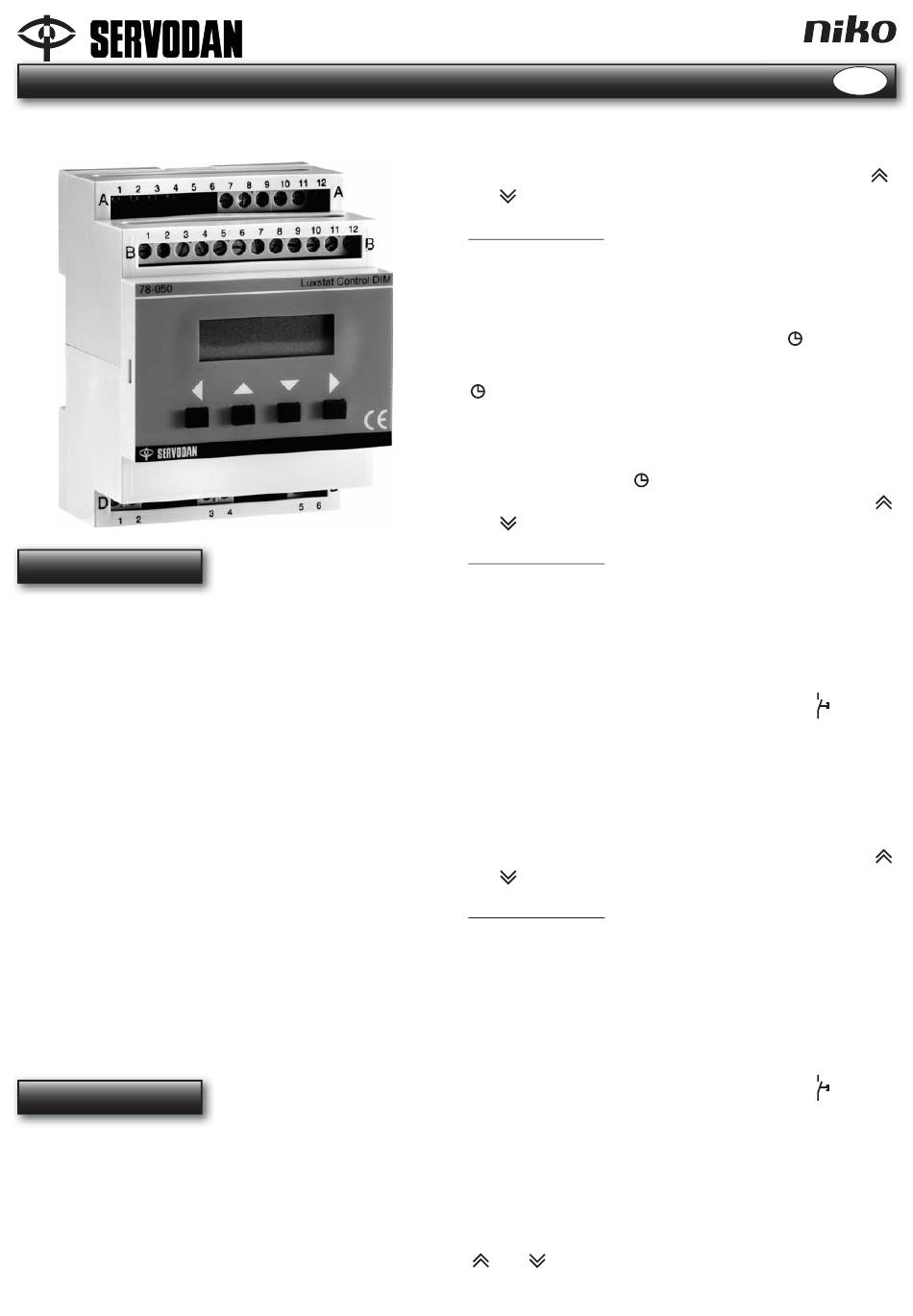

User guide
Luxstat Control, DIM 1-10 V 78-050
Operation
Luxstat Control controls all low current signals, input and output.
Luxstat Control is designed for fi tting in boards on DIN rails.
1-10 V dimmable HF control gears are connected directly to Luxstat
Control.
A 78-983 power pack is used as the voltage supply (SELV) for
the Luxstat Control, and to control output.
The power pack is designed for fi tting in boards on DIN rails.
The Luxstat Control is pre-programmed for several standard
applications.
When Luxstat Control is connected to light sensors of the 43-197
type and a motion sensor, if the motion sensor detects activity
and there is a need for light, the factory-set application 10.01 will
switch on the light and then control the light level in relation to
incident daylight.
Areas where lighting control may be of benefi t:
Corridors
Exhibition halls
Offi ce premises
Conference premises
Educational and training premises
Production premises
Canteens
Sports halls
Hotel lounges
Warehouses
Function
App. 10.01 e.g. Corridors (Factory Setting)
3-channel daylight control, automatic on/off via motion sensor.
Function description:
The light switches on when the motion sensor detects activity and
there is a need for light. As long as there is activity, the light will
now be daylight-controlled in 3 channels in accordance with set
parameters. As daylight incidence increases, the light dims in the
premises so that the minimum light level set as required is obtained.
Servodan A/S | Tel +45 7442 4726 | Fax + 45 7442 4035 | info@servodan.dk | www.servodan.com
The light switches off automatically after a preset period, when the
motion sensor does not detect movement in the detection area, or
when a suffi cient light level has been achieved in the room.
Option for manual on/off and dimming via a 4-button switch I/O,
and
.
Optional connection:
Eco switch: Switch by door, 74-593 (terminal ØB2-ØB9).
Clock blackout: Time switch (terminal ØB2-ØB11).
Energy max.: Energy saving contact (terminal ØB2-ØB12).
App. 11.01 e.g. Exhibition premises
3-channel daylight control, controlled via external
Function description:
3-channel daylight control is switched on and off via external
(Time switch). The light will now be daylight-controlled in 3
channels based on the parameters set. As daylight incidence
increases, the light dims in the premises so that the minimum
light level set as required is obtained. The light is switched off
automatically when a suffi cient light level has been achieved in
the room, or via external
Option for manual on/off and dimming via a 4-button switch I/O,
and
.
Optional connection:
Clock blackout: Time switch (terminal ØB2-ØB11).
Energy max.: Energy saving contact (terminal ØB2-ØB12).
App. 12.01 e.g. Offi ces/conference rooms
3 channel daylight control, manual on/off, automatic off via
motion sensor.
Function description:
3-channel daylight control is switched on and off via
As long as the motion sensor detects activity, the light will now
be daylight-controlled in 3 channels in accordance with set
parameters. As daylight incidence increases, the light dims in
the premises so that the minimum light level set as required is
obtained. The light switches off automatically after a preset period,
when the motion sensor does not detect activity in the coverage
area, or when a suffi cient light level has been achieved in the room.
Option for manual on/off and dimming via a 4-button switch I/O,
and
.
Optional connection:
Clock blackout: Time switch (terminal ØB2-ØB11).
Energy max.: Energy saving contact (terminal ØB2-ØB12).
App. 13.01 e.g. Educational and training premises 2-channel
daylight control, 1-channel on/off, manual on/off, automatic off
via motion sensor.
Function description:
General lighting.
2-channel daylight control is switched on and off via
Door). (Ch 1 & 2.) As long as the motion sensor detects activity, the
light will now be daylight-controlled in 2 channels in accordance
with set parameters. As daylight incidence increases, the light dims
in the premises so that the minimum light level set as required is
obtained. The light switches off automatically after a preset period,
when the motion sensor does not detect activity in the detection
area, or when a suffi cient light level has been achieved in the room.
Option for manual on/off and dimming via a 4-button switch I/O,
and
.
78Y050_03_R11_040205KOE1056
78Y050_03_R11_040205KOE1056
(Time switch).
(Time switch).
GB
(74-593).
(74-593
13(26)
