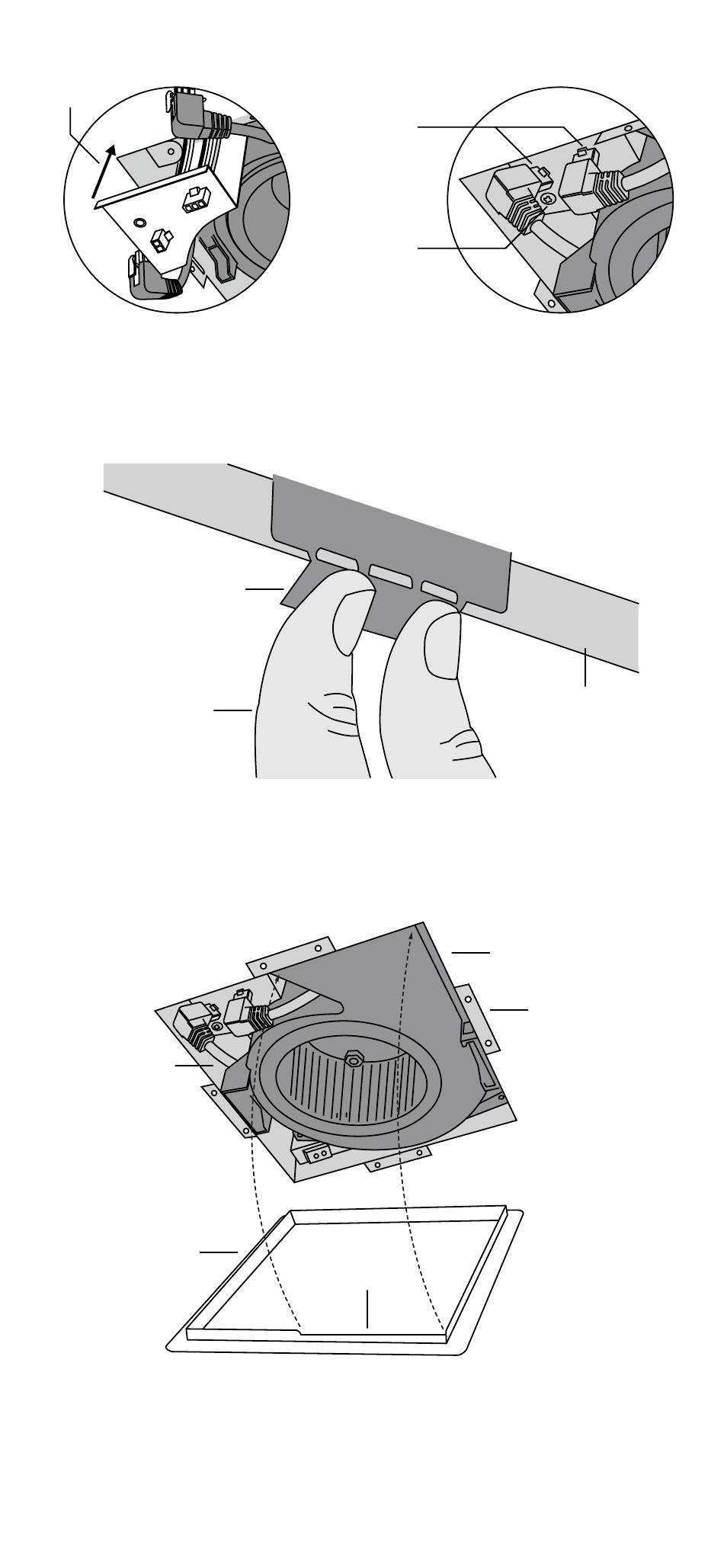

8.) Once connected, reattach the electrical enclosure.
slide
9.) P ress and bend the final securing tabs flat against ceiling to lock the FAN in
place.
final securing tabs
apply even
pressure to
each side of
securing tab
10.) Align TRIM RING notch to vent (DAMPER) position. Attach TRIM RING to
FAN. TRIM RING attaches to FAN body and clicks into place when secure.
FAN
TRIM RING
plug in fan
connectors
reattach
set screw
notch
18
sheetrock
(ceiling)
ceiling
final securing tabs
