Combining (Baying) Enclosures; Equipment Installation - Tripp-Lite SmartRack AG-039A Manuel Du Propriétaire

Enclosure Configuration

Combining (Baying) Enclosures

WARNING: Combining enclosures is not a substitute for stabilizing the enclosures. Each enclosure in a bay of combined enclosures requires
the same stabilizing measures as a standalone enclosure.

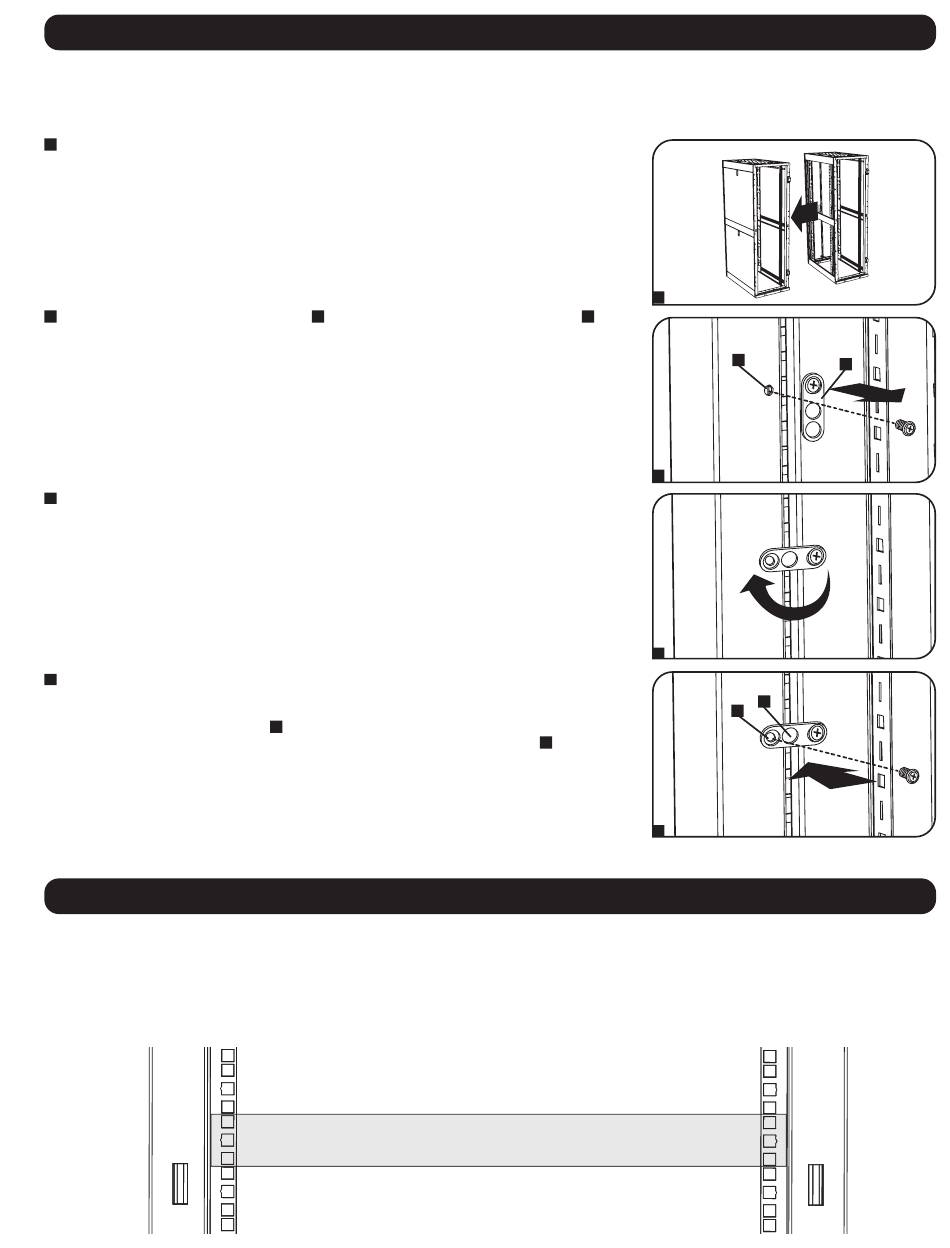

1 Arrange the enclosures in the correct position for baying.
2 Each enclosure includes 4 baying brackets
the adjoining enclosure. The baying connection points already contain screws. Remove the screw
from each baying connection point in the adjoining enclosure.
3 Loosen the screw in each baying bracket and turn each bracket 90 degrees toward the adjoining
enclosure, aligning each bracket with the corresponding baying connection point on the adjoining
enclosure.
4 Connect each bracket to the adjoining enclosure using the screws you removed in step 2, but do
not tighten the screws completely. Adjust the position of the enclosures as needed. If you want the
centers of the enclosures to be 24 inches (61 cm) apart/29.9 inches (76 cm) for the SR42UBWD,
use the outside hole of the bracket
apart/75 cm (29.5 inches) for the SR42UBWD, use the middle hole of the bracket
connecting all brackets and confirming that the enclosures do not need further adjustment, tighten
all screws.
Note: You may wish to remove the doors from the enclosures before combining them. Reinstalling
the doors afterward is optional. Remove the interior side panels before baying enclosures if you
wish to enable access between enclosures.
