WEBTEC SR-PTT CAN Serie Mode D'emploi page 36

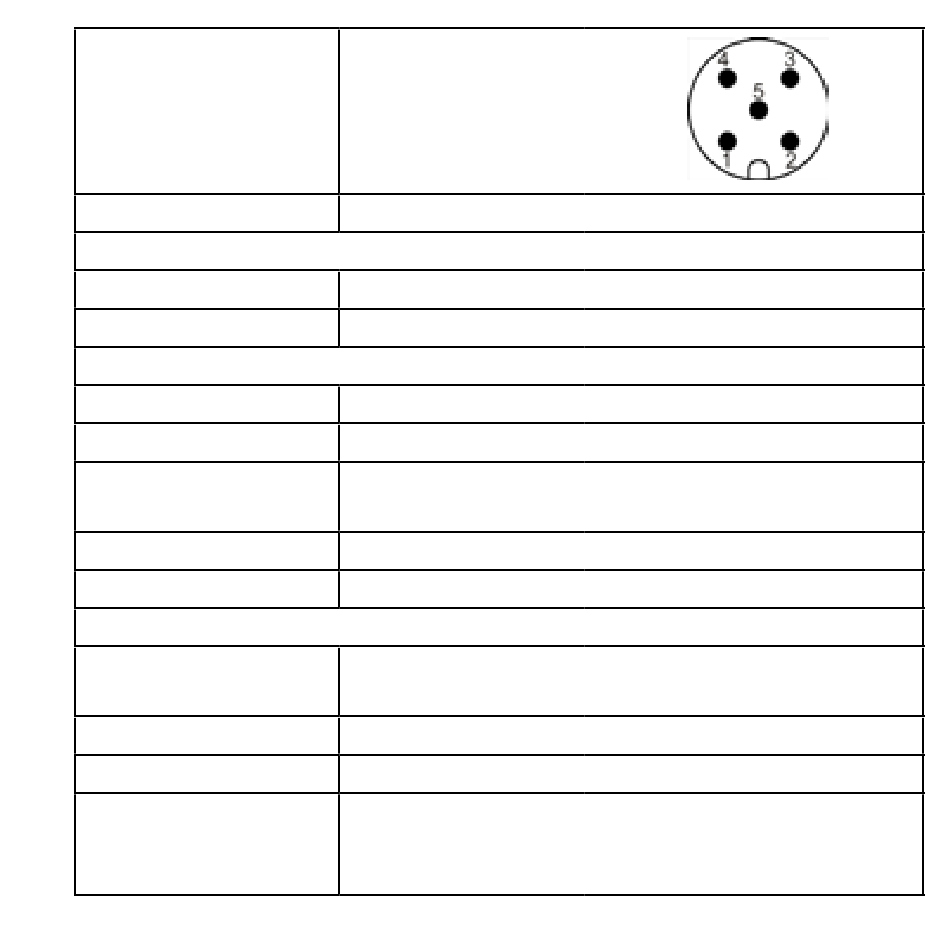

Pin assignments
Pressure connection 1/2" BSPP
Power supply
Power supply
Current consumption 25 mA
Housing
Material
Sealing
Parts in contact with
medium
Dimensions
Weight
Standards
Resistance to inter-
ference
ESD
HF field
Burst
36
Pin 1 = shield
Pin 2 = +Ub
Pin 3 = GND
Pin 4 = CAN H
Pin 5 = CAN L
8 – 40 VDC
Stainless steel 1.4301
Viton (FKM)
®
Stainless steel 1.4301, Viton
95.6 mm x 26.9 mm
approx. 170 g
DIN EN 61000-4-2 4 kV contact / 8 kV air
DIN EN 61000-4-3 10 V/m, 80 MHz – 2.7 GHz
DIN EN 61000-4-4 DC current grid for inputs
at 24 VDC
(FKM)
®
and outputs with 2 kV
capacitive coupling
