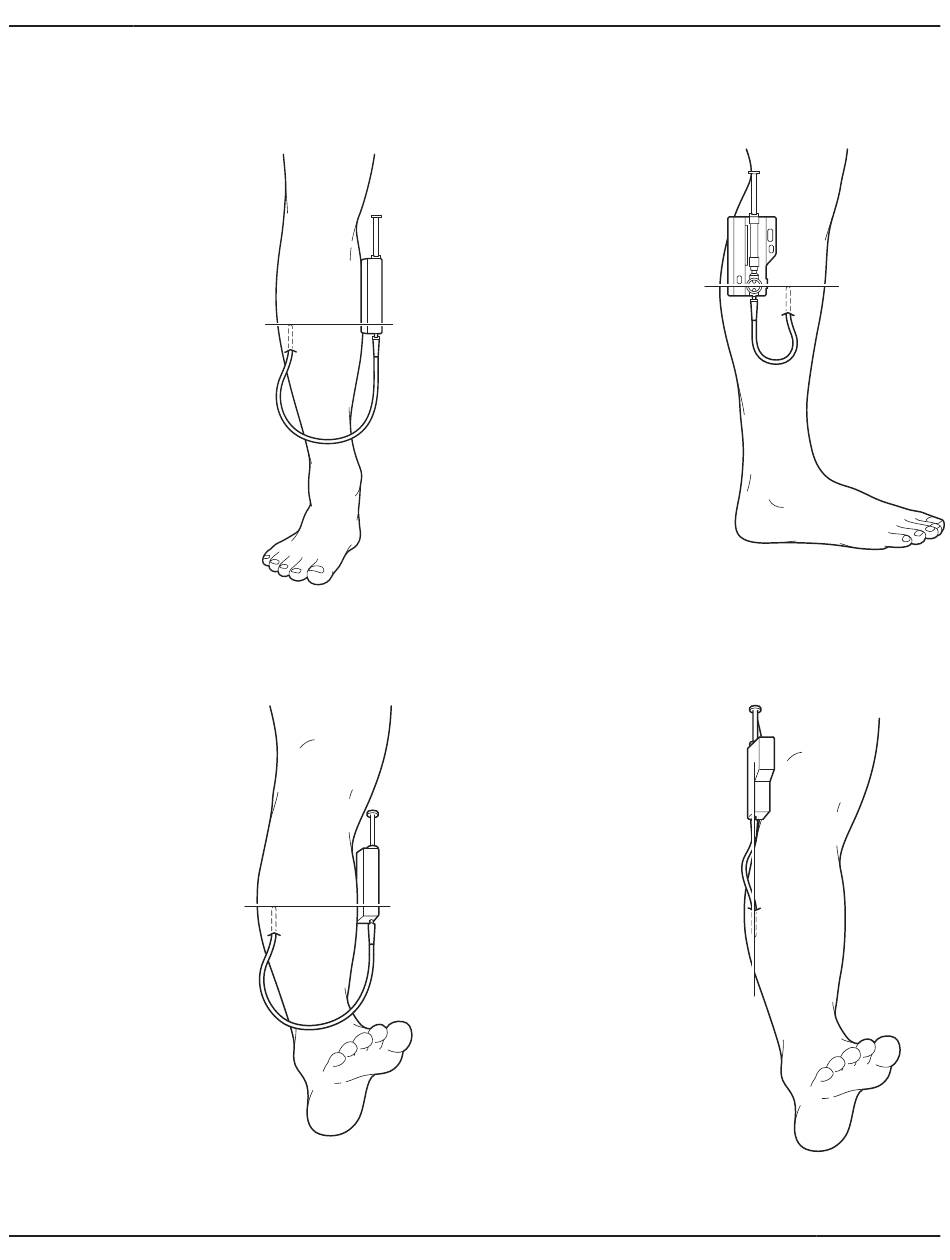

Suggested Set-Up for the Pressure Monitor with Indwelling Slit Catheter Set

Acute and Sports Medicine
Set-Up
NOTE: Optional extension
tubing not shown but may be
necessary.
Patient shown standing.
Acute and Sports Medicine
Set-Up
NOTE: Optional extension
tubing not shown but may be
necessary.
Patient shown lying down.
6
Alternate Sports Medicine
Set-Up Only
NOTE: Do not use this set-up
for a patient lying down.
Patient shown standing.
Alternate Acute Set-Up Only
NOTE: This set-up cannot be
used for a patient standing
up.
Patient shown lying down.
