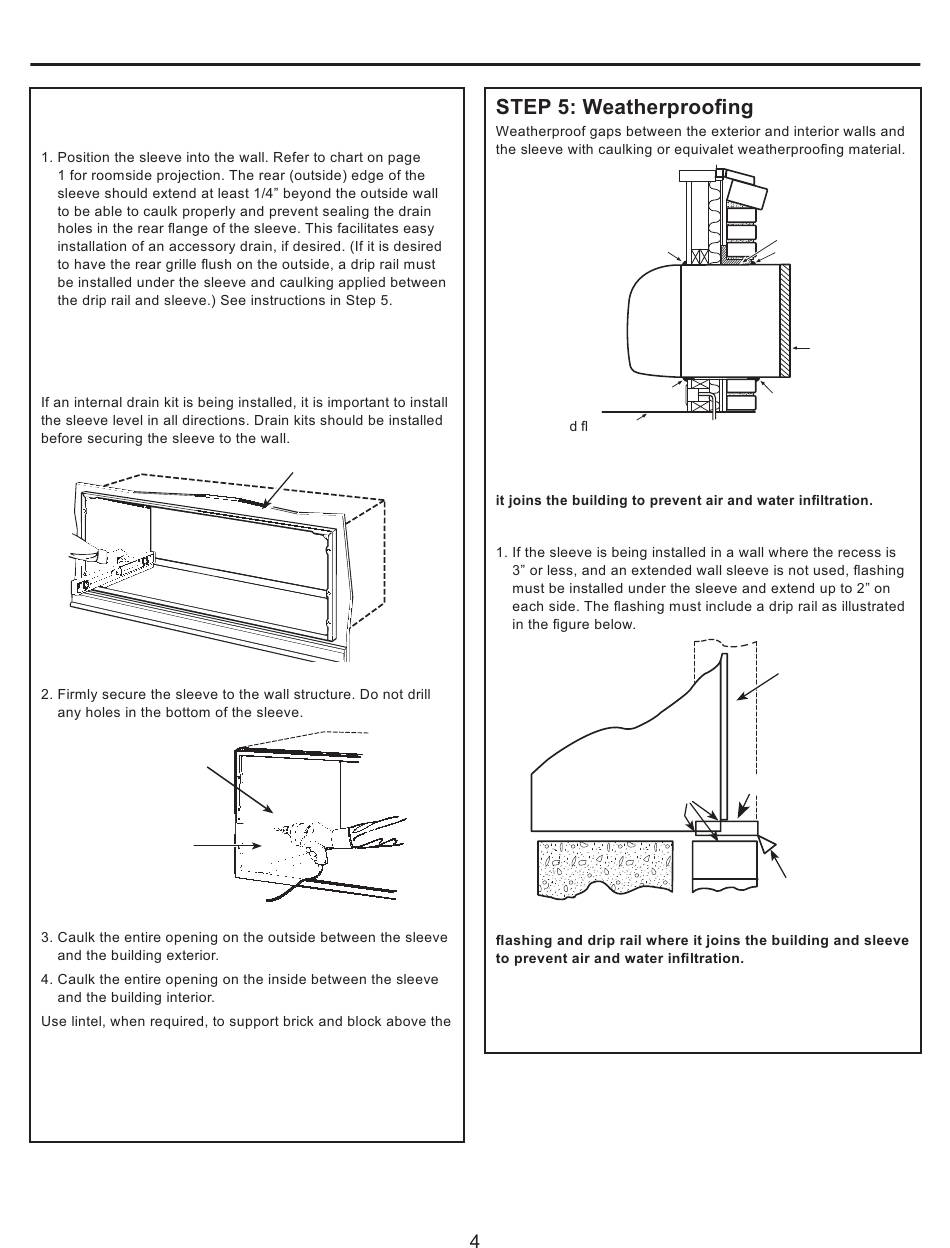

STEP 4: RAB81* Installation of the
sleeve in the wall opening
IMPORTANT:
Install sleeve level from side to side and from front to rear.
Using a level, allowable tilt to the outside is maximum of
1/4 bubble. Never allow sleeve to tilt to the inside.
Secure sleeve through
side and/or top only
2" min. from
sleeve bottom
sleeve.
NOTE: Do not drill any holes in the sleeve for electrical
connections. See the Zoneline Air Conditioner Owner's
Manual for instructions on how to connect the electrical
supply.
Installation Instructions
Inside wall
Caulk*
Room
cabinet
Caulk*
Finishe
oor or top of carpet
NOTE: *It is critical to caulk around the perimeter of the wall
sleeve on all four sides on the outside and roomside where
FOR INSTALLTION IN EXTRA THICK WALLS
Sleeve
Caulk**
NOTE: **It is critical to caulk around the perimeter of the
Steel lintel
Caulk*
Sleeve
Outdoor
grille
Caulk*
Outdoor
grille
Flashing
Drip rail
