Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
TOOLS NEEDED
• 5/16" nut driver
• 1/4" nut driver
PARTS INCLUDED IN KIT
• Deflector (2)
• #8 x 3 / " sheet metal screws (4)
8
• #8 x 1 / " self tapping screws (2)
2

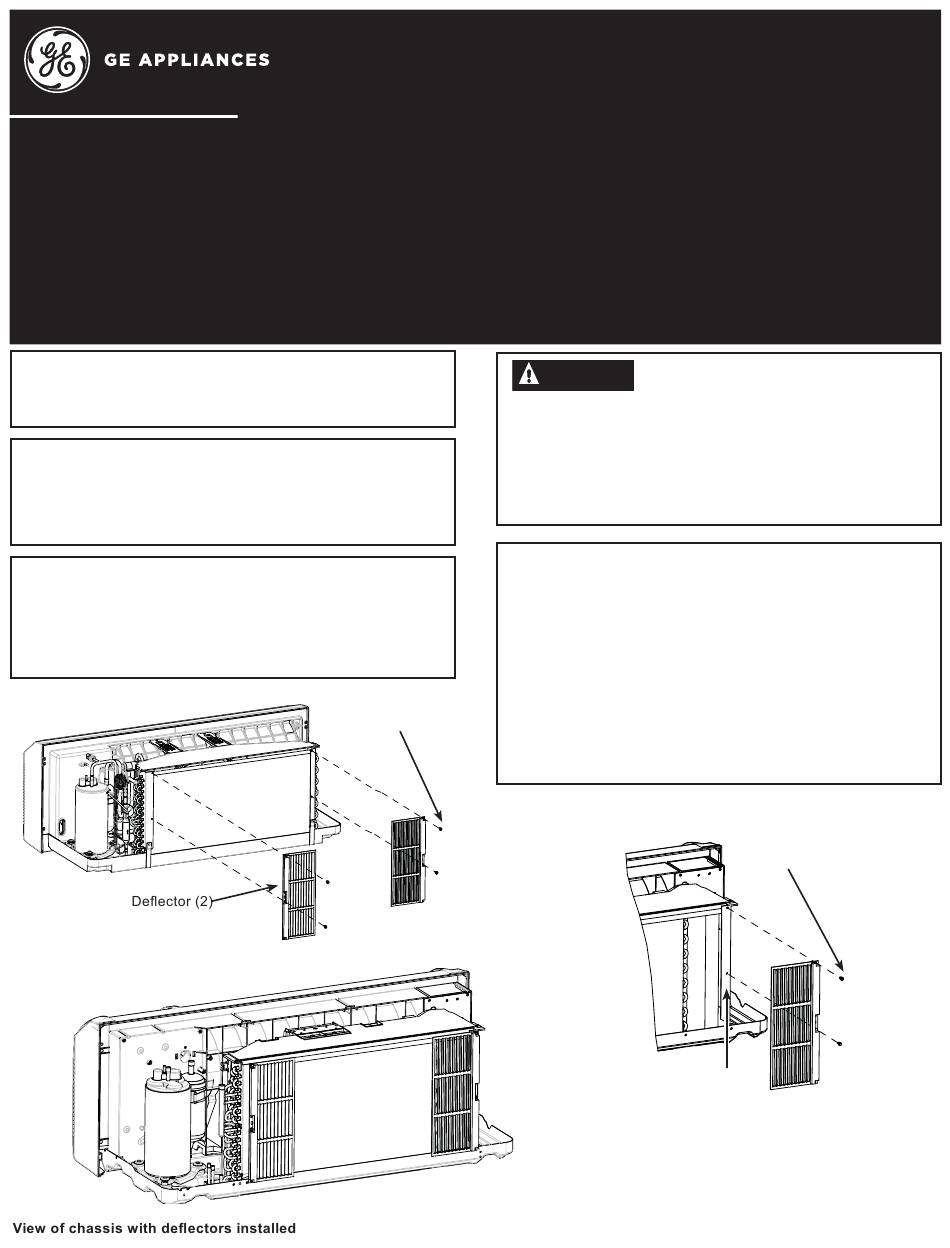

STEP 1A
On models with straight outdoor coils, mount grills as
shown in Figure 1 ensuring the foam gasket is facing
away from the chassis. Install two (2) #8 x
per grill to secure.
Figure 1
Figure 3
Installation Instructions
for your new
RAK40
Anti recirculation deflectors for
Zoneline
3 / " screws
8
#8 x 3 / " screw (4)
8
CAUTION
• Do not use screws longer than 3/8" when mounting
deflector to metal end brackets. Doing so may
damage heat exchanger.
• Only use this Kit when not using a GE grill. If
existing grill has air deflector attached, remove the
deflector before mounting grill.
STEP 1B
• On models with "L" shaped outdoor coils, mount
left hand grill as shown in Figure 1 ensuring the
foam gasket is facing away from the chassis. Install
two (2) #8 x / " screws on sheet metal end of coil
3
8
(left side when looking at the back on unit).
• Mount right hand grill as shown in figure 2 ensuring
the foam gasket is facing away from the chassis.
Install two (2) #8 x 1 / " self taping screws in plastic
2
shroud (right side of unit when looking at the back
on unit) to secure.
Plastic shroud
Figure 2
Pub No. 31-30806-3
#8 x 1 / " screw (2)
2
02-17 GEA
