- Page 1 CKICE OPERATOR'S MANUAL Issue 1 9/09...
-
Page 2: Table Des Matières
CONTENTS PAGE INTRODUCTION BEFORE USE Unpacking SAFETY AND INSTALLATION SÉCURITÉ ET CONSIGNES D'INSTALLATION SICHERHEITS- UND INSTALLATIONSINFORMATIONEN INFORMAZIONI SULLA SICUREZZA E L’INSTALLAZIONE INFORMACIÓN DE SEGURIDAD E INSTALACIÓNl CONTACT INFORMATION SPECIFICATION OPERATION Installation Power up Screen Front Panel Controls Setting the Operating Temperature Changing the Timer Mode Setting the Count Down Time Starting the Timer... -
Page 3: Introduction

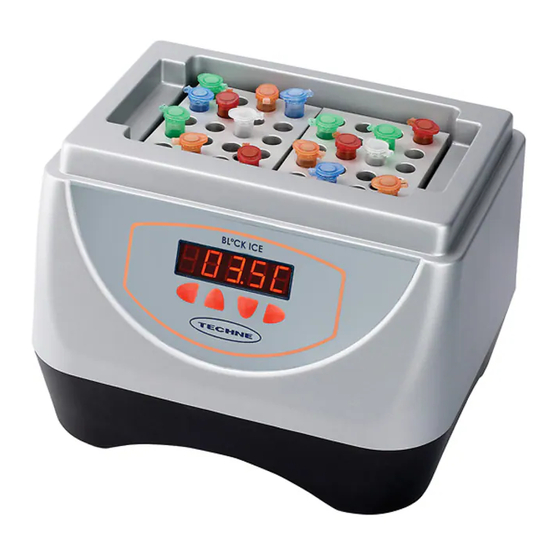

INTRODUCTION The BLºCKICE is a Peltier controlled cooling/warming device which is ideal for incubating sample tubes at temperatures in the range of 0 to 40ºC. The unit has an integral count down/count up timer with audible alarm to set and monitor reaction times. The BLºCKICE can hold two interchangeable aluminium insert blocks or one 96-well plate block for cooling a variety of tube formats. -
Page 4: Before Use
BEFORE USE Before using the BL CKICE please make sure you have read this manual carefully. If there is any doubt relating to the proper use of this equipment, the staff at Bibby Scientifi c Ltd. or your supplier will be happy to assist you. -
Page 5: Safety And Installation
It is important that only suitably trained personnel operate this equipment, in accordance with the instructions contained in this manual and with general safety standards and procedures. If the equipment is used in a manner not specified by Bibby Scientific Ltd. the protection provided by the equipment to the operator may be impaired. - Page 6 6. Plug the mains cable into the socket on the back of the instrument. 7. Switch on the instrument. Symbols on or near the power switch of the unit have the following meanings: Mains Switch On O Mains Switch Off REPLACEMENT CABLE Should the mains lead need replacement, a cable of 1mm of harmonized code H05VV-F connected to an...
-
Page 7: Sécurité Et Consignes D'installation
Dans le cas où cet appareil ne serait pas utilisé selon les consignes précisées par Bibby Scientific Ltd., la protection pour l’utilisateur ne serait alors plus garantie. Tous les appareils Techne sont conçus pour répondre aux normes de sécurité internationales et sont dotés d’un coupe-circuit en cas de surchauffe. - Page 8 5. Placez l’unité sur un banc plat approprié ou dans un compartiment de vapeur s’il y a lieu, en s’assurant que les évents sur l’arrière et le dessous sont exempts de l’obstruction. 6. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil. 7.
-
Page 9: Sicherheits- Und Installationsinformationen
SICHERHEITS- UND INSTALLATIONSINFORMATIONEN Lesen Sie diese Anleitung vor Verwendung des BLºCKICE bitte sorgfältig durch. ACHTUNG Kontakt mit niedrigtemperaturgegenständen kann kalte Brände verursachen. Benutzer sollten die folgenden möglichen Gefahren berücksichtigen: • UMSICHTIG VORGEHEN UND SCHUTZHANDSCHUHE TRAGEN • Flüssigkeiten NICHT direkt auf das Gerät auftragen. SICHERHEIT DES BEDIENPERSONALS Alle Benutzer von Techne Geräten müssen Zugang zu der entsprechenden Literatur haben, um ihre Sicherheit zu gewähren. - Page 10 5. Legen Sie die Maßeinheit auf eine verwendbare flache Bank oder in einen Dampfschrank wenn erforderlich und garantieren, dass die Luftentlüftungsöffnungen auf der Rückseite und der Unterseite vom Hindernis frei sind. 6. Stecken Sie das Netzkabel in die Buchse auf der Geräterückseite ein. 7.
-
Page 11: Informazioni Sulla Sicurezza E L'installazione
Se l’apparecchio è utilizzato in modo non specificato da Bibby Scientific Ltd., la protezione fornita dall’apparecchiatura all’utilizzatore potrebbe essere a rischio. Tutte le unità Techne sono state progettate in conformità ai requisiti internazionali di sicurezza e sono equipaggiate con un interruttore anti surriscaldamento. - Page 12 5. Disponga l’unità su un banco piano adatto o in un armadietto di vapore a richiesta, accertandosi che i cunicoli di ventilazione sulla parte posteriore e sul lato siano esenti dall’ostruzione. 6. Inserire il cavo di rete nella presa che si trova sul retro dello strumento. 7.
-
Page 13: Información De Seguridad E Instalaciónl
INFORMACIÓN DE SEGURIDAD E INSTALACIÓN Lea atentamente este manual antes de utilizar el BLºCKICE. ADVERTENCIA El contacto con los objetos a baja temperatura puede causar quemaduras frías. Los usuarios deben ser conscientes de los peligros potenciales siguientes: • TENGA CUIDADO Y LLEVE GUANTES DE PROTECCIÓN PARA PROTEGERSE LAS MANOS •... - Page 14 6. Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento. 7. Encienda el instrumento: Interruptor de alimentación encendido Interruptor de alimentación apagado CABLE DE REPUESTO Si es necesario sustituir el cable de alimentación, se debe utilizar un cable de 1mm de código armonizado H05VV, conectado a un enchufe IEC320.
-
Page 15: Contact Information
CONTACT INFORMATION For technical, sales or servicing information, contact your local Techne dealer or: North and South America Bibby Scientific Limited Bibby Scientific US Inc. t/a Techne Inc. Beacon Road, Stone 3 Terri Lane, Suite 10 Staffordshire, ST15 0SA Burlington, N.J. 08016... -
Page 16: Specification
SPECIFICATION Temperature Temperature range 0.0 to 40.0°C Temperature accuracy ±1°C Temperature units °C or °F Cooling technology Peltier Temperature display resolution 0.1°C Temperature display Orange LED, 5 digits Timer m/s, h/m, d/h up to 9 days Dimensions Height 225mm Width 240mm Length 190mm... -
Page 17: Operation
OPERATION INSTALLATION See also the sections on Safety and Installation. 1. Place the unit on a suitable flat bench or in a fume cupboard if required, ensuring that the air vents on the rear and underside are free from obstruction. 2. -
Page 18: Setting The Operating Temperature
SETTING THE OPERATING TEMPERATURE Set Point Indicator Set Point Indicator 1. To view the current set temperature, press the SET button. The set CKICE CKICE CKICE CKICE CKICE temperature will be displayed and is indicated by the set point indicator in the top left hand corner of the display. -
Page 19: Setting The Count Down Time
SETTING THE COUNT DOWN TIME The timer can be set to count down time in minutes and seconds, hours and minutes or days and hours up to a maximum of 9 days. Indicator point Indicator point 9. First set the timer to count down mode as described in steps 6 to 8. -
Page 20: Changing The Temperature Units
17. To restart the timer after a pause, press the PLUS button. 18. To stop the timer and reset, press the TIMER button. 19. When the count down timer reaches zero, a buzzer will sound and the timer will begin to count up to indicate the over-run time. -
Page 21: Faqs
96-well block insert. If you require further technical or application assistance please contact Techne at: E-mail: technehelp@bibby-scientifi c.com Phone: +44 (0)1785 810433 Fax: +44 (0)1785 810405 For servicing information please contact: Bibby Scientific Ltd. Service Department Beacon Road Stone Staffordshire ST15 0SA E-mail: service@bibby-scientifi... -
Page 22: Additional Information
ADDITIONAL INFORMATION Note that this equipment should only be dismantled by properly trained personnel. Removing the outer cover exposes potentially lethal mains voltages. There are no user serviceable parts within this equipment. FAULT FINDING Should you have any problems with your BLºCKICE which cannot be easily remedied, you should contact your supplier and return the unit if necessary. -
Page 23: Accessories
ACCESSORIES The following block inserts are available for use with the BL CKICE and can be ordered from Bibby Scientifi c Ltd. or your Techne dealer: Product Tube size (diam.) Number of holes Block dimensions code (mm) F3501 Plain block None 95 x 76 x 51 F3502... -
Page 24: Replacement Parts
REPLACEMENT PARTS The following replacement parts can be obtained from Bibby Scientifi c Ltd. or your Techne dealer: Product Code Description HH179(S) UK 230V mains lead with plug HH180(S) European mains lead with plug FCABLEUS US mains lead with plug 700738 Fuse Type T5A, 250V (5A) - Page 25 Bibby Scientific Italia Srl Bibby Scientific France SAS Via Alcide de Gasperi 56, ZI du Rocher Vert - BP 79 20077 Riozzo di Cerro al Lambro, 77793 Nemours Cedex Milano, Italia France Tel: +39 (0)2 98230679 Tel: +33 1 64 45 13 13...
