Operating Instructions
VC-63CC-PD Vehicle Charger
Item No. 1900461
Intended Use
The product is intended to be used as a USB charger that connects to the power socket in
your vehicle. It has USB type-C
PD and USB type-A fast charging ports that can deliver a
TM
maximum output of 63W. Integrated short circuit and over current protection keeps connected
devices safe during charging. Both ports can be used for charging at the same time.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture must be avoided
under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in other hazards. Read the instructions carefully and store
them in a safe place. Make this product available to third parties only together with its operating
instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery Content
• Car Charger
• USB type-C
cable
TM
• Operating instructions
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety Instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General Information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• For safety reasons, do not use the car adapter during thunder storms.
• Do not make any adjustment on the product when driving or in other situations
where distractions can be hazardous. Responsible and safe driving is your
primary responsibility when operating a vehicle.
• Consult an expert when in doubt about the operation, safety or connection of the
appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.

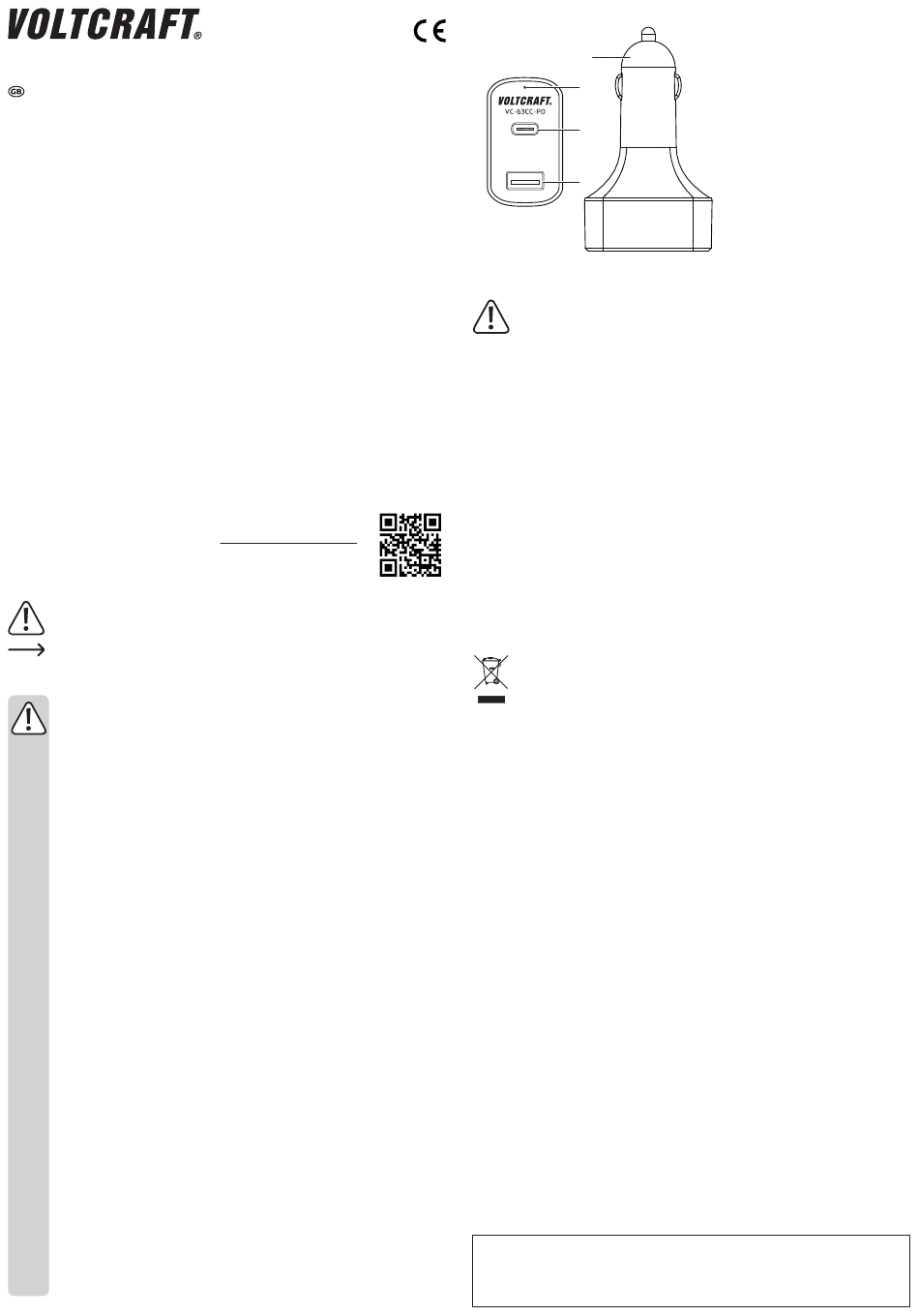

Operating Elements
1
2
3
USB-C PD
Fast Charge
4
Operation
Before using, check the input voltage of the USB type-A / USB type-C
intend to charge. Make sure the total loading does not exceed the rated output of
this USB charger.
For safety and performance reasons, it is recommended to use the included cable
or the cable supplied with your device.
• Insert the power plug (1) into the 12-24V car power socket.
• The charger will receive power after the car ignition switch is turned on.
• The LED power indicator (2) will light blue when the charger is receiving power.
• Connect your device to a charging port (3) or (4).
• Charging will begin automatically, and the connected device will indicate the charging status.
• Unplug the charger from car power socket when not in use.
Care and Cleaning
• Disconnect from the power supply before each cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
• Clean the product with a dry, fibre-free cloth.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product in accordance
with applicable regulatory guidelines. You thus fulfill your statutory obligations and
contribute to the protection of the environment.
Technical Data
Input voltage / current ................... 12 - 24 V/DC, 7 A max.
Output voltage / current ................ USB type-C
max. output 45 W
5, 9, 12, 15 V/DC 3 A
20 V/DC 2.25 A
USB type-A (fast charge)
max. output 18 W
3.6 - 6 V/DC 3 A
6 - 9 V/DC 2 A
9 - 12 V/DC 1.5 A
Output power ................................ max. 63 W (total)
Cable ............................................ USB type-C
LED indicator ................................ Blue
Protection ..................................... Short circuit, over current
Operating conditions ..................... 0 to 35 °C, 10 – 95% RH (non-condensing)
Storage conditions ........................ -10 to 55 °C, 5 – 95% RH (non-condensing)
Dimensions (L x W x H) ................ 79 x 48 x 28 mm
Weight .......................................... 40 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights
including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represent the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE.
1 Power plug
2 LED power indicator
3 USB type-C
PD port
TM
4 USB type-A fast charge port
device you
TM
(power delivery)
TM
2.0 (male to male) approx. 1 m
TM
*1900461_v1_1019_02_dh_m_en
