7.3 Microscope assembling

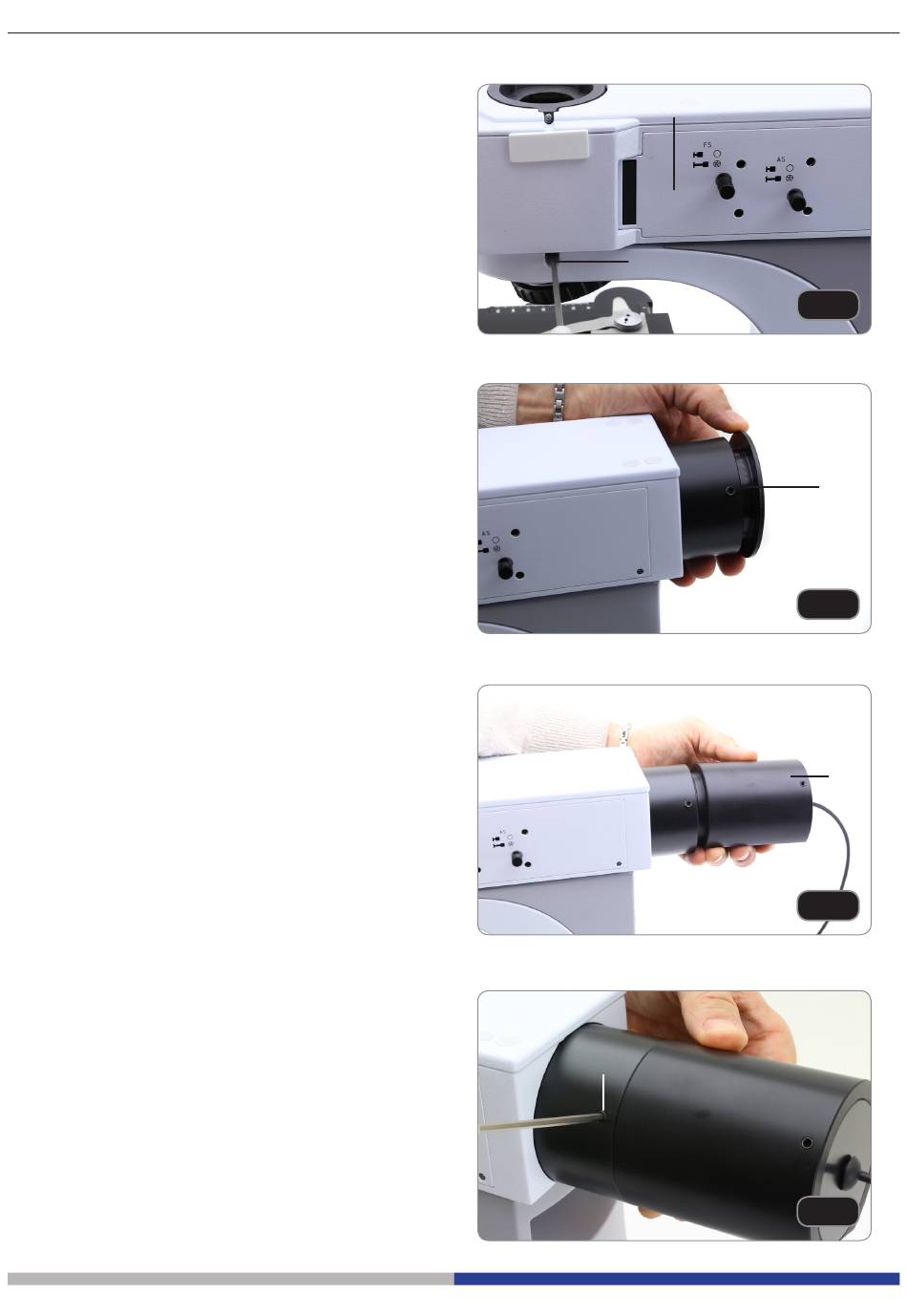

1. Insert the reflected light illuminator ① on the
frame and lock the locking knob ② with the pro-
vided Allen wrench. (Fig. 1)
2. Remove the cover ③ on the back side of the il-
luminator. (Fig. 2)
3. Insert the LED housing ④ and lock the locking
screws ⑤. (Fig. 3-4)
⑤
Page 10
①
②
Fig. 1
③
Fig. 2
④
Fig. 3
Fig. 4
