Section 2

WATER SUPPLY AND DRAIN LINE SIZING/CONNECTIONS

! Caution
Plumbing must conform to state and local codes.
Temperature
Ice Making 0.6°C (33°F) Min.
Water Inlet 32.2°C (90°F) Max.
Ice Making/Bin
Water Drain
1
Min. = Minimum
2
Max. = Maximum
Part Number 040001360 6/14
Water
1
137.9 kPA (20 psi) Min.
2
551.5 kPA (80 psi) Max.
——

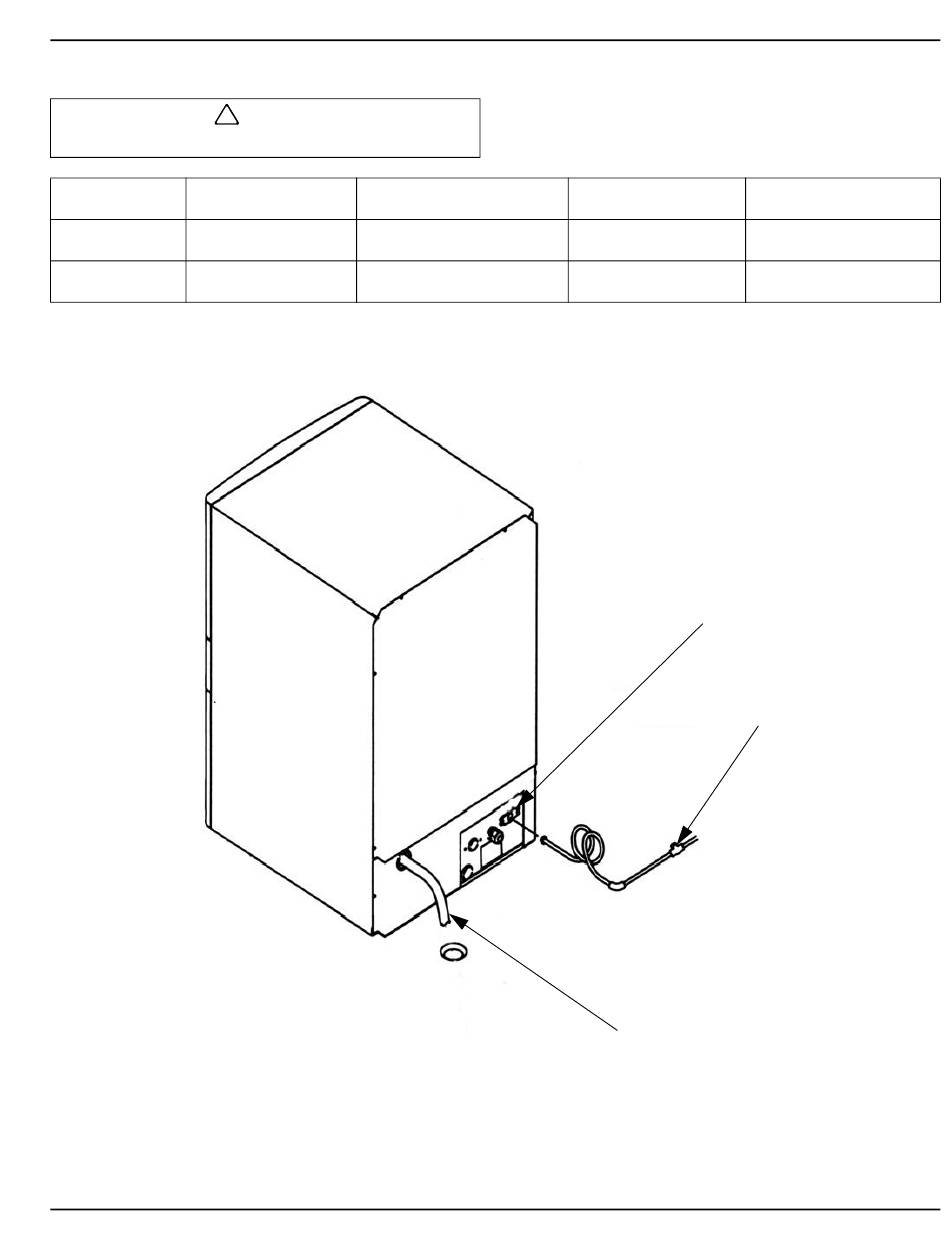

Typical Water Supply and Drain Line Sizing and Connections
Water
Pressure
1
3/8" male hose
2
1.59 cm (5/8") inside
——
diameter flexible hose
ICE MAKING WATER/BIN
DRAIN 1.59 cm (5/8") MIN.I.D.
Installation Instructions
Ice Machine Tubing Size Up to Ice
Fitting Machine Fitting
0.95 cm (3/8") minimum
connection inside diameter
1.59 cm (5/8") minimum
inside diameter
ICE MAKING WATER INLET
TUBING 0.95 cm (3/8") MIN.I.D.
WATER SHUTOFF
VALVE
