Avid Artist DNxIQ Rear Panel

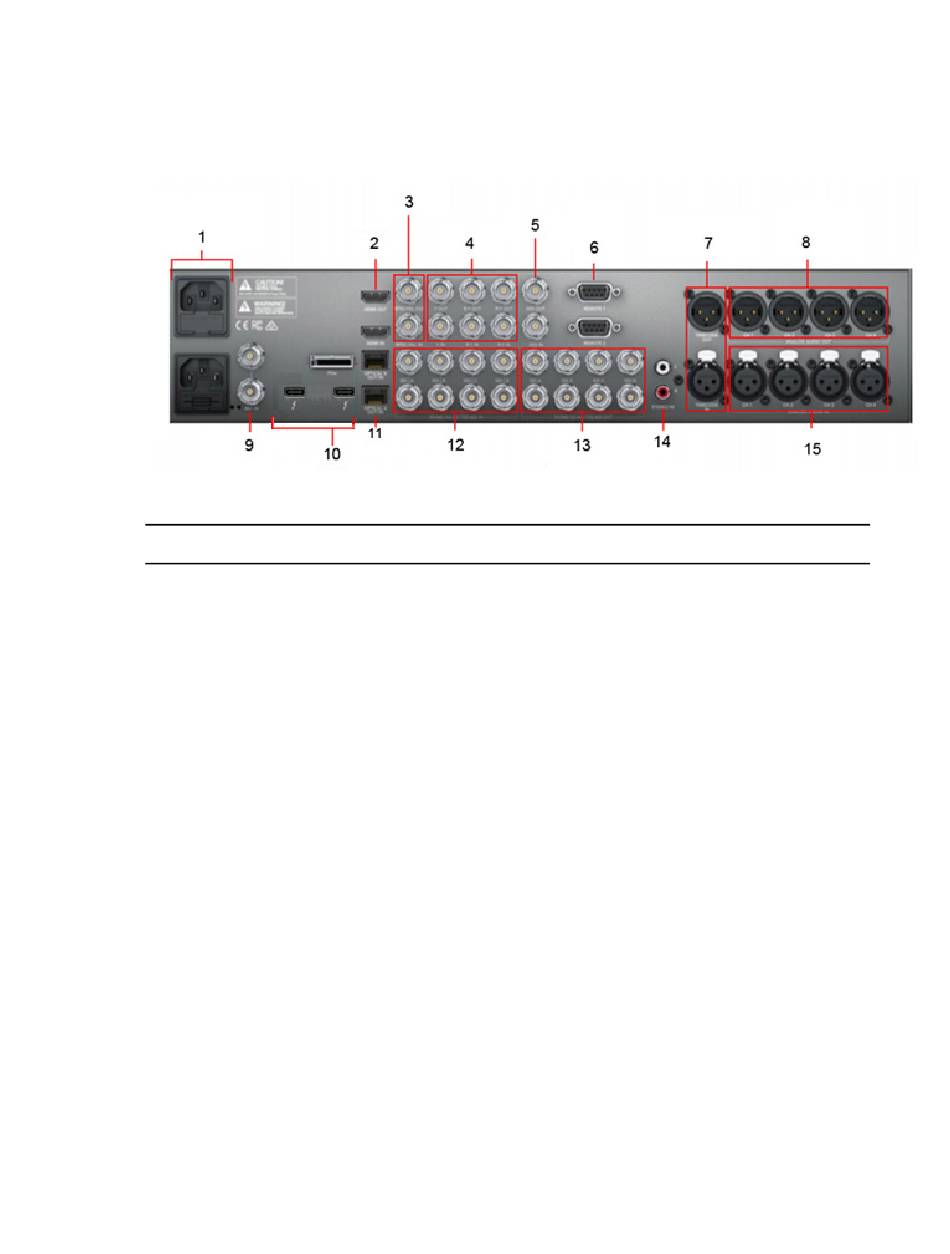

Reference the following when connecting video and audio devices to the Avid Artist DNxIQ Rear
Panel.
Avid DNxIQ Rear Panel
Connection
1 Power supply connections
2 HDMI In/Out
3 Composite Video In/Out
4 Component Video In/Out
5 AES EBU Audio In/Out
6 Remote In/Out
7 Timecode In/Out
8 Analog Audio Out (XLRM)
9 Dual reference inputs
10 High speed computer
connections
11 Dual optical
12 SDI Inputs
Description
2 x built-in international AC power supply with IEC C14 inlet. 120-
240V, 50-60Hz. (Power cables supplied with DNxIQ box.) Connect two
power cords for redundant power.
HDMI 2.0 type A connectors
(IN) one composite NTSC/PAL via one BNC connector (SD)
(OUT) one composite NTSC/PAL via one BNC connector (SD)
(IN) One Component YUV via three BNC connectors (SD—YCbCr;
HD—YCbCr/RGB)
(OUT) One Component YUV via three BNC connectors (SD—YCbCr;
HD—YCbCr/RGB)
2 channels in, 2 channels out
Two Sony-compatible RS-422 deck control ports
One XLR Timecode input, one XLR Timecode output
Four channels of professional balanced analog audio output via XLR
Genlock/Reference Clock (Blackburst or Tri-level), Genlock/Reference
Clock output/pass-through (Blackburst or Tri-level)
PCIe and Thunderbolt 3 (cables sold separately)
2 x 12Gb/s Optical Fiber (Optional)
Two 12 Gb/s and two 3 Gb/s connectors (SD/HD/2K/UHD/4K)—
supports single, dual, and quad link inputs (4:2:2 / 4:4:4); 2D/3D
a
switchable
6
Avid Artist DNxIQ Rear Panel
