GE UXADJB36PSS Instructions D'installation

Installation
Instructions
WARNING
To prevent ignition of combustible
materials, the entire back wall above the range
must be protected by a backsplash constructed of
non-combustible material.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
■
for local inspector's use.
IMPORTANT
■
codes and ordinances.
IMPORTANT
■
material and literature from oven before connecting
gas and electrical supply to range.
■ Note to Installer — Be sure to leave these
instructions with the consumer.
■ Note to Consumer — Keep these instructions with
your Owner's Manual for future reference.
■ This backsplash adjusts to fit the space between the
top of the range and the bottom of the hood, from
30" Min. to 36" Max. height.
■ Maximum shelf load-bearing weight is 40 lbs.
TOOLS AND MATERIALS REQUIRED
■ G loves to protect against sharp edges
■ T -15 and #2 Phillips screwdrivers
■ D rill with 3/32" and 9/64" bits
■ S afety glasses
■ L evel
Top Cover
with Shelf
■ P encil
This Kit Includes
■ T op wall support
■ B ottom wall support
■ T op cover with shelf
■ B ottom cover
31-10692-1 01-18 GEA
— Save these instructions
— Observe all governing
— Remove all packing
Top Wall
Support
Bottom Cover
Bottom Wall Support
UXADJB36PSS, UXADJB48PSS
30" to 36" Adjustable Backsplash
TOOLS AND MATERIALS REQUIRED
(Cont.)
■ H ardware package with
– 9 Stainless Steel Torx 15
#8 self-tapping screws
– 9 Phillips #2 pan head wood #10 screws
– 3 Stainless Steel #2 truss head #10 screws (for
alternate installation method)

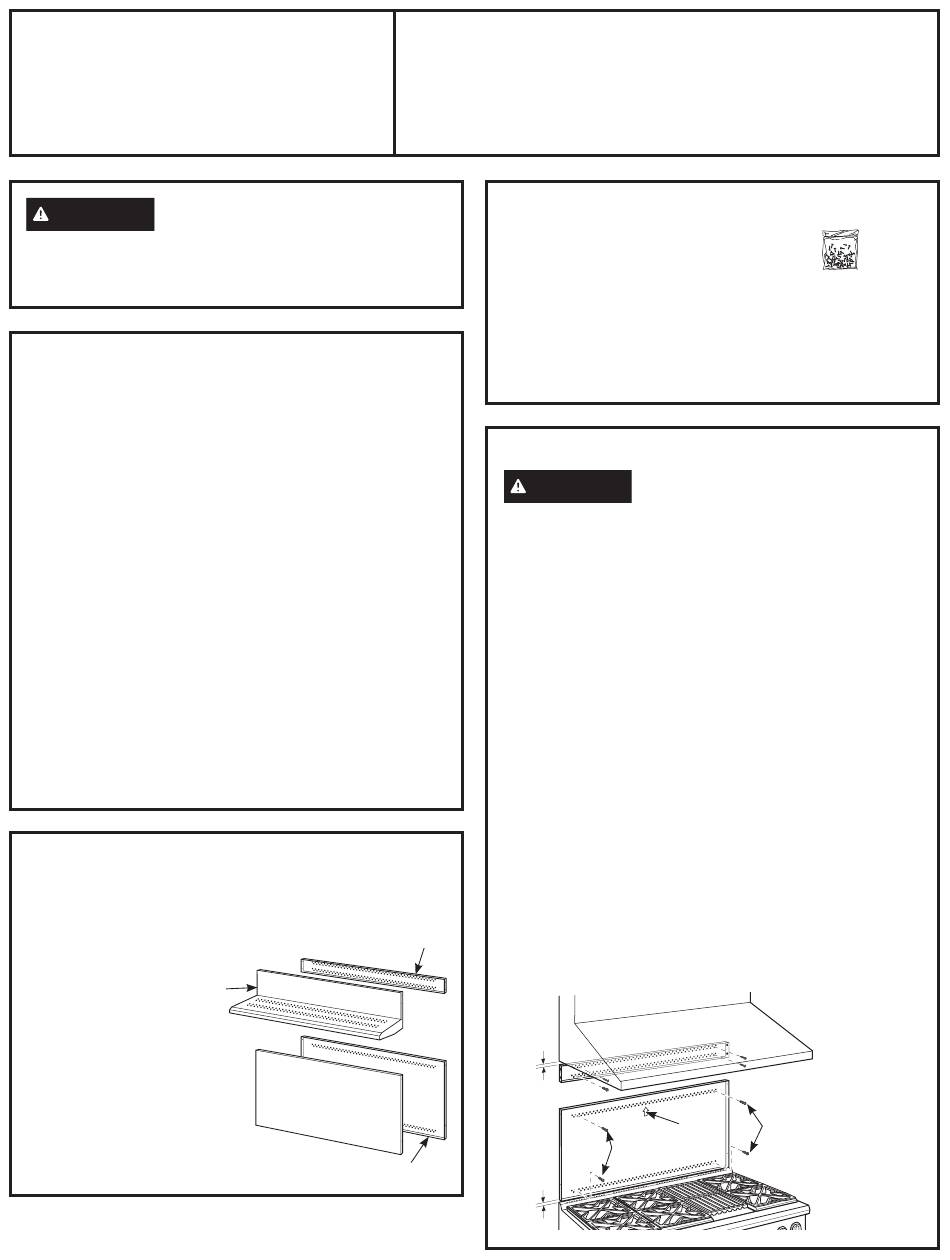

INSTALL THE WALL SUPPORT PANELS
WARNING
securely fastened to the wall. Failure to do so could
result in damage or personal injury.
IMPORTANT: This backsplash is designed to cover
the wall between the bottom of the hood and the top of
the range. The vent hood should be installed over the
rangetop or range before installing this backsplash.
■ I nstall and level the Range/Rangetop according to
the product installation instructions.
■ R emove backsplash packaging and protective film.
■ L ocate wall studs on each side. Where studs are not
available, plan to use wall anchors (not provided).
■ U se a level to pencil 2 horizontal lines on the wall,
one 1/8" below the vent hood and the other 1/8"
above the Range/Rangetop. This 1/8" space allows
the cover panels to overlap the wall supports.
■ S ecure the top wall support panel to the wall with 4
wood screws, through the outermost studs.
■ U se 4 wood screws to secure the bottom wall support
panel. The center slot should be positioned at the top.
The gap between the top and bottom support panels
will be covered by the top cover with shelf.
1/8"
1/8"
The wall support panels must be
Wood
Center
Screws
Arrow
Wood
Screws
Hardware
Package
761Dia65
Secure the
top panel
to the wall
with 4 wood
screws
Secure the
bottom panel
to the wall
with 4 wood
screws
