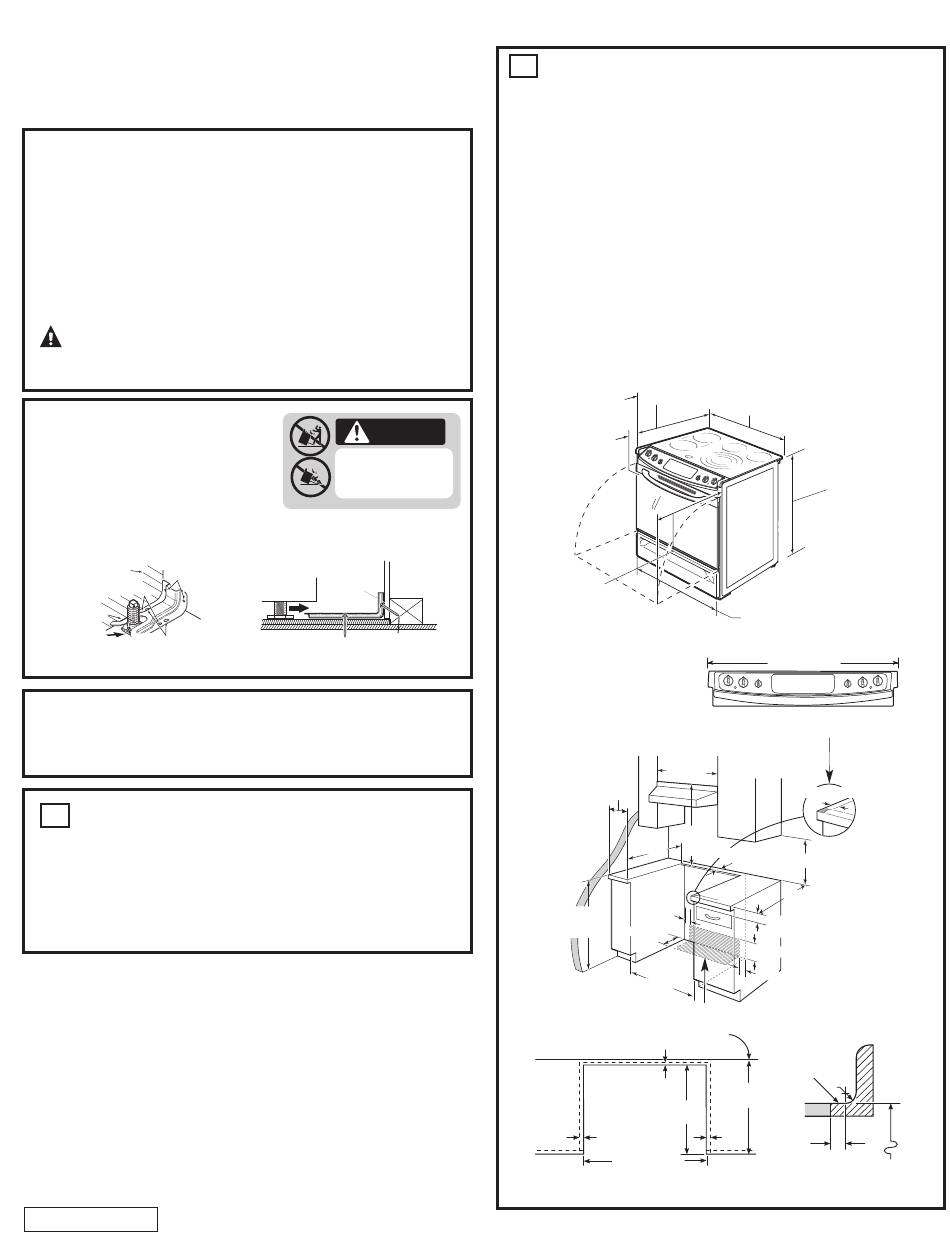

Installation Instructions
30" Electric Slide-In Ranges
Questions?
Call 1.800.561.3344 or visit www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT—
Save these instructions for local inspector's use.
IMPORTANT—
Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical
skills and advanced electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under warranty.
WARNING:
connected by means of the supplied cord and plug. If your kitchen does not
have a receptacle, you must have one installed by a licensed electrician.
NOTE: Installation information for
reference only. See Installation
Instructions shipped with product for
complete details and before attempting
to install. Anti-tip bracket must be
attached to the floor or wall to hold
either right or left rear leg leveler. Make
sure leg leveler reengages the bracket
when range is moved for any reason.
Adjacent Cabinet
Or Final Location
Of Range Side Panel
Wall
Floor-Wood
Bracket
Side
Rear
Leveling
Floor-Concrete
Leg
TOOLS YOU WILL NEED
Drill with 1/8" Bit
Level
Safety Glasses
Tape Measure
Adjustable Wrench
1
REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the
appliance. Remove all packing parts from oven, racks, heating elements
and drawer. Also, remove protective film and labels on the door, cooktop
(do not remove side protection on glass cooktops) and backguard.
Do not remove protective channel from sides of glass cooktop, if applicable,
until later in installation.
NOTE : Cut the orange shipping ties from the power cord, being careful not
to damage the cord.
222D6038P003
This appliance must be properly
WARNING
• All ranges can tip
• Injury to persons could result
• Install anti-tip bracket
packed with range
• See Installation Instructions
Attachment To Wall
Wall
Bracket
Plate
Screw Must
Enter Wood
Or Metal
Pliers
1/4" Nut Driver
2
PREPARE THE OPENING
If the countertop area is not flat, excess tension may be applied to the glass
cooktop causing breakage and voiding the warranty. Make sure the wall
covering, countertop, flooring and cabinets around the range can withstand
the heat (up to 93˚C [200˚F]) generated by the range.
A. Allow 76.2 cm (30") minimum clearance between surface units and bottom
of unprotected wood or metal cabinet, or allow a 61 cm (24") minimum
when bottom of wood or metal cabinet is protected by no less then 6.3 mm
(1/4") thick flame retardant millboard covered with no less than No. 28 MSG
sheet metal .38 mm (.015") thick, .38 mm (.015") thick stainless steel,
.63 mm (.025") aluminum or .5 mm (.020") copper.
B. A minimum 15.2 cm (6") spacing to surfaces less than 38.2 cm (15")
above the cooktop and adjacent cabinetry is recommended to reduce
exposure to steam, grease splatter and heat. Allow 6.3 mm (1/4")
minimum clearance at the back wall.
To reduce the risk of burns or fire when reaching over hot surface elements,
cabinet storage space above the cooktop should be avoided. If cabinet
storage space is to be provided above the cooktop, the risk can be reduced
by installing a range hood that projects at least 12.7 cm (5") beyond the front
of the cabinets. Cabinets installed above the cooktop must be no deeper
than 33 cm (13").
Front surface
59.82 cm (23.55")
of countertop
11.66 cm (4.59")
55.30 cm (21.77")
Door clearance
from front surface
of countertop
NOTE: Use a 122 cm (4') power
cord to prevent interference with
the storage drawer. Power cords
137 cm (4-1/2') to 182.2 cm (6')
long may have to be dressed
to allow for proper drawer closing.
76.2 cm
(30") min.
See note
B
above.
See note
59.37 cm
(23-3/8")
above.
6.98 cm
91.1 cm–96.5 cm
(2-3/4")
(35-7/8"–38") from
floor to countertop
11.27 cm
(4.44")
76 cm–76.3 cm
(29-15/16"–30-1/16")
1.58 mm (1/16")
min. flat
59.37 cm
(23-3/8")
1.4 cm (9/16")
min. flat
Smooth cut
76 cm–76.4 cm (29-15/16"–30-1/16")
(FOR INDOOR USE ONLY)
75.89 cm (29.88") – Metal cooktops
79.71 cm (31.38") – Glass cooktops
Height from floor
to cooktop
91.44 cm (36")
Range Wide
75.89 cm (29.88")
80.06 cm (31.52")
If the control panel measures 80.06 cm (31.52") as shown
above AND if the countertop has a raised edge, shave raised
edge to clear the control panel as shown below.
14.2 mm (9/16")
A
6.3 mm (1/4")
38 cm (15") min.
min. flat
63.5 cm (25")
3.1 cm (1-1/4") min. from countertop
to top of cabinet drawer.
13.65 cm (5.3/8")
6.98 cm (2-3/4")
Orient electrical receptacle so the length is parallel to the floor.
Wall
Flat area
R
63.5 cm (25")
typically
1.4 cm
(9/16")
min.
1.58 mm
flat
(1/16")
91.4 cm (36")
