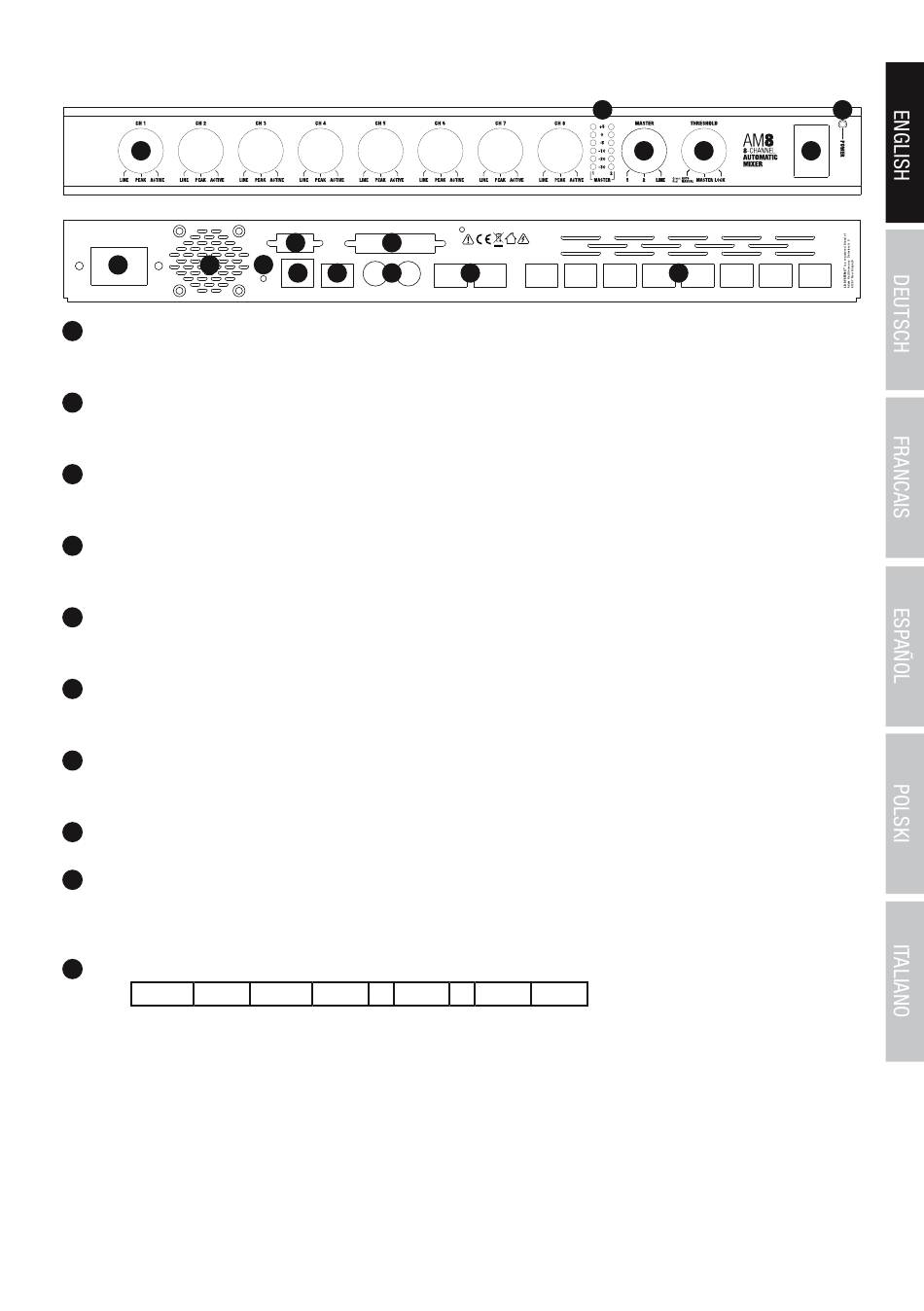

CONNECTIONS, CONTROLS, AND INDICATORS

1
110-240 AC / 50-60Hz
7 8
MAX 60 W / AC~
1
SETTING AND DISPLAY ELEMENT CH 1 - CH 8
Rotary encoder, push-button and LED display with multi-function.
2
LED DISPLAYS MASTER 1 & 2
6-segment LED level meter for the sum signals Master 1 and Master 2.
3
SETTING AND DISPLAY ELEMENT MASTER
Rotary encoder, push-button and LED display with multi-function.
4
SETTING AND DISPLAY ELEMENT THRESHOLD
Rotary encoder, push-button and LED display with multi-function.
5
POWER
On / Off switch for the power supply of the device.
6
POWER-LED
The power LED lights up once the system is properly connected to the power mains and switched on.
7
IEC POWER SOCKET
Used to power the device. An appropriate power cord is included in the delivery.
8
HOUSING FAN
9
RESET
When you press the RESET switch, all settings, such as equalizer and routing, are reset to the default settings. Press and hold the switch for
about 6 seconds.
10
RS-232 INTERFACE
RS-232 Baud:
Settings:
Command settings:
RS-232 commands (16 HEX ASCII):
%V, +device address (1 bit), +8 channels volume (8 bit), +master volume (2 bit), +manual threshold level (1 bit), +CRC +#
device address (1 bit): device 1-16, 1 for the master device
channel volume (8 bit): channel 1-8, 0-60 dB, in steps of 1 dB
master volume (2 bit): master volume 1/2, 0-60 dB, in steps of 1dB.
manual threshold level (1 bit): 0-60 dB, in steps of 4 dB.
10 13
RS-232
EXTERNAL CONTROL
9
+ I - I G
11 12 14
RESET
NETWORK AES/EBU OUTPUT LINK IN LINK OUT
115200 Data: 8 Stop:
2
