Back Cover:
For enhanced sound reduction, the sound enclosure for the The Quiet One® is
secured to the base using a patented magnetic system. Aside from the advantages
of reducing blending noise over that of mechanically attached door systems, the
magnetically attached system allows for fast and easy removal for cleaning.
To remove the sound enclosure:
• First ensure that the container has been removed from the unit.
• Grasp the enclosure with both hands.

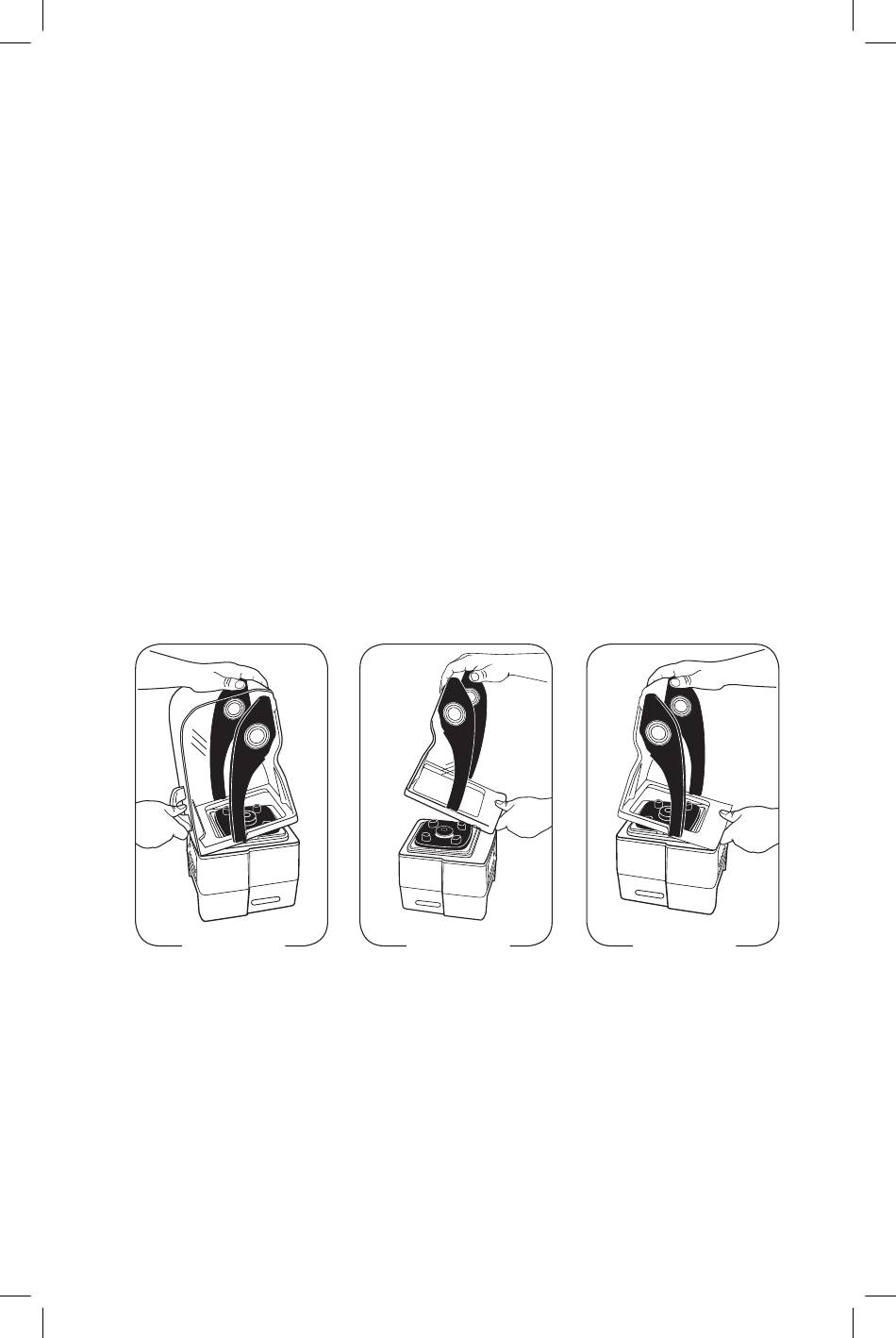

• Tilt slightly back and pull the enclosure straight up (See Figure B).
To replace the sound enclosure:
• Start with the back cover detached from the cover door
• Align the opening in the base plate of the back cover (See Figure C)
• Start on one side of the centering pad and slowly lay the back cover
into position ensuring that the sound dampening pad is not pinched by
any portion of the base plate (Figure D)
FIGURE B FIGURE C
FIGURE D
15
