Machine description

3.1

Description of function

After the warewasher is switched on, the boiler and the tank are filled and heated up to the operating temperature. Once the target tem-
peratures are reached, the warewasher is ready for use.
The warewasher is fully automatic with programmes consisting of three steps: Wash, Drain and Rinse.
3.2

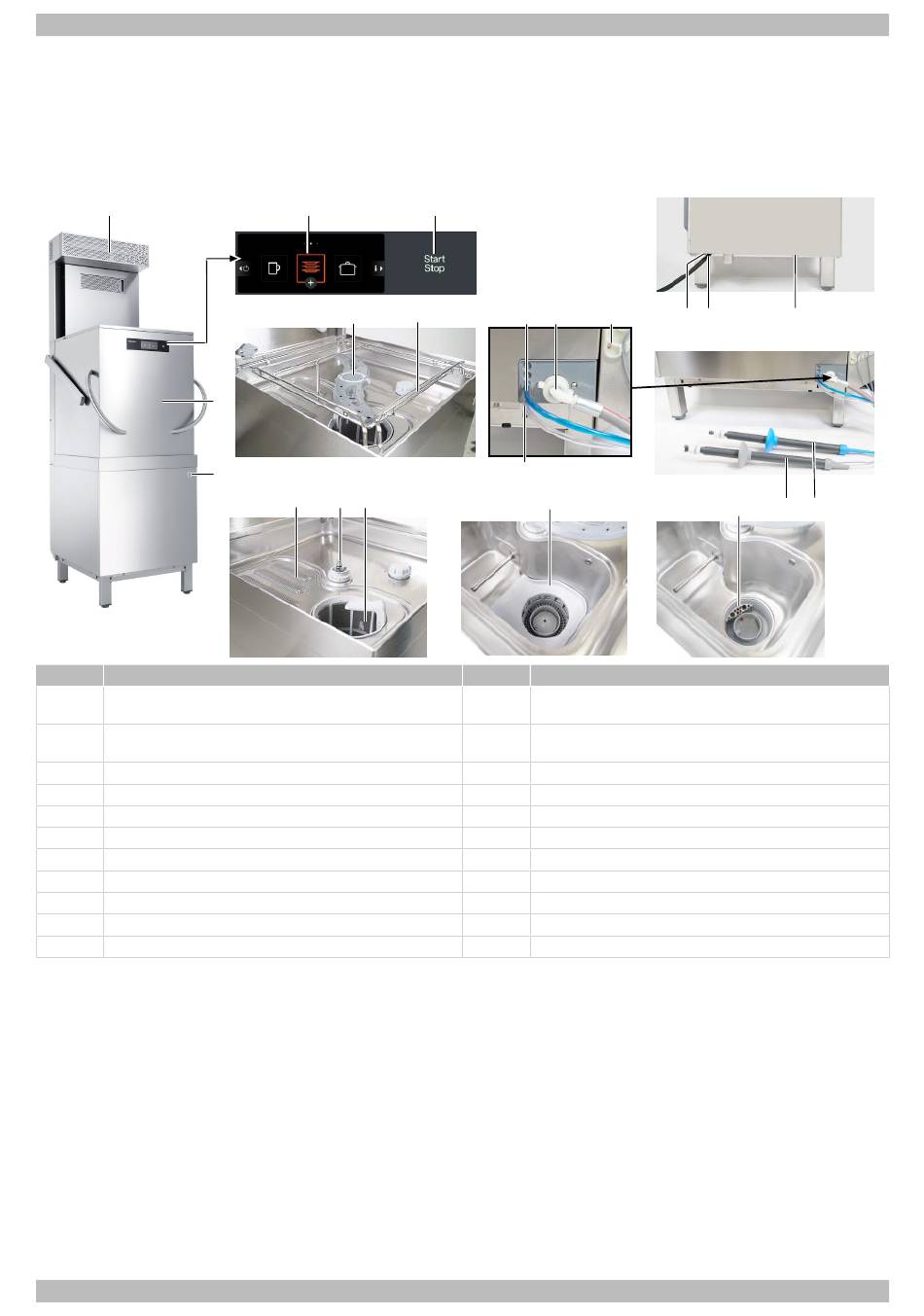

Overview

1
Item Name
1 ECO module
(only for ECO version)
2 Display
3 Start button
4 Hood
5 Lower wash field
6 Rack guide
7 Rinse aid connection
8 Inlet water hose
9 Multifunction interface
10 Connection for on-site equipotential bonding system
11 Mains cable
Operating instructions PTD 901
2
5
4
13
14
15 16
3
6
7 8
17
18
Item Name
12 Waste water connection
13 Start button
(only for LIFT version)
14 Strainer
15 Wash field bearing
16 Filter cylinder
17 Detergent connection
18 Filter bottom
19 Pump protection strainer
20 Suction tube for detergent (optional)
21 Rinse aid suction tube
|
