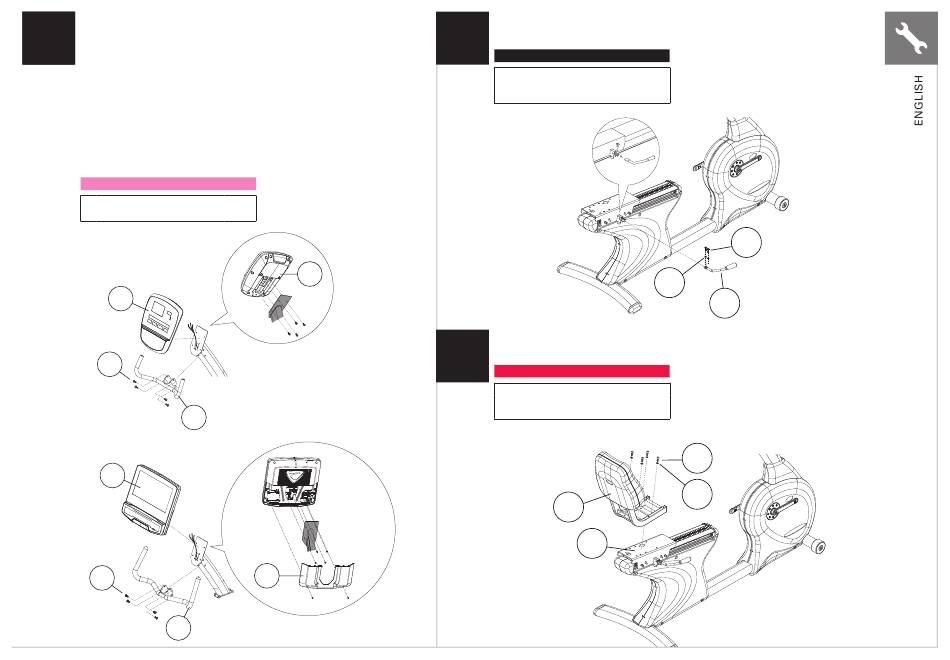

• Mount the upper HANDLEBARS (5) to the console mast using 4 BOLTS (H).
2 4
Tighten with the 6MM L-SHAPE WRENCH.
• Remove the four mounting screws from the back of the console. Remove the 4
CONSOLE BACK COVER (6) screws. (R60)
• Connect the wire harness and heart rate wires that come from the console mast into
the plugs located in the back of the console.
• Attach the CONSOLE (7) to the console mast with the four bolts removed earlier in
this step from the console.
• Plug in the 9-volt battery. (R60)
• Re-attach the CONSOLE BACK COVER (6) with the four screws previously removed.
(R60)
• Attach the CONSOLE BACK COVER (6) packed within frame carton by 2 PRE-
INSTALLED SCREWS on CONSOLE (7). (R600E)
PINK BAG
Description
H M8x20L Bolt
R60
7
H
5
R600E
7
H
5
Qty
4
6
6
• Fix SEAT POSITION ADJUSTER (7) to the seat slider by 2 BOLTS (I) and LOCK
WASHERS (J) then tighted by 4MM L-SHAPE WRENCH.
5
BLACK BAG
Description
I
M5x16L Bolt
J
M5 Lock Washer
• Fix SEAT FRAME(8) to the SEAT SLIDER(9) by 4 BOLTS (K) with 4 LOCK WASHERS(L)
and tighten by 6MM L-SHAPE WRENCH.
6
RED BAG
Description
K
M8x20L Bolt
L
M8 Lock Washer
8
9
Qty
2
2
I
J
7
Qty
4
4
K
L
5
