5.1. COLORPLUS ECO: pushbutton control
The system has 14 operation modes: 7 set colours and 7 sequences of different colours (see section 6.1.2.) The colour or sequence is changed
by a quick press of the pushbutton. The lamp/s is/are placed in white if the pushbutton is pressed for longer.

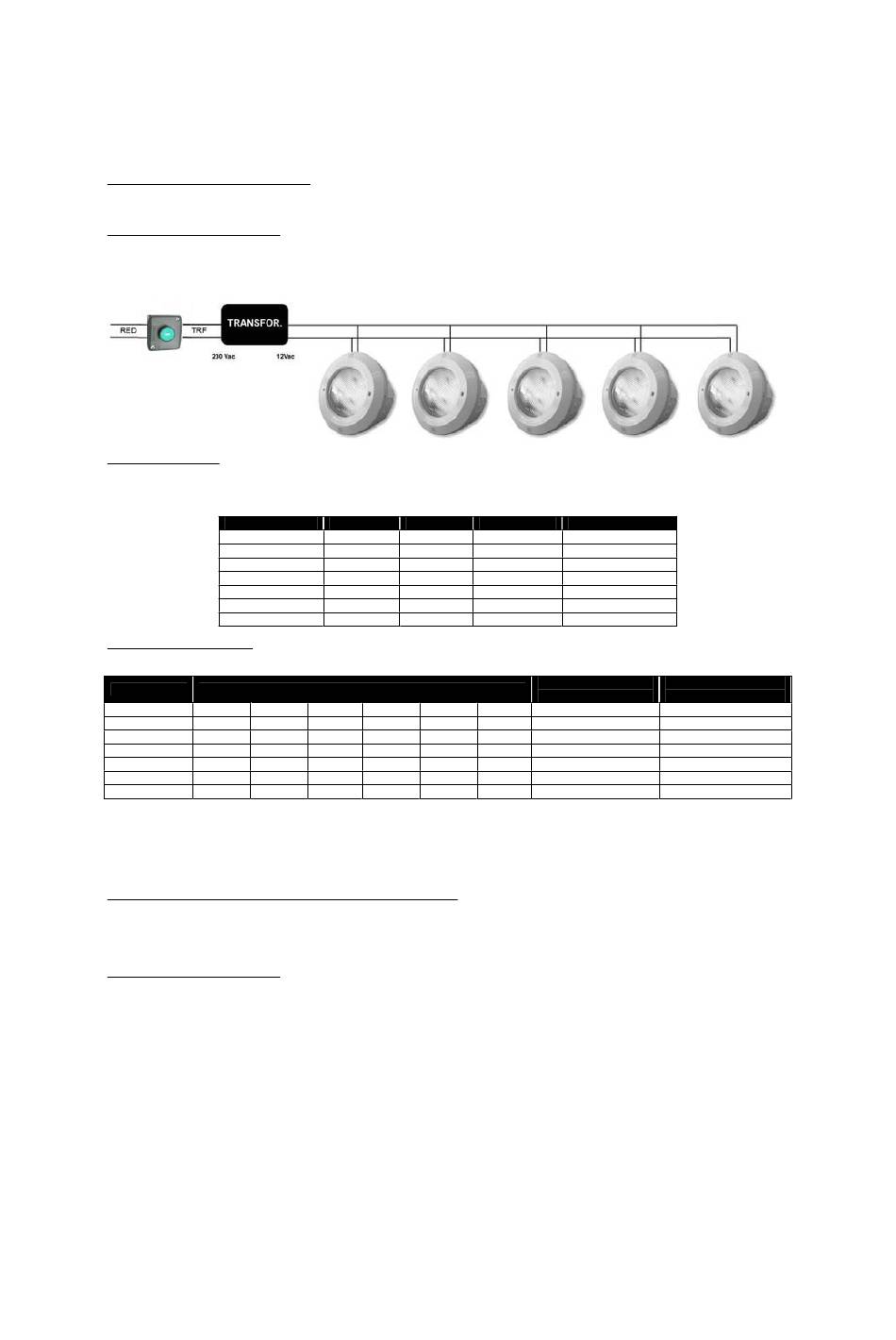

5.1.1. Electrical connection diagram

The COLORPLUS ECO system is composed of the projector/s, the transformer and the normally closed (NC) pushbutton.
The transformer must be able to supply 60VA for each led lamp connected. For example, if you want to control 5 lamps, you must connect
them in parallel to a transformer of at least 300VA. The pushbutton must be able to withhold the power consumed by the number of lamps
installed.

5.1.2. Operation modes

The COLORPLUS ECO unit enables different light scenarios to be created inside the swimming pool with two operation possibilities:
Set colour: Selection of one set colour out of seven possibilities.
COLOUR Nº
1
2
3
4
5
6
7
Automatic sequence of colours: Selection of nine colour sequence programmes. Each programme is defined by the lighting time of each colour
and the transition time from one colour to another according to the following table:
SEQUENCE
1 Red Blue
2 Red Green
3 Purple Cyan
4 Red Blue
5 Purple Cyan
6 Yelow Purple
7 Green Red
The colour or sequence is changed by pressing the pushbutton. The colour and sequence cycle is rotary. For example, if you are in colour 5, by
pressing once, you will reach colour 6. If you press once again, you will go to sequence 7. If you are in sequence 7, press once and you will get
to colour 2, which is Red.
Colour 1, corresponds to white and is reached by one long press.
5.2. COLORPLUS TOP: Receiver-Modulator control and/or Remote control
The system has 21 operation modes: 12 set colours and 9 sequences of different colours (see section 6.2.2.).
The Receiver-Modulator controls switching the lamps on and off, changes of colour and sequences and switching off timing.
If you have a remote control, apart from the receiver-modulator operations, you can also switch colours of a sequence on and off and select the
switching off time.
5.2.1. Electrical connection diagram
For correct installation, you will need the Receiver-Modulator, the transformer and finally the leds lamp. As an option, this system can be
controlled by Remote Control. For more information on the installation of the Receiver-Modulator, see point 6.2.3. and section 6.2.4. includes
information on the Remote Control.
The Receiver-Modulator is connected to the 230 Vac mains by means of two terminals indicated MAINS, and to the primary input of the
transformer (230 Vac) by means of the terminals indicated TRF (See attached diagram).
Each Receiver-Modulator, it can control until a maximum of five spotlights.
The transformer must have the capacity to supply 60 VA to each led lamp connected. For example, if you want to control 5 lamps, they should
be connected in parallel to a transformer of at least 300VA.
% RED % BLUE
100 100
100 0
0 100
0 0
100 100
0 100
100 0
ORDER OF COLOURS
Green Purple Cyan
Cyan Blue Purple
Yelow - -
Green - -
Yelow - -
Cyan - -
Blue - -
3
% GREEN COLOUR
100 White
0 Red
0 Blue
100 Green
0 Purple
100 Cyan
100 Yelow
COLOUR TIMING
(SEC.)
Yelow 2
Yelow 4
- 4
- 8
- 18
- 0,5
- 0,5
BLENDING TIMING
(SEC.)
2
4
4
8
18
0,5
0,5
