DUCTLESS RECIRCULATING

Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the power pack functions in air "purifying" mode rather than exhausting the air. Fumes and
exhaust from cooking is drawn and filtered by a charcoal filter. The air is then purified and recirculated back
into the kitchen.
We recommend to always exhaust air outside of the home by employing existing or installing new duct work, if
possible. The power pack is most effective and efficient as an exhaust unit. Only when the exhaust option is
not possible should you use the power pack in recirculating mode.
When converted to recirculating mode, a charcoal filter is required to be installed on top of the standard metal
mesh filter and a return air vent is needed to direct air back into the kitchen. The standard metal mesh filter is
intended to capture residue from cooking and the optional charcoal filter helps to purify fumes exhausted from
cooking in recirculating mode.
Purchase recirculating kit as follows,
Hood Model: Part No.
AK8400AS ZRC-8400A
Charcoal filters must be replaced approximately every 3 months based off an average usage of 1 hour a day.
Order replacement charcoal filters as follows:
Hood Model: Part No.
AK8400AS Z0F-C084
For detailed installation instructions please refer to manual included with recirculating kit.

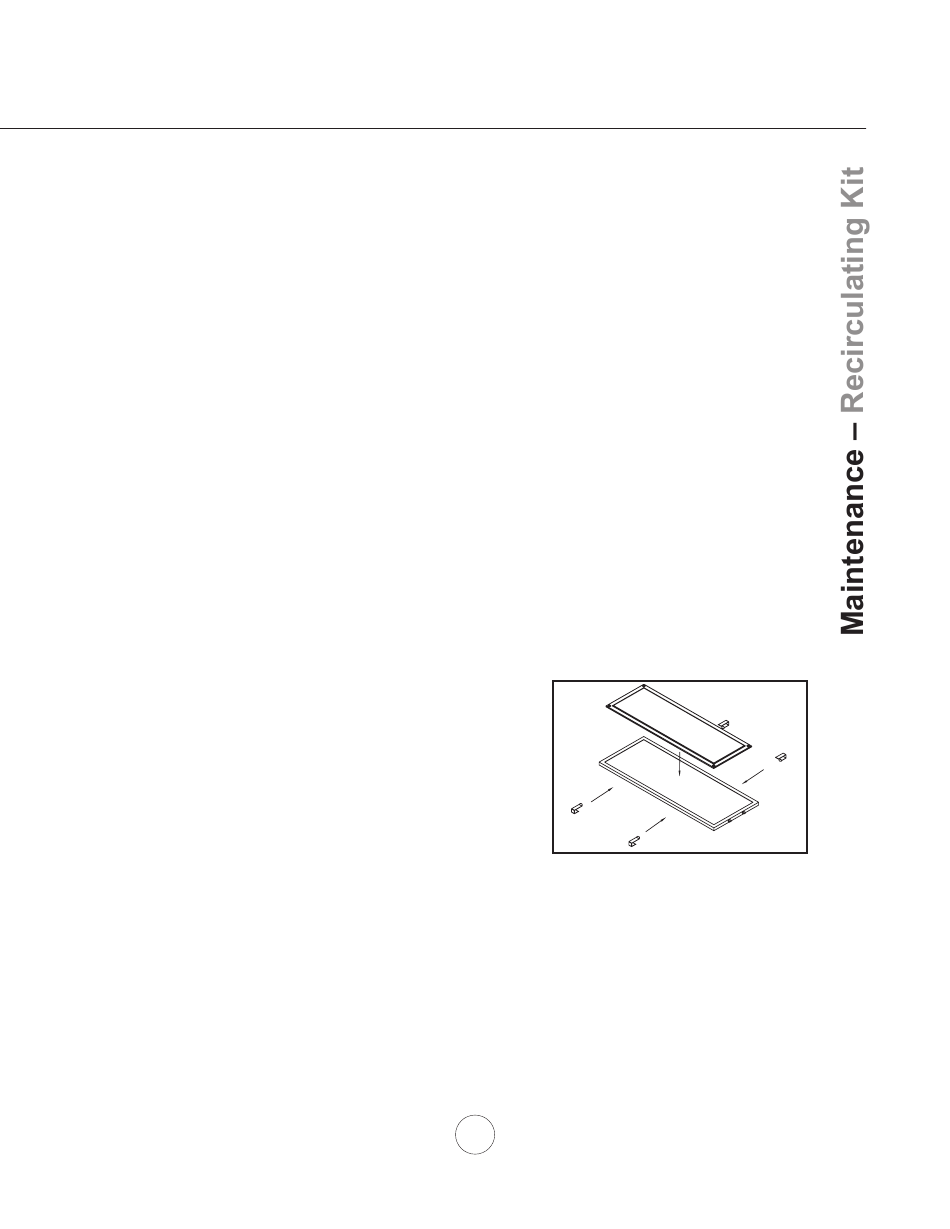

Installing Charcoal Filter, FIG 6:
1. Place charcoal filter on top of back side of aluminum mesh filter
2. Secure charcoal filter by 4 C clips from ZRC-8400A recirculation
kit, 2 C clips for each enlongated side of charcoal filter.
Qty. to Order
1
Qty. to Order
1
13
FIG 6
