WHEN USING A SOLID PACK CHIMNEY

EN
5.2

WHEN USING AN AIR COOLED CHIMNEY

W415-1501 / 05.15.15
Cement board and steel studs
on enclosure ceiling not
required above 10' (3.1m)
Cement board
Face must have a
minimum 8' (2.4m)
height of cement
board depending
upon ceiling height
Combustible
facing and wood
framing may start
at 8' (2.4m) above
the base of the unit
Cement board from
the side of the unit
to combustibles
Panneau de ciment
La façade doit posséder
un panneau de ciment
d'une hauteur
minimale de 7'
La façade combustible
et la charpente de bois
peuvent débuter à 84"
au-dessus de la base
de l'appareil
Panneau de ciment sur
le côté de l'appareil
aux matériaux
combustibles
Metal Studs
MINIMUM 7' (2.1m) TO BASE OF THE FIREPLACE
Enclosure ceiling
height from 7 ' (2.1m)
to 10 ' (3.1m)
Montants d'acier
ENCLOSURE CEILING
FLOOR JOISTS
METAL STUDS
CEMENT BOARD

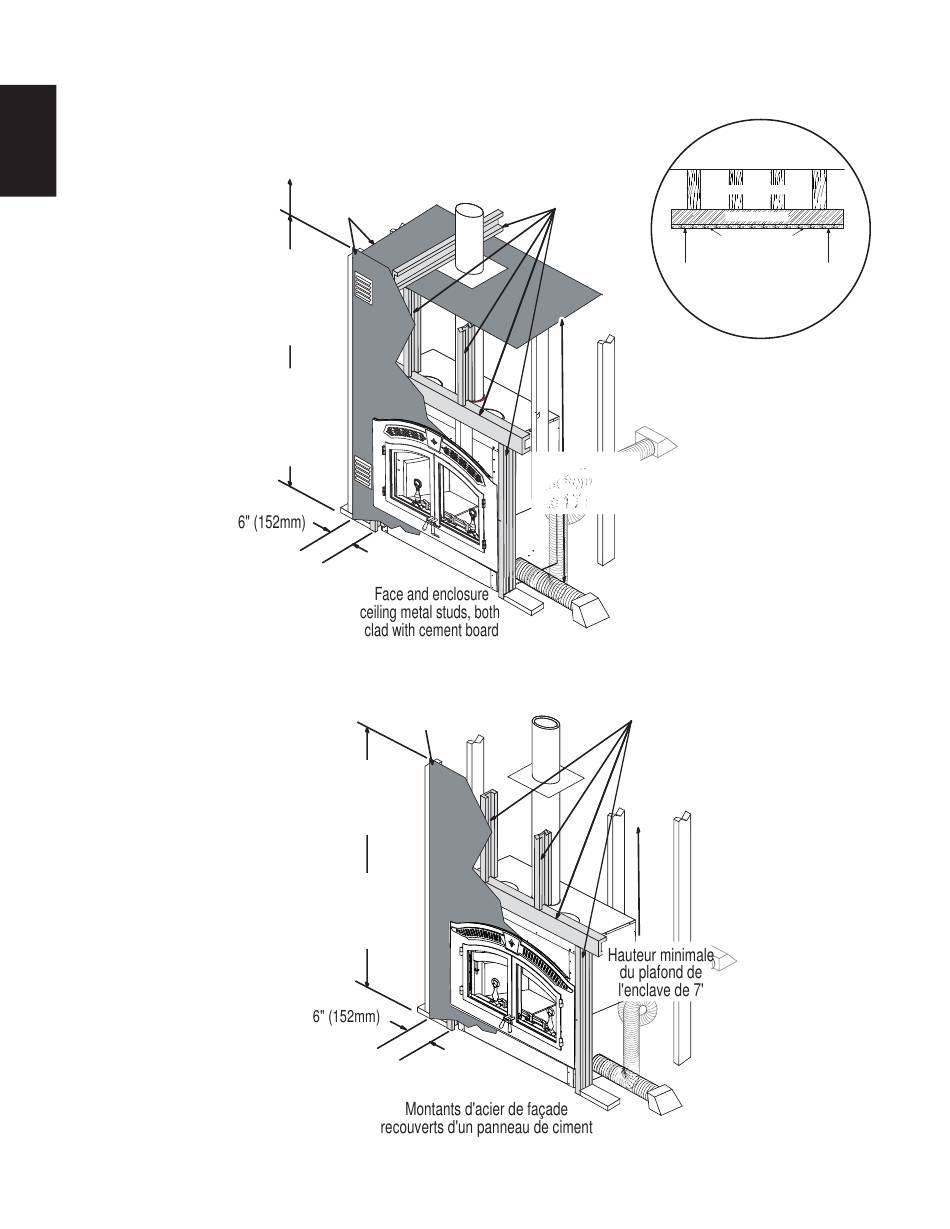

The appliance face and
enclosure ceiling must
be framed using 2x4
metal studs.
The minimum
enclosure ceiling height
is 7 feet (2.1m).
Non-combustible
materials (cement
board and metal studs)
must be used.
