4.7 Components

Components of the system in
operation
Components in installation kit
Description of the
components of the system in
operation

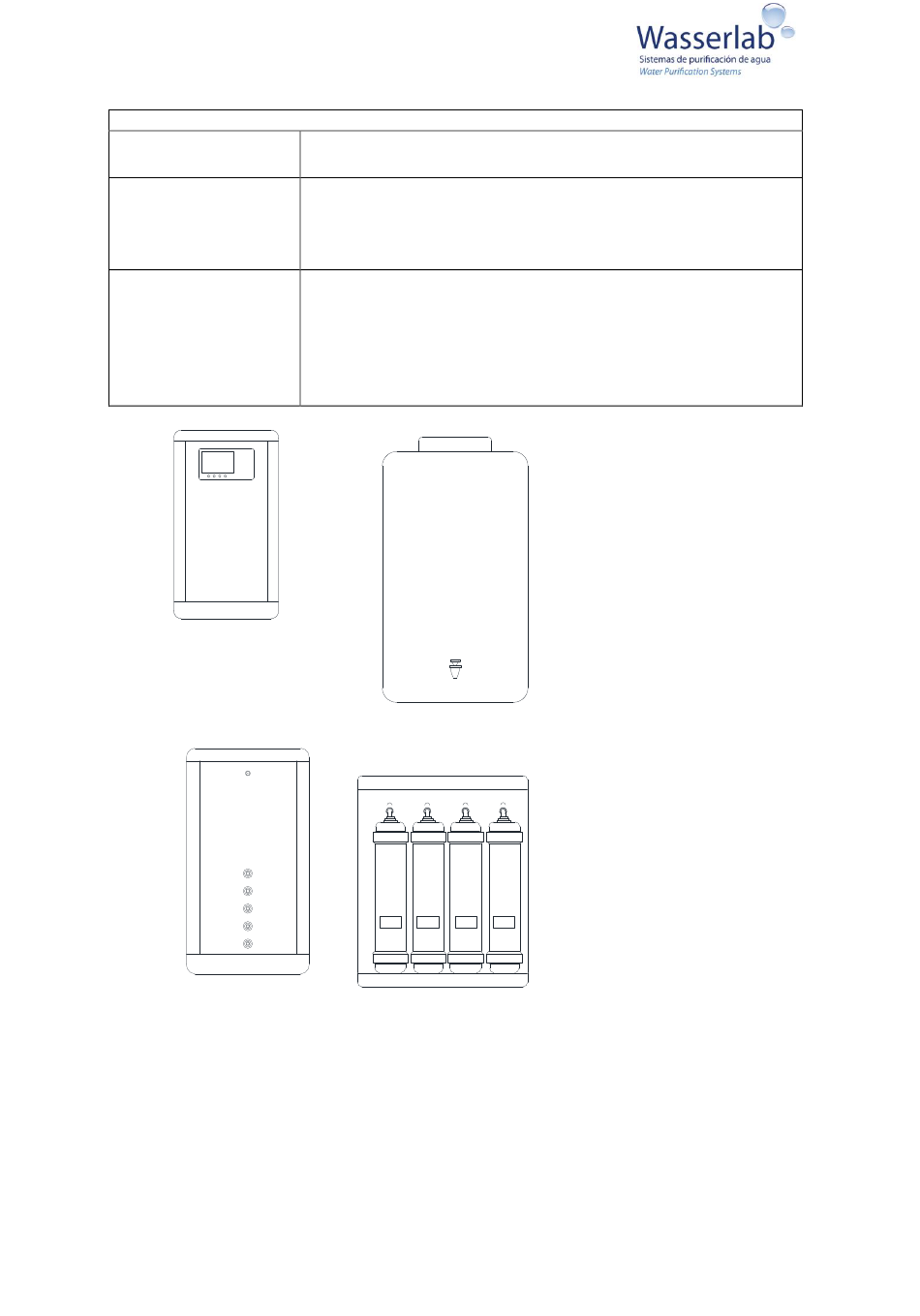

Figure 4.1. Equipment (Front view)
Plug-in
Bottle
Bottle
0
Type II
Type II
1
Rej.
Rej.
2
Tank
Tank
3
In
In
Figure 4.3. Equipment (Back view)
Vista trasera
 Equipment (Figure 4.1)
 Tank (Figure 4.2). The tank is not delivered with the equipment unless
requested by the customer.
 One complete set of pretreatment cartridges (One sediment filter [1] + one filter of
granular activated carbon (GAC) [2])
 One complete set of ion exchange resin cartridges (One cartridge [3] and one
cartridge [4])
 Installation kit of hydraulic connections (components described in the equipment
documentation)
 Equipment with the following elements:
- Front (Figure 4.1): Screen and operation keys.
- Back (Figure 4.3): Hydraulic connectors and transformer plug-in
- Right (interior) (Figure 4.4):
- Two pretreatment cartridges (One sediment filter [1] + one filter of granular
activated carbon (GAC) [2])
- Two ion exchange resin cartridges (One cartridge [3] and one cartridge [4])
- Left (interior): reverse osmosis membrane (ROM), other components.
 Tank (Figure 4.2) at atmospheric pressure with dispensation point.
Figure 4.2. Tank
Wasserlab Wasserlab Wasserlab
1 2 3
Figure 4.4. Equipment (Right interior)
Wasserlab
4
