10. Monitoring

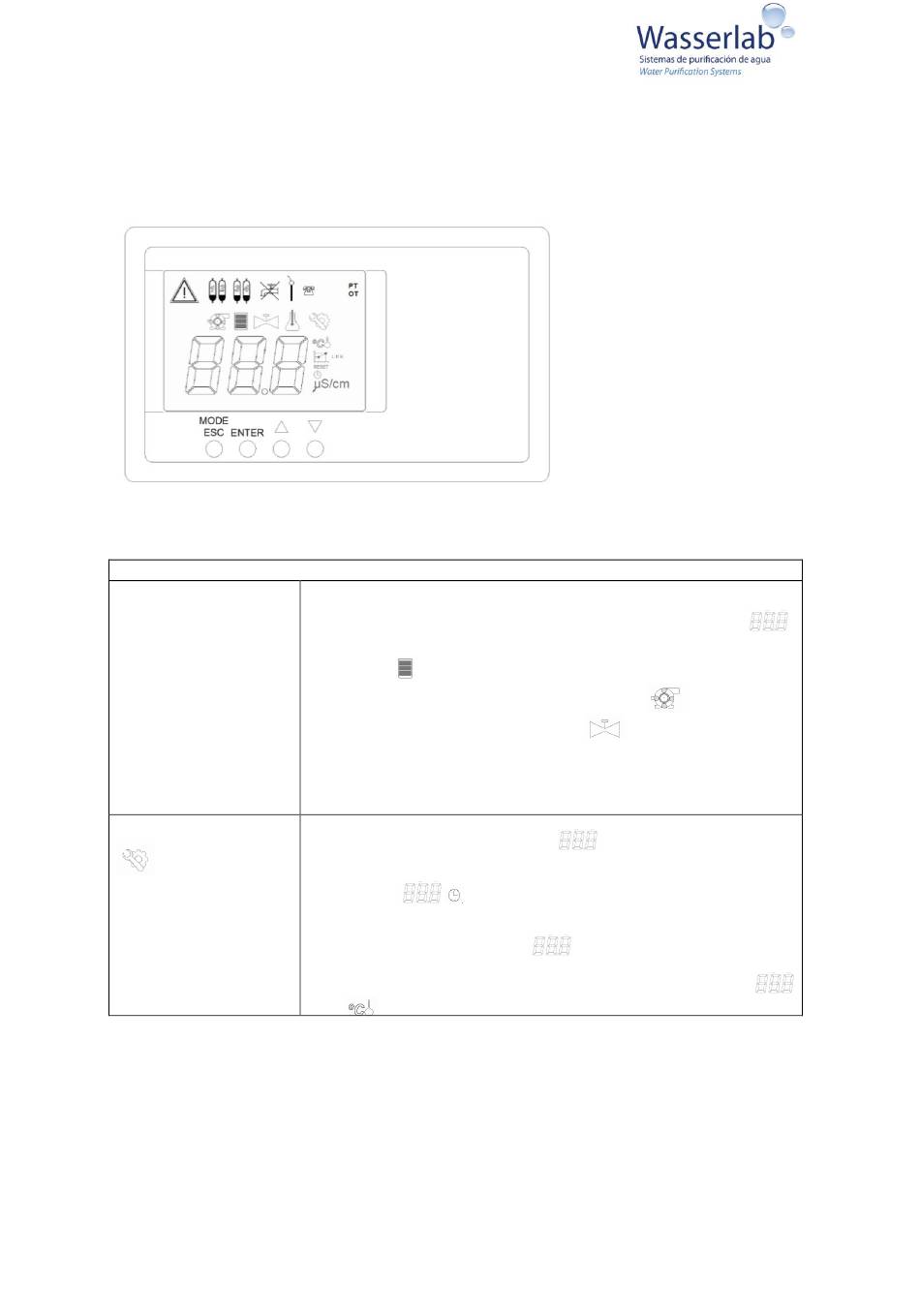

Figure 10.1 shows the screen with all its possible symbols and the keyboard. The symbols and their meaning are
tabulated in Section 10.2. The user sees the main menu on the screen and can access the configuration menu.
Pressing the MODE / ESC key switches between the main menu and the configuration menu. Section 10.1 shows the
possible symbols that are activated in each menu.
Figure 10.1

10.1 Screen

On the screen, the main menu
shows simultaneously:
The configuration menu
(indicated by the symbol
) shows sequentially -
by pressing the keys  y –-
the four screens described
here.
To modify the settings of the
configuration menu, see
Section 10.4:
Screen
o
The conductivity of the water produced (compensated at the specified
temperature), or the conductivity value of the last water that has been
produced (If the equipment is new, it will show 00.0 µS/cm). Symbols :
µS/cm
o
Symbol with the status of the equipment: production or stand-by mode.
Symbol:
o
Equipment status and solenoid valve status. Symbol
equipment is in production mode, Symbol
valve is open.
o
Equipment configuration OT: Equipment with atmospheric deposit
o
When the equipment detects a warning situation, it emits warning signs
through an acoustic signal and a warning symbol. The types of warnings, their
symbols and the recommended actions are described in Section 14.1.
o
Screen with the conductivity set point in µS/cm for replacing the deionization
resin cartridges [3] and [4]. Symbols:
o
Screen with the hours set point for changing the pre-treatment cartridges.
Symbols:
o
Screen with pre-treatment counter in hours (Working hours of the equipment
and RESET of hours). Symbols:
o
Screen with the water compensation temperature in °C. Symbols:
is activated if the
is activated if the solenoid
µS/cm
RESET
