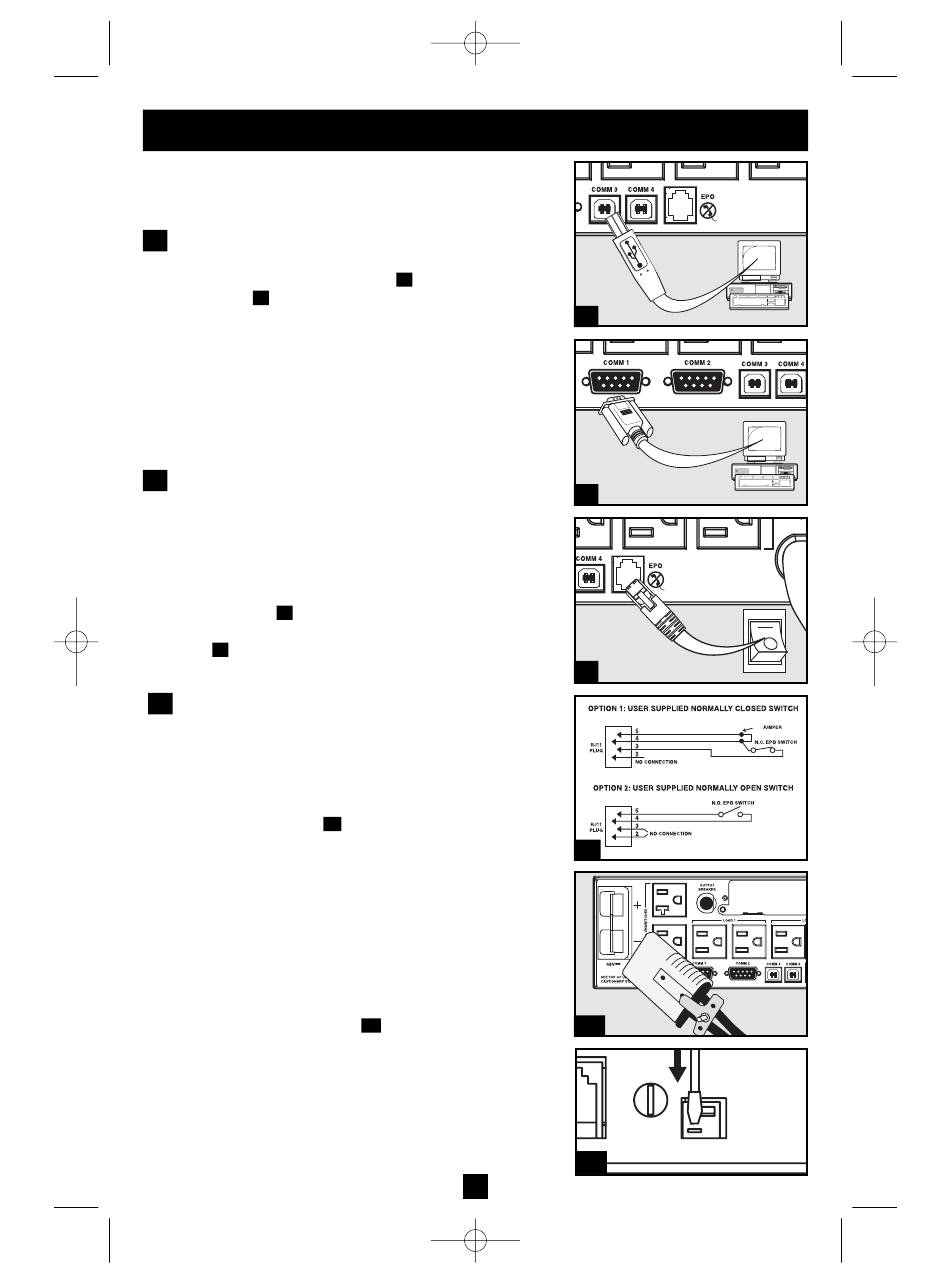

Optional Installation

These connections are optional. Your UPS will function
properly without these connections. Note: SMART3000RM2U
shown in all diagrams.
USB and RS-232 Serial
1
Communications (all models)
Use the included USB cable (see
1b
cable (see ) to connect the communication port on
your computer to the communication port of your
UPS. Install on your computer the Tripp Lite
PowerAlert Software appropriate to your computer's
operating system. Your UPS may feature additional
communications ports; these ports may also be connected
to additional computers which have PowerAlert
Software installed. Consult your PowerAlert manual
for more information.
EPO Port Connection (all models)
2
This optional feature is only for those applications
which require connection to a facility's Emergency
Power Off (EPO) circuit. When the UPS is connected
to this circuit, it enables emergency shutdown of the
UPS's inverter.
Using the cable provided, connect the EPO port of
2a
your UPS (see ) to a user-supplied normally closed or
normally open switch according to the circuit diagram
2b
(see ). The EPO port is not a phone line surge sup-
pressor; do not connect a phone line to this port.
External Battery Connection
3
(select models only)
Your UPS comes with a robust internal battery sys-
tem; external batteries are needed only to extend run-
time. Adding external batteries will increase recharge
time as well as runtime.
The illustration (see
UPS's External Battery Connector, where you will
insert the battery pack cable. Complete installation
instructions for your battery pack appear in the battery
pack owner's manual. Make sure that cables are fully
inserted into their connectors. Small sparks may result
during battery connection; this is normal.
Do not connect or disconnect battery packs when the
UPS is running on battery power.
If you connect any external batteries, set the Battery
Charge Level Switch (see
This will increase your UPS's charger output so that
the additional batteries charge faster. Note: The switch
to the right of the Battery Charge Level Switch is inactive
and will not affect UPS operation regardless of its position.
Caution! DO NOT set the Battery Charge Level
Switch to the down position without an external
battery connected. There is a risk of damaging the
UPS's internal battery system.
1a
) and/or DB9 serial
) shows the location of your
3a
) to the down position.
3b
