Directions for Use

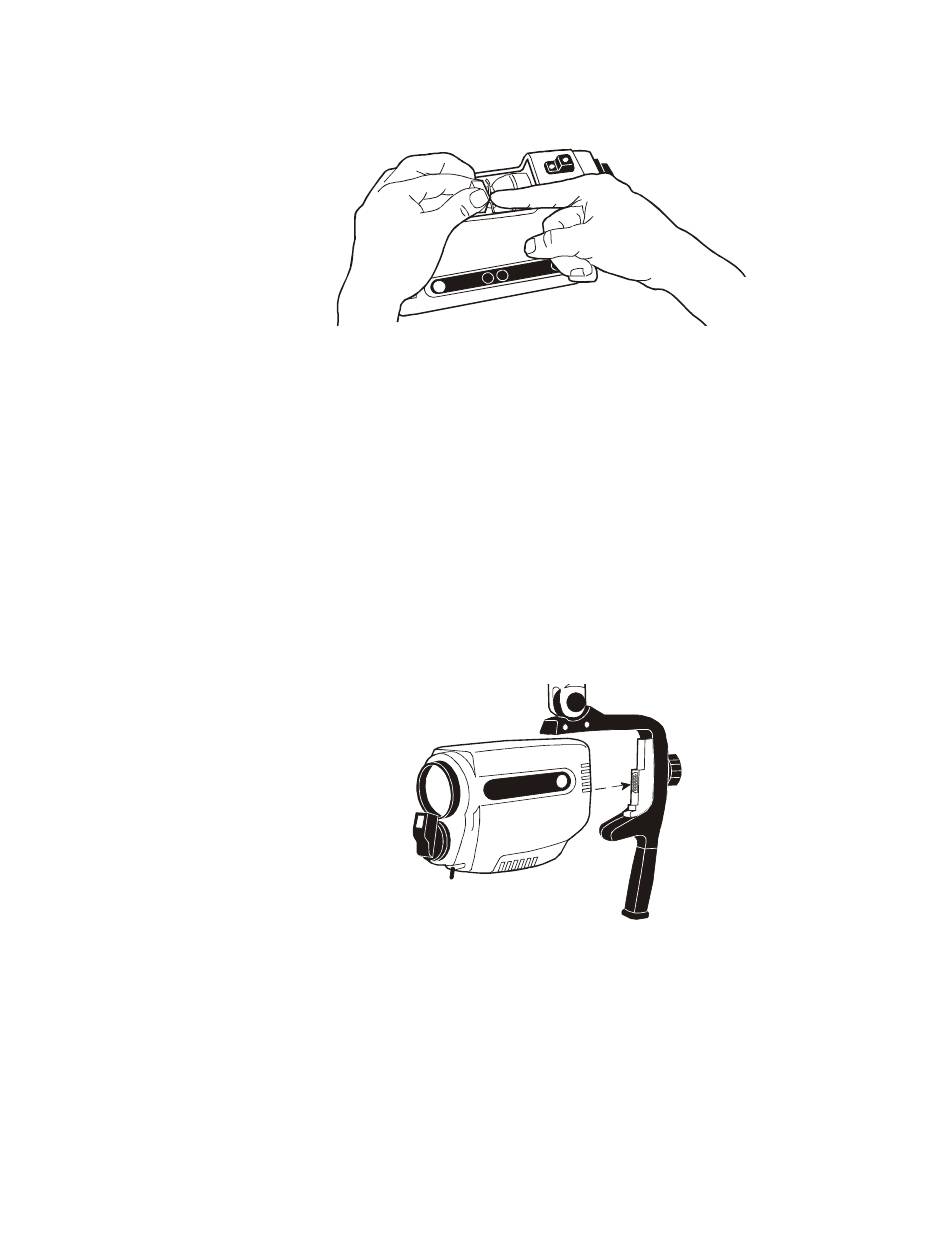

5. Push the retainer spring toward the back ofthe colposcope and remove the lamp from
its housing.
6. Remove a Welch Allyn replacement lamp # 09800-U from its package. Do not touch
the lamp itself or the interior reflective surface of the lamp. Skin oils will cause
premature lamp failure. Hold lamp by the outside of the reflector or the connector
only. Remove any grease or fingerprints with a clean cotton swab moistened with
alcohol. Do not leave any lint on the lamp.
7 . Holding the retainer spring as in
that the lamp's alignment pin engages the alignment slot in the lamp holder. (Make
sure lamp is properly seated and snaps into place.)
8. Plug the electrical connector onto the new lamp.
9. Slide the lamp access door securely back into place, reversing the process described
in Step 3
10. Place the video colposcope back into the handle, making sure the power connector is
engaged.
11. Rotate the knob clockwise until snug.
12. Plug the power cord back into the electrical outlet.
Step
above.
5, slide the new lamp into the lamp housing so
Maintenance 29
