Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When
converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking
are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within the
home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if
possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option is not possible
should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard Metal Filter set.
Order according to its part number below. The standard mesh filters are intended to capture residue from cooking, and
the optional charcoal filters help to purify fumes exhausted from cooking for recirculation.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Kit includes the charcoal filters and the air diverter plate.
Hood Model Part No.
ZRG ZRC-00RG
1. Purchase the recirculating kit per the part number above.
2. Secure the air diverter plate to the wall below the duct
cover bracket with two screws. Run the 6" ducting from
the top of the hood and secure it to the air diverter plate.
(FIG. C)
3. Remove the baffle filters from the hood. Place the charcoal filters to the
back side of the baffle filters. Secure the charcoal filters in place with rubber clips
or magnets, depending on the filter design.
NOTE: Remove all of the black foam from the filter opening before installing the
charcoal filters. (FIG. D)
4. Re-install the baffle filters. For more details refer to manual included with
recirculating kit.
5. Charcoal filters must be replaced after every 120 hours of use (or approximately
every 3 to 4 months based on an average of 1 - 2 hrs. of daily cooking time).
Charcoal Filter Replacements
Hood Model Part No.
ZRG Z0F-C005
DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need
to be changed more often depending on cooking habits.
1
Filters in pkg.
2
10-5/8"
(270mm)
Qty to Order
2
11
2

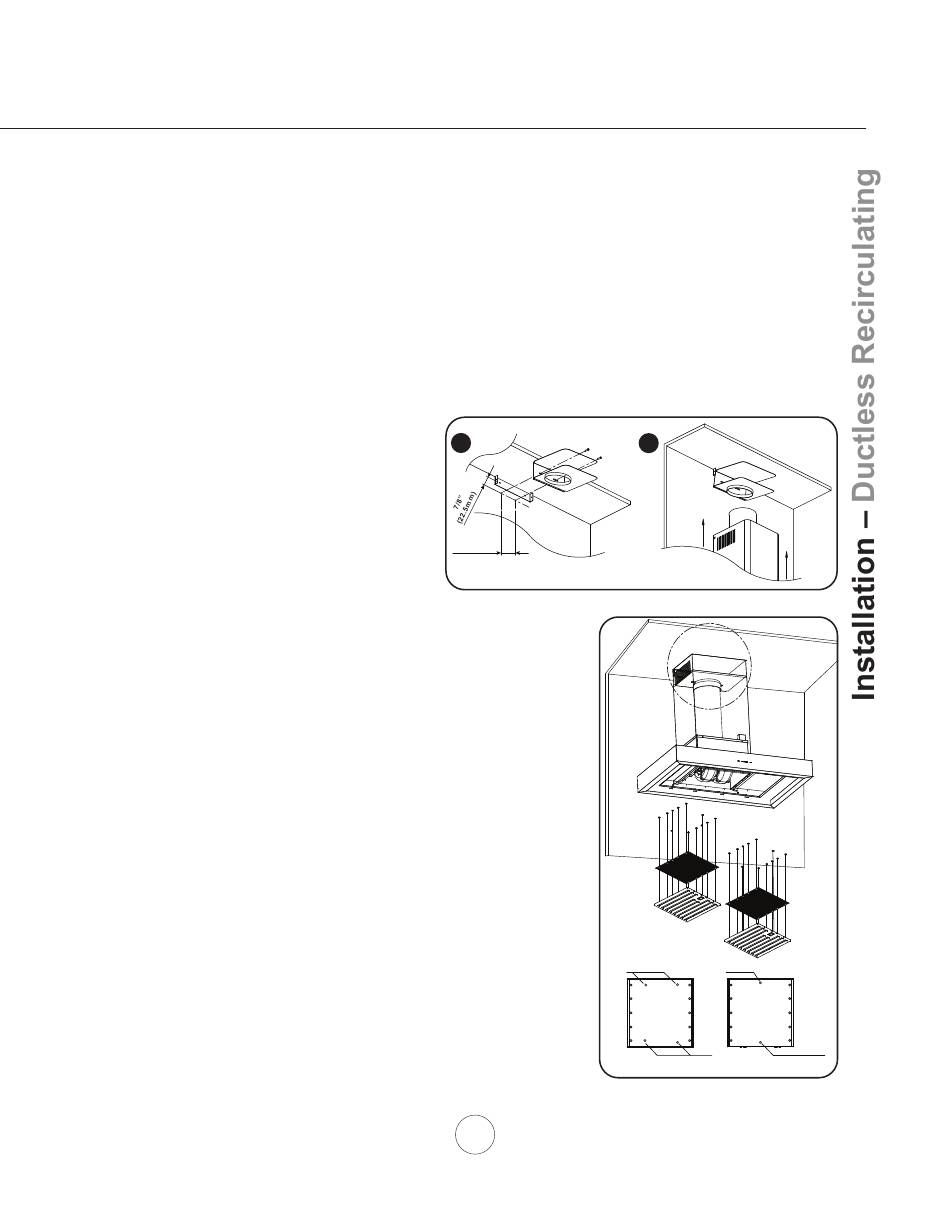

FIG. C
Clip Magnet
Clip
FIG. D
Magnet
