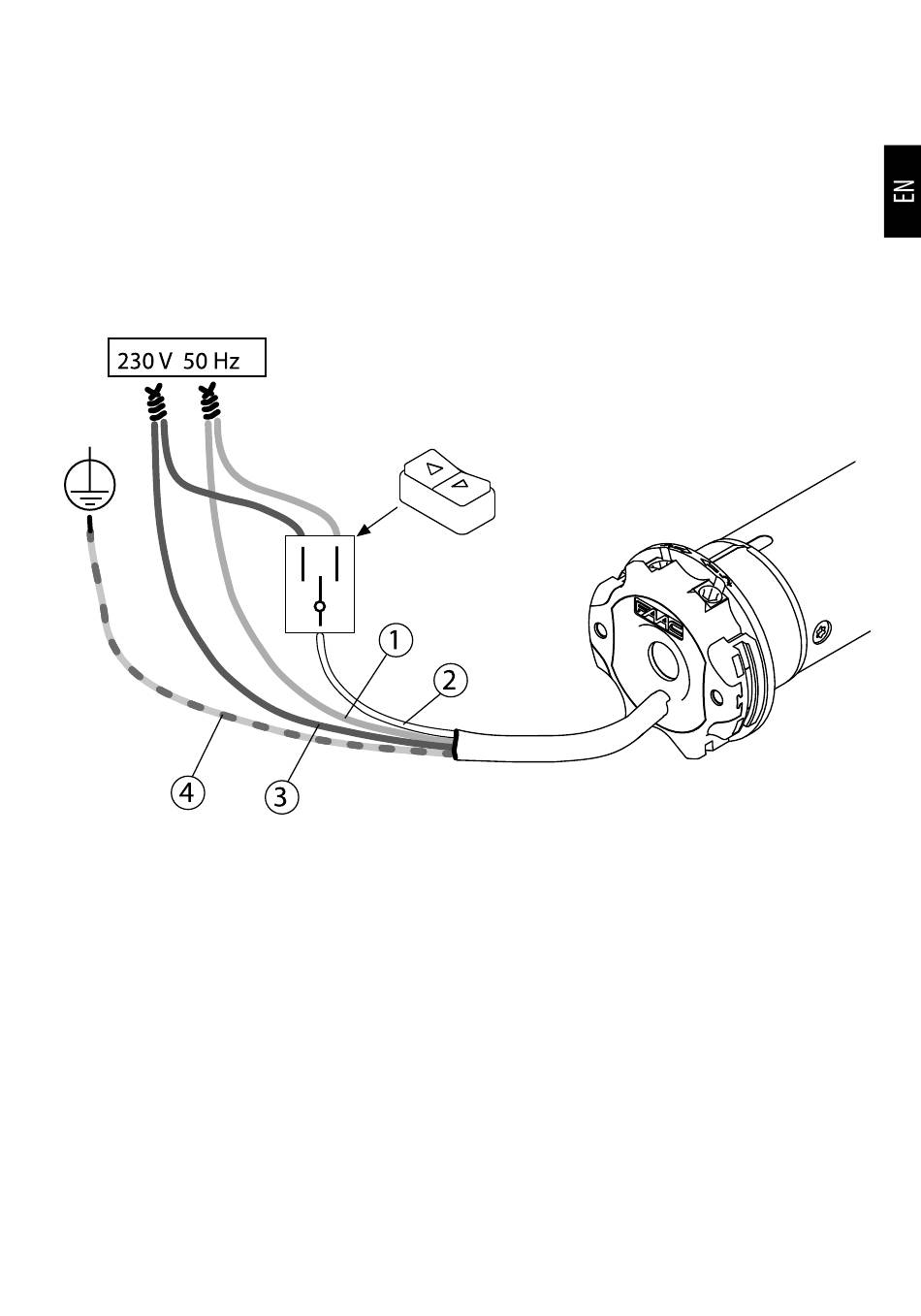

ELECTRICAL CONNECTIONS FOR MOTOR CONTROL WITH
Only use buttons with an electrical and mechanical interlock for the push-button
panel connection to prevent two buttons being pressed at the same time.
The motor automatically recognises the type of push-button panel (1 or 2 buttons)
and therefore sets the correct operating mode.
TM2 R
DOUBLE INTERLOCKED SWITCH
Button with mechanical and/or
electrical interlock
33
1- brown
2- white or black
3- blue
4- yellow green
