Defensor Mk4 Manuel page 16

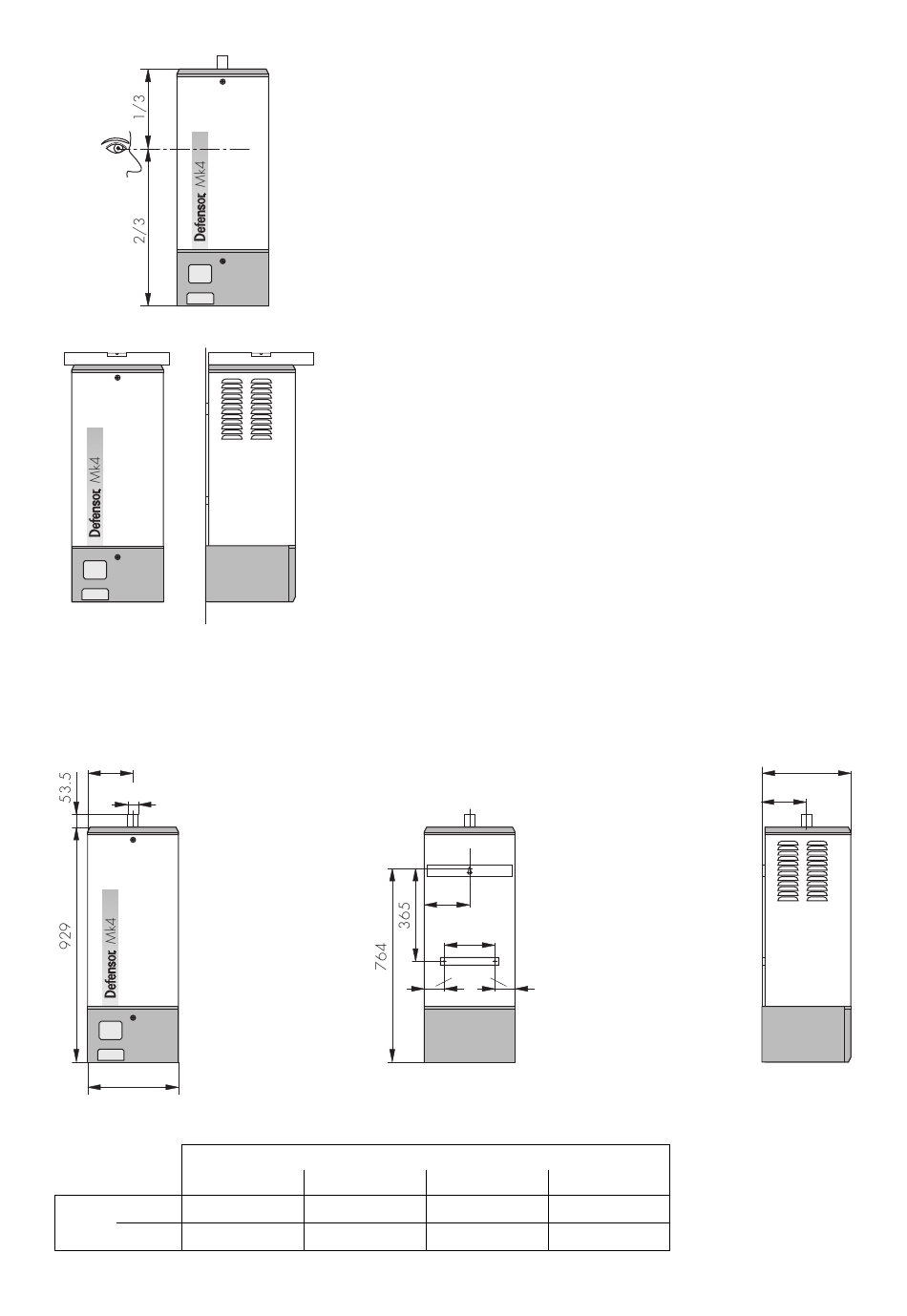

Dimensional drawings/Weights
179.5
G 1 1 / "
4
359
ST 5-../IT 5-..
Weight operation 33 kg
net 24 kg
16
- Place unit at eye level if possible to simplify operation and maintenance.
- Place steam humidifier absolutely horizontal (longitudinally and laterally) to
ensure correct function.
179.5
200
79.5
Defensor Mk4
ST 10-../IT 10-.. ST 20-../IT 20-..
34 kg 45 kg
25 kg 28 kg
ST 30-../IT 30-..
46 kg
29 kg
354
181
