Elpro 12 EVO
GB
In cases where Elpro 12 EVO is to be used in compatibility with Elpro 12 PLUS for NYOTA 115 old series ,therefore without encoder,
electronic brake, slowdown and reversing on obstacle impact, the following settings are required:
!
- set the electronic brake trimmer to the lowest
- set dip-switch no. 9 to ON
- set the torque trimmer to the highest as the mechanical clutch will be used.
NC
27 28 29
30 31 32 33 34
Output for 2nd
sliding gate
L30 L31 L32 L34
green led, it must be
always ON
DIP-SWITCH
1 = ON Photocells stop gate in opening
2 = ON Radio does not reverse (and not stop gate) in opening
3 = ON Automatic closing
4 = ON Pre-flashing activated
5 = ON Radio step-by-step mode, stop in between
6 = ON Deadman control (Dip 4 = OFF and Dip 3 = OFF)
7 = ON Flasher off in dwell time
8 = ON Reclosing on photocells engagement during opening and dwell time
9 = ON Slowdowns and encoder disabled (to replace ELPRO 12 PLUS)
10 = OFF Blank, function to define
11 = OFF Nyota 115 (1,0 HP), ON Nyota 115 (0,5 HP)
12 = ON Secondary board activated (slave mode)
DIAGNOSTICS BY LEDs
L1 (green ON) = Photocells, switches to OFF when an obstacle is detected
L4 (red OFF) = Open, switches to ON when a command pulse to open is given
L5 (red OFF) = Close, switches to ON when a command pulse to close is given
L6 (green ON) = Stop, switches to OFF when a command pulse to stop is given
L7 (red OFF) = Radio, switches to ON when a transmitter button is pulsed
L8 (red OFF) = Limit switch close, OFF with gate in closed position
L10 (red OFF) = Limit switch open, OFF with gate in open position
L30 (red OFF) = Pedestrian, switches to ON whenever a pulse is given to the pedestrian command
L31 (green ON) = Safety edge or photocells in opening, no obstacle detected
L32 (green ON) = Safety edge in closing, no obstacle detected
L34 (green ON) = 2nd Nyota 115 EVO input
POWER (green ON) = Board under 230 V power supply and F1, F2, F3, F4 fuses intact

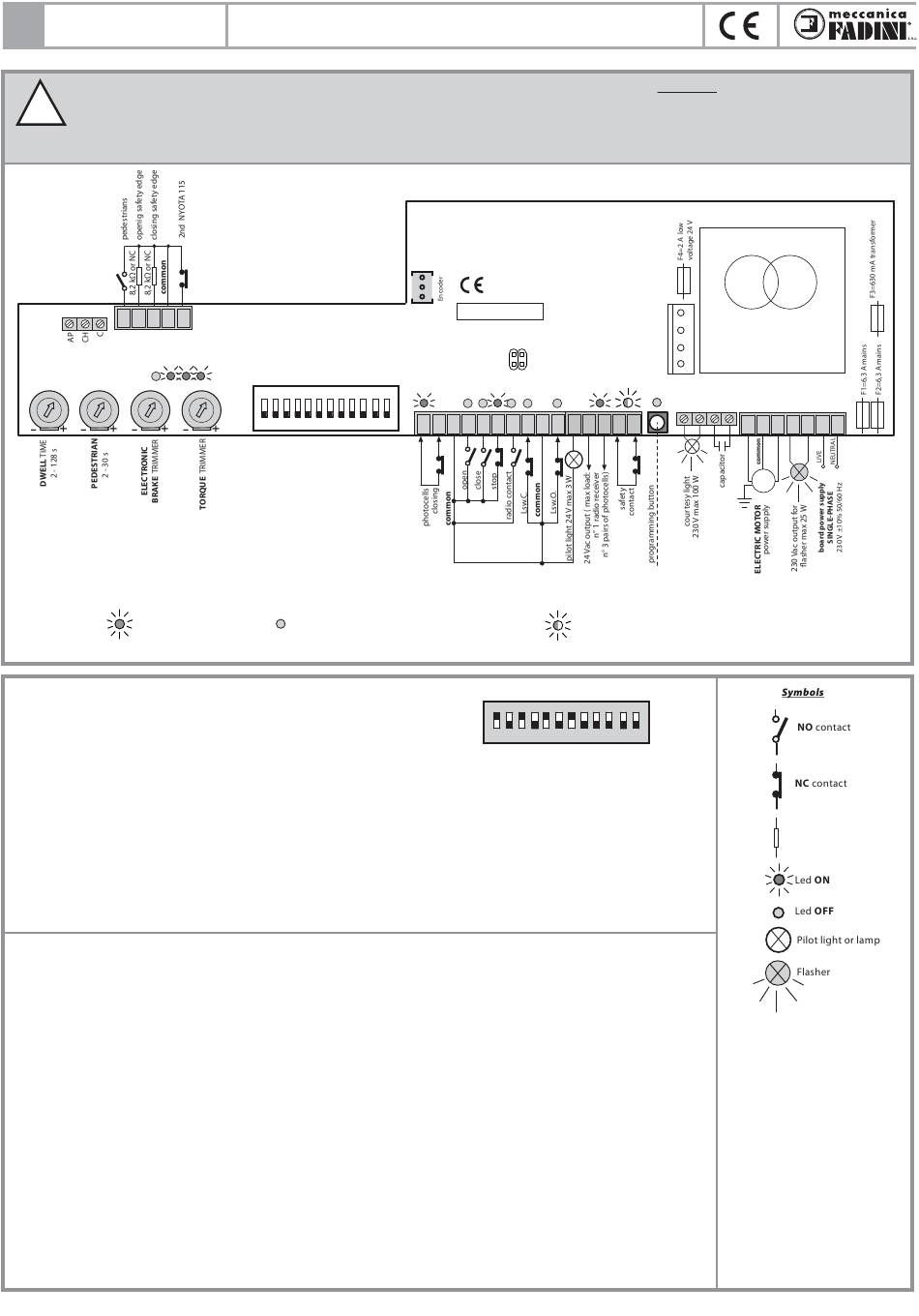

ELECTRONIC CONTROL BOARD FOR NYOTA 115 EVO
ON
OFF
1 2 3 4 5 6 7 8 9 10 11 12
red led, it must be always OFF, it goes ON
whenever a contact or a command are given
Elpro 12 EVO
ELPRO 12 EVO
SAFETY
EDGE
SETUP
A B
Power
L1 L4 L5 L6 L7 L8 L10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
NC
flasher red led: board on programming
phase, waiting for a pulse by the
programming button
DIP-SWITCH
1 2 3 4 5 6 7 8 9 1 0 1 1 1 2
10
Plug-in card
TRANSFORMER
support
ENC
LP
23 24 25 26
16 17 18 19 20 21 22
NC
M1
ON
O F F
Resistive contact
8,2 k or NC
