DLX 1.0
This "Dynamic Code System" decoder is used to decodify the fix DCS code.

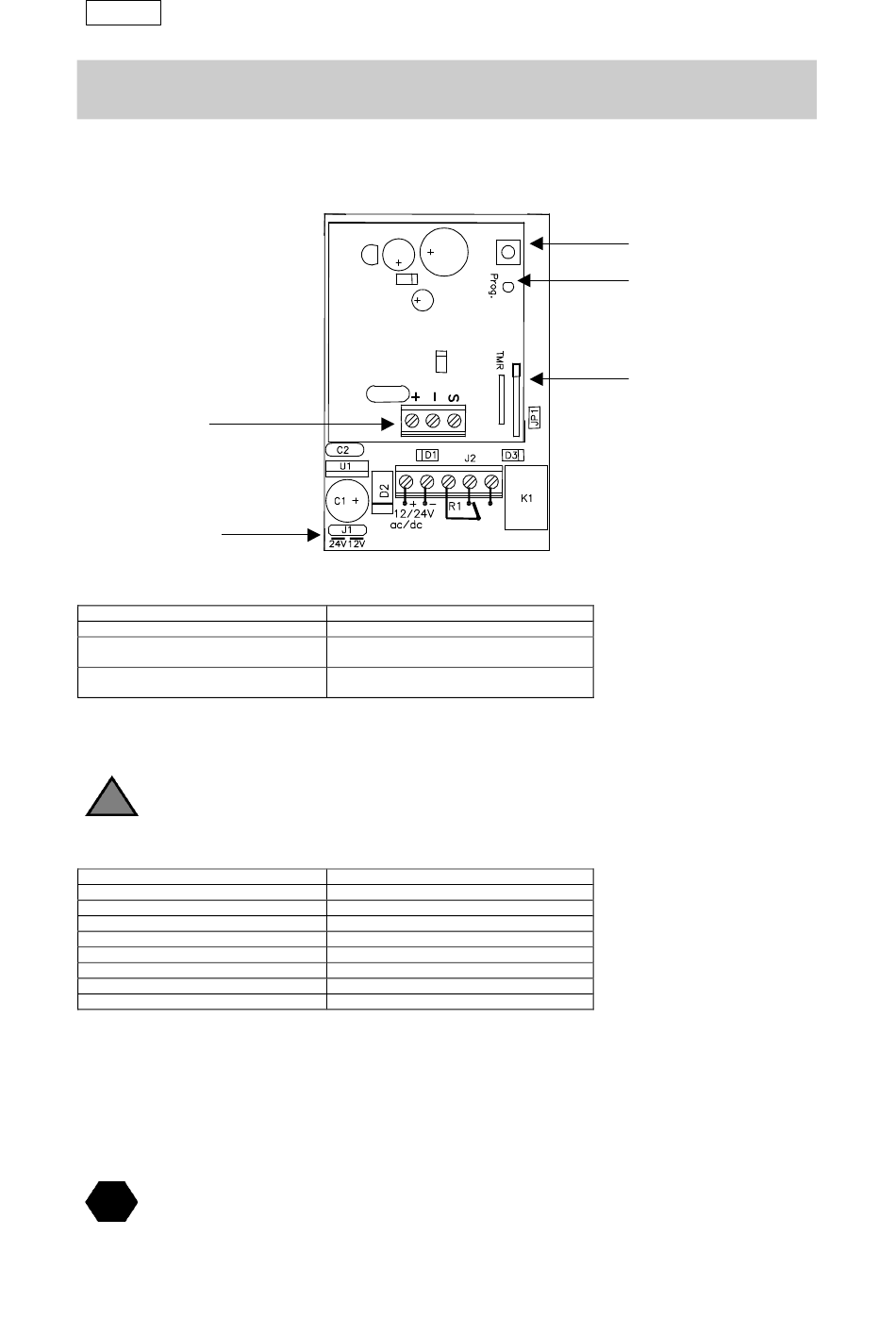

DESCRIPTION OF THE MOTHER BOARD
Output connection signal
Selector 12V – 24V

GENERAL DATA

Code memorization system
Memory capacity
Memory type
Connection of the access control input
Note: The decoder has a capacity of 31 codes, extendible to 126 or 500, inserting an additional memory card. Insering a
memory card onto the card with recoded codes, they will automatically be recorded onto the new card inserted, pressing
the compatible emitter or setting the decoder in the programming mode.
!
Inserting an external memory card, the 31 codes originally recorded on the base card will be deleted.

TECHNICAL DATA

Power
Power range in 12V d.c.
Relay contacts
Sensitivity
Consumption at rest
Max. Operation consumption
Operating temperature
Waterlight
Dimensions
OPERATION
On receiving a code, the decoder checks whether it is stored in the memory; if so, it activates the output. If the code is not
recorded in the memory, the receiver takes no action.
The channel activation mode is always by impulses. At the first detection of a smart card or proximity key, the relay activates
and desactivates inmediately.

INSTALLATION AND CONNECTIONS

Disconnect the power supply from the control panel before installing the card.
STOP
DECODER 31/126/500 CODES
Dynamic Code System
Self-learning or through programmer
31/126/500 codes
Permanent EEPROM 31 codes
Insertable EEPROM 126/500 codes
Smart card readers – maximum 4
Proximity key readers – maximum 1 or 2
12/24V a.c. d.c.
from 11,8V to 13V
1A / 125Vac
Better than –100 dBm
30mA
60mA
-20ºC a +85ºC
IP44
127x70x52mm
ENGLISH
Programing microswitch/reset
Operation LED
Insertable memory card
connection
