VC-C Closed Front Circulators & CHB3 Blower | Specifications are subject to change without notice.
ATTN: Contractors and Qualified Service Technicians
We only sell parts through our wholesalers. For prompt parts service,
contact the wholesaler from which you purchased your Cozy heater.
Fig. M-3
49
HOW TO PROPERLY
ORDER PARTS:
In addition to the part description
and numbers, please be prepared
to provide:
- Model Number
- Serial Number
- Type of Gas Used
This information can be found on
the rating plate that is attached to
the heater.
1017755-B
VENTED CONSOLE - ( PARTS LIST )
45
47
48

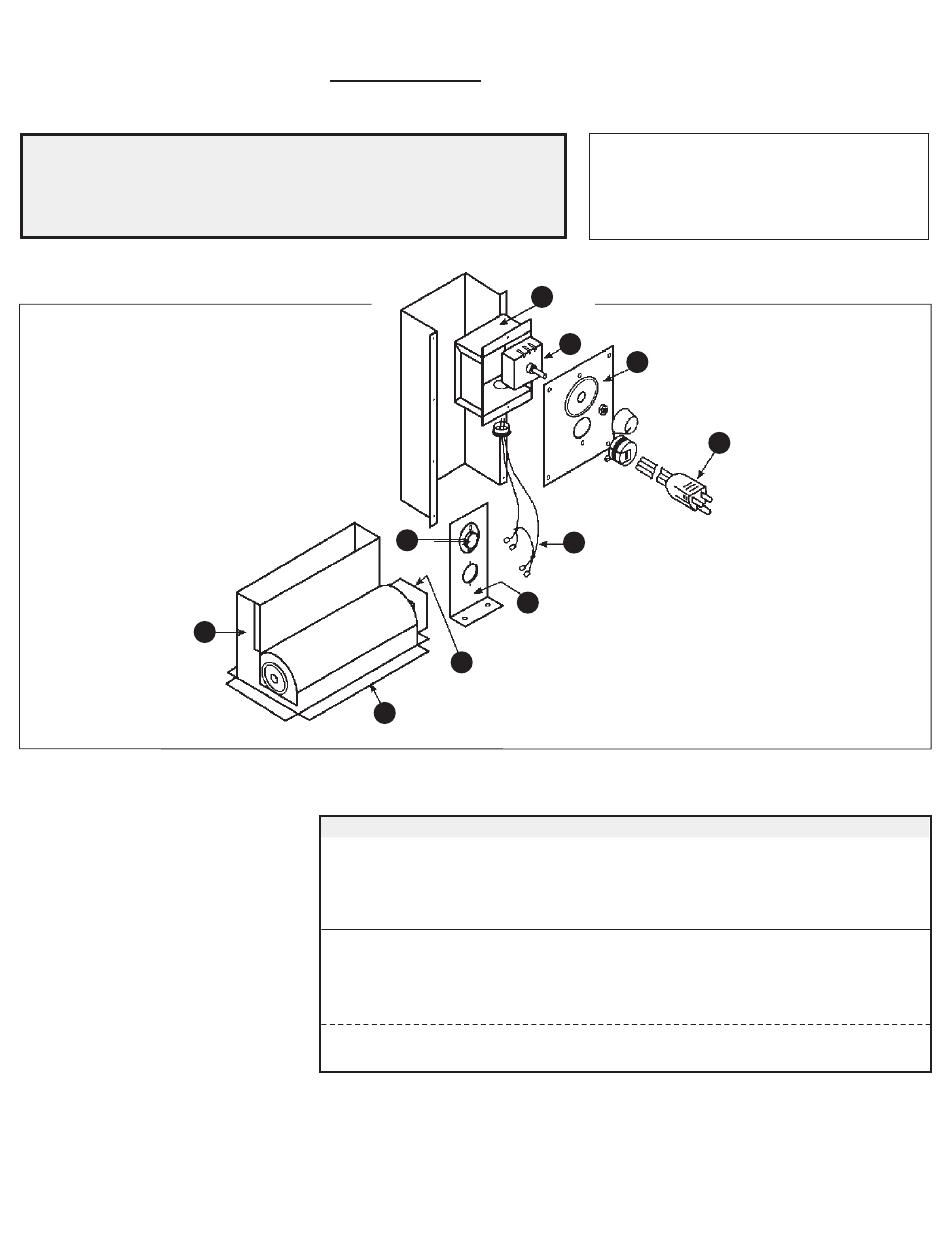

BLOWER PARTS
Optional for VC351C & VC50C.
REF. # PART DESCRIPTION
40 JUNCTION BOX, Assembly
SPEED CONTROL SWITCH, with Knob & Decal
41
COVER, Junction Box
42
43 POWER CORD
44 WIRING HARNESS, Motor
45 FAN SWITCH
46 BRACKET, Fan Switch
BLOWER / MOTOR, Assembly
47
MOUNTING BRACKET
48
49 BLOWER NOZZLE, Assembly
N/A BLOWER GASKET, 7 - 1/4"
N/A BLOWER GASKET, 4 - 5/8"
Page 18
NOTICE: When ordering any
component in the control train assembly,
specify either Dexen, Honeywell, or
Robertshaw components.
40
41
42
44
46
current models are shown at: cozyheaters.com
Specifications subject to change without notice.
43
CHB-3
BLOWER
PART NO.
47850
70111
47870
80202
80256
80253
47840
80251
47835
47820
*80257
*80258
* Two (2) are Required
NOTE: Parts & schematic drawings on
