3 Start-Up
Mounting on DIN rail
Engage the upper snap-in hooks of the repeater in
the DIN rail and press the underside (as shown
in Fig. 9) onto the rail until it engages.
Disassembly involves pulling down the locking slide.
Mounting on mounting plate
The repeater has three through-holes to permit mounting
to any flat surface, e.g. on the mounting plate of a switch
cabinet.
Locking
slide

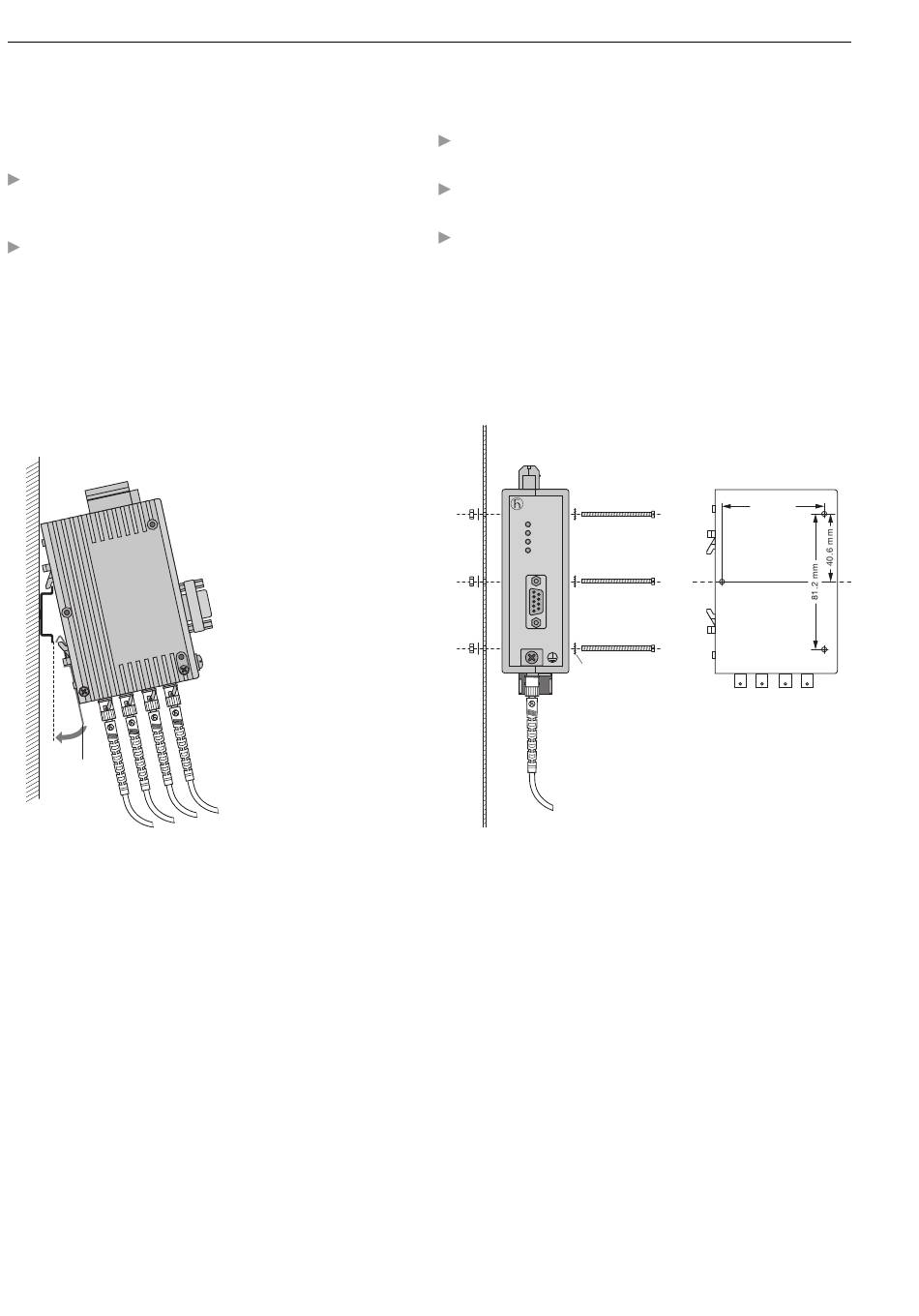

Fig. 9: Mounting repeater on DIN rail
40
Make three holes in the mounting plate corres ponding
to the drilling template in Fig. 10.
Secure the repeaters with machine bolts (e.g.
M 3 x 40).
Ensure reliable electrical connection between the
repeater housing and the mounting plate. Place
toothed washers under the bolt heads to pierce the
varnish.
i OZD
Modbus Plus
System
Port 1
Port 2
Port 3
Port 1
Toothed washer
Fig. 10: Mounting repeater on mounting plate
3.2 Mounting repeaters
61.2 mm
Ø 3 mm
Ø 3 mm
