Dell Latitude C/Dock II Expansion Station Guide page 27

Save all files, close and exit all application programs, and exit the
1
operating system.
Turn off the computer.
2
Remove the monitor from the monitor stand. Remove the monitor
3
stand from the docking device.
Undock your computer and leave the eject/locking lever in the
4
unlocked position.
Detach all cables—including the AC adapter cable—from the docking
5
device. Make sure the eject/locking lever is not in the back/locking
position.

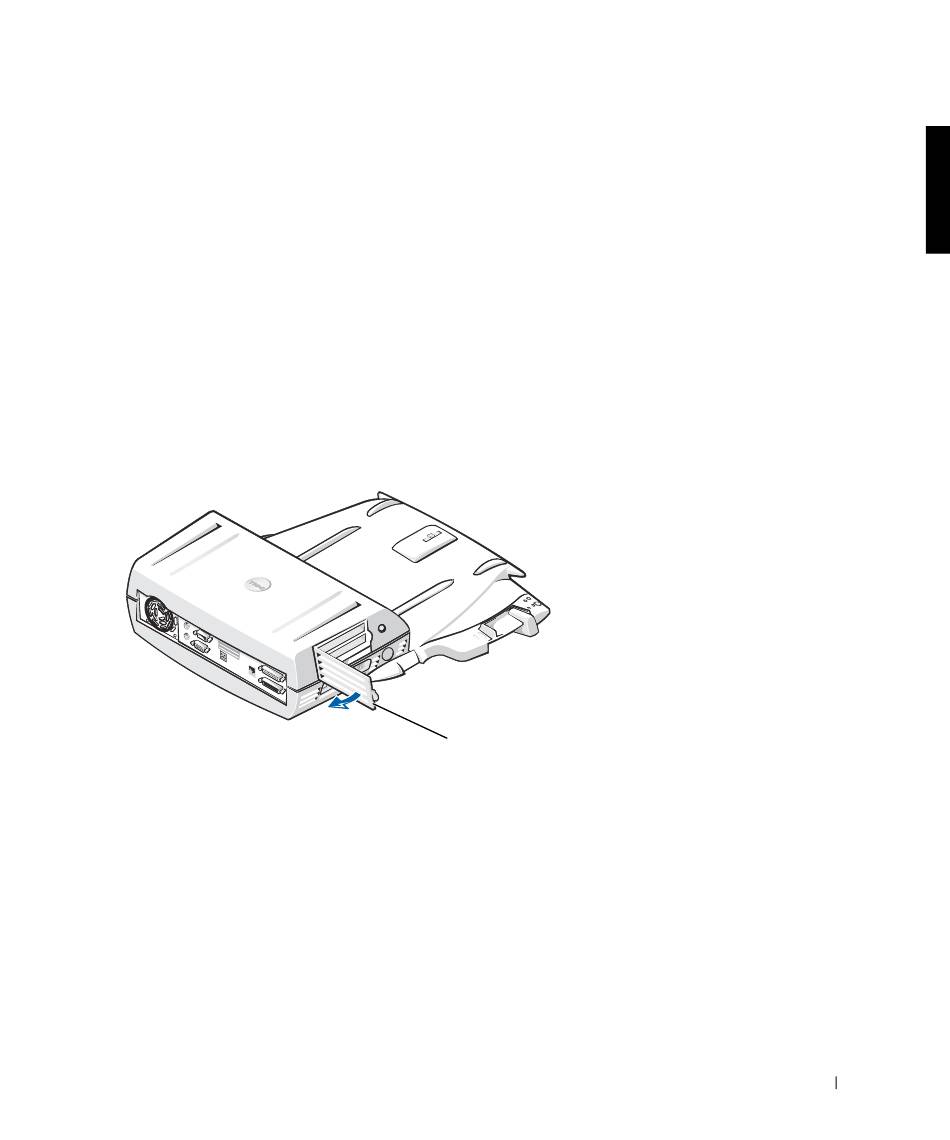

Press the latch on the PCI expansion-slot door and remove it. See the
6
following figure.
P C I E x p a n s i o n - S l o t D o o r a n d E x p a n s i o n - C a r d C o n n e c t o r
Remove the top cover by pressing the two side buttons and rotating
7
the cover toward the back of the docking device. Once the cover is
rotated back, disengage the hinge tabs from the back of the docking
device, and fully remove the top cover.
See the figure "Removing the Top Cover."
PCI expansion-slot door
