Selecting drill chucks and tools
For hammer drilling and chiselling, you will need SDS max
tools, which insert into the SDS max drill chuck.
Changing the Tool
The dust protection cap (3) largely prevents the penetration
of drilling dust into the tool holder during operation. When
inserting the tool, make sure that the dust protection cap (3)
does not become damaged.
Replace a damaged dust protection cap immediately.
u
It is recommended that you have use an after-sales
service for this.
Changing the Tool (SDS max)
Inserting the Application Tool (see figure B)
With the SDS-max tool holder, you can change the applica-
tion tool simply and easily without additional aids.
– Clean and lightly grease the insertion end of the applica-
tion tool.
– Insert the application tool into the tool holder while turn-
ing it until it locks automatically.
– Check the latching by pulling the tool.
Removing the application tool (see figure C)
– Push the locking sleeve (4) back and remove the applica-
tion tool.
Dust/Chip Extraction
The dust from materials such as lead paint, some types of
wood, minerals and metal can be harmful to human health.
Touching or breathing in this dust can trigger allergic reac-
tions and/or cause respiratory illnesses in the user or in
people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as
carcinogenic, especially in conjunction with wood treatment
additives (chromate, wood preservative). Materials contain-
ing asbestos may only be machined by specialists.
– Use a dust extraction system that is suitable for the ma-
terial wherever possible.
– Provide good ventilation at the workplace.
– It is advisable to wear a P2 filter class breathing mask.
The regulations on the material being machined that apply in
the country of use must be observed.
Avoid dust accumulation at the workplace. Dust can
u
easily ignite.
Operation
Start-up
Ensure that the cover (11) of the Bluetooth
u
Module GCY 42 is closed during operation. This will pre-
vent dust from getting in.
Setting the Operating Mode (see figure D)
You can use the combi switch (5) to select the operating
mode of the power tool.
Bosch Power Tools
Note: Only change the operating mode when the power tool
is switched off. Otherwise, the power tool may become dam-
aged.
Note: If you switch to a different operating mode while the
on/off switch is locked, the power tool will switch off.
– To change the operating mode, turn the combi switch (5)
to the required position until you hear it click into place.

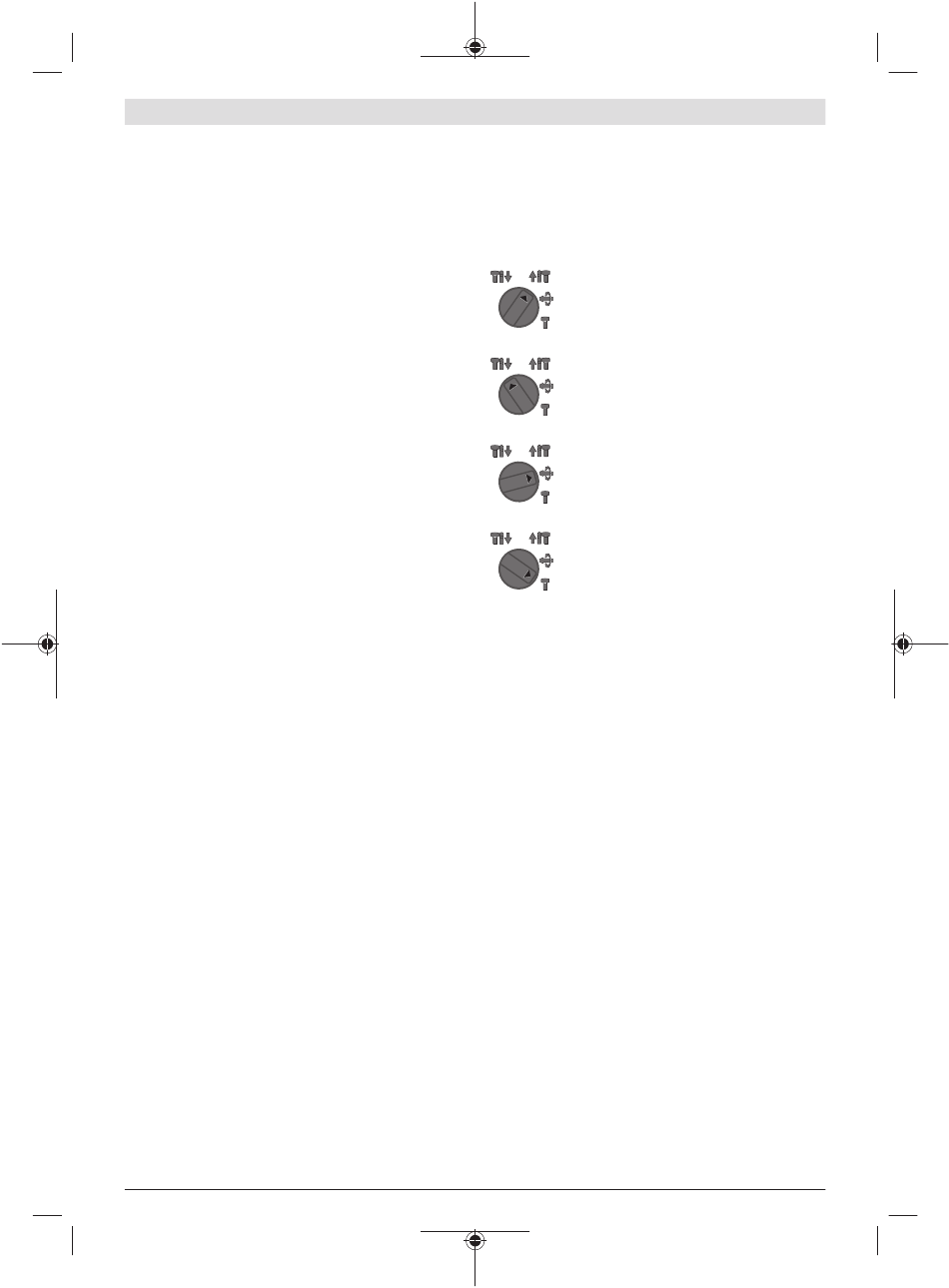

Position for hammer drilling into concrete or
stone
Anticlockwise position for loosening the ap-
plication tool from the workpiece
Vario-Lock position for changing the chiselling
position.
Position for chiselling
Switching On/Off
– If necessary, release the lock-on button (7) for the on/off
switch.
– To switch on the power tool, press the on/off switch (9).
The lamp lights up when the on/off switch (9) is lightly or
fully pressed, meaning that the work area is illuminated in
poor lighting conditions.
– To switch off the power tool, release the on/off switch
(9).
Adjusting the Speed/Impact Rate
You can adjust the speed/impact rate of the power tool when
it is on by pressing in the on/off switch (9) to varying ex-
tents.
Applying light pressure to the on/off switch (9) results in a
low rotational speed/impact rate. Applying increasing pres-
sure to the switch increases the speed/impact rate.
You can also control the speed on the user interface and/or
via a smartphone app: .
Changing the chiselling position (Vario-Lock)
You can lock the chisel in 16 different positions, so you can
select the optimum working position for each task.
– Insert the chisel into the tool holder.
®
Low Energy
– Turn the combi switch (5) to the "drilling" position.
– Turn the application tool to the required chisel position.
– Turn the combi switch (5) to the "chiselling" position.
With this, the tool holder is locked.
