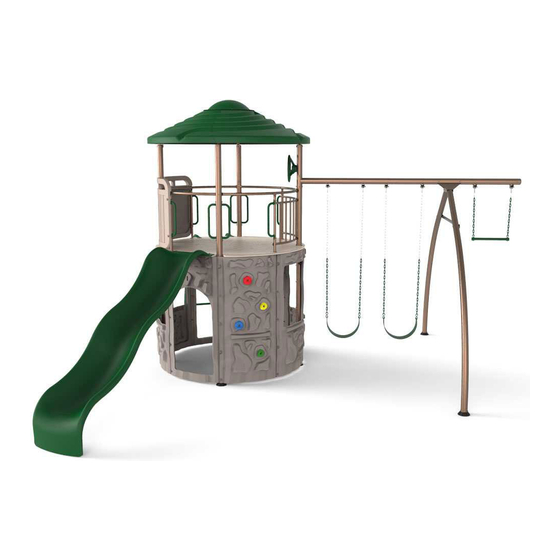

ADVENTURE TOWER
PLAYSET
MODEL #60091
MODEL 90440
• Before you start, prepare a level surface with the proper
Safety Zone (see page 12).
• 3+ people recommended for setup
Save this instruction in the event that the manufacturer has
to be contacted for replacement parts.
TOOLS REQUIRED
1/2" (13 mm)
(x1)
(x3)
3/8" (10 mm)
(x1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
TM
(x1)
(x1)
5/16" (8 mm)
(x1)
(x1)
Live Chat: www.lifetime.com
(click on "Ask An Expert" tab)
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
1/2" (13 mm) 9/32" (7mm )
(x2) (x1)
3/16" (5 mm)
(x1)
(2, included)
(x3)
For Customer Service in Mainland
Europe and the United Kingdom:
E-mail: cs@lifetimeproducts.eu
TABLE OF CONTENTS
Icon Legend................................4
Notices....................................5
Safety Information.....................6
Safe Play Area...........................12
Tower Frame Assembly..............13
Swing Bar Assembly..................27
Deck Assembly..........................34
Parts Identifi er..........................i-iv
Roof Assembly..........................50
Tower Walls Assembly................57
Climber, Slide & Swing
Assembly............................68
Anchor Kit Installation...............77
Maintenance Instructions..........82
Registration...........................85
Warning Sticker........................88
Warranty..............................89
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 90440
Product ID:
