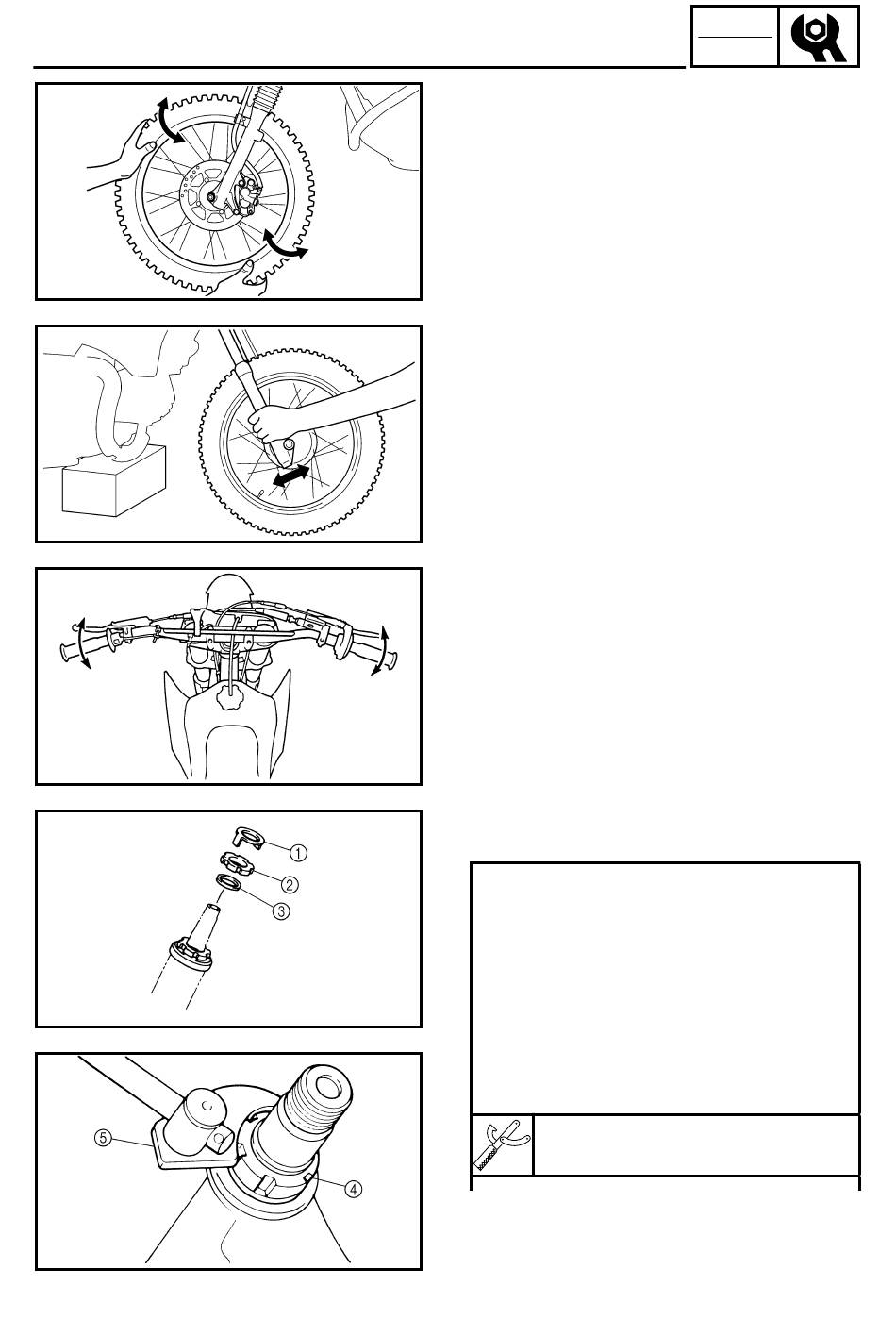

STEERING HEAD INSPECTION AND ADJUSTMENT
2. Inspect:
Bearing free play
G
Exist play → Replace.
STEERING HEAD INSPECTION AND
ADJUSTMENT
1. Elevate the front wheel by placing a suit-
able stand under the engine.
2. Check:
Steering shaft
G
Grasp the bottom of the forks and gen-
tly rock the fork assembly back and
forth.
Free play → Adjust steering head.
3. Check:
Steering smooth action
G
Turn the handlebar lock to lock.
Unsmooth action → Adjust steering ring
nut.
4. Adjust:
Steering ring nut
G
Steering ring nut adjustment steps:
Remove the number plate and starter
G
knob.
Remove the main switch, handlebar and
G
upper bracket.
Remove the special washer 1
G
Remove the upper ring nut 2, and rubber
G
washer 3.
Loosen the lower ring nut 4 using the
G
steering nut wrench 5.
Steering nut wrench:
YU-33975/90890-01403
3 - 28
INSP
ADJ
