Specifications
Supply voltage (nominal): 115/230 Vac, ±10%, jumper selectable, 50/60 Hz
Power consumption:
Ambient operating range: –40°C to +60°C (RMM2 module)
Relative humidity:
Temperature sensors:
Temperature coefficient:
Sensor connections:
RS-485 connections:
Replaceable fuse:
Installation materials (not supplied)
Fasteners
4 screws for 6.5 mm holes for mounting enclosures
Pt 100 temperature sensors (RTDs)
MONI-PT100-NH
MONI-PT100-EXE

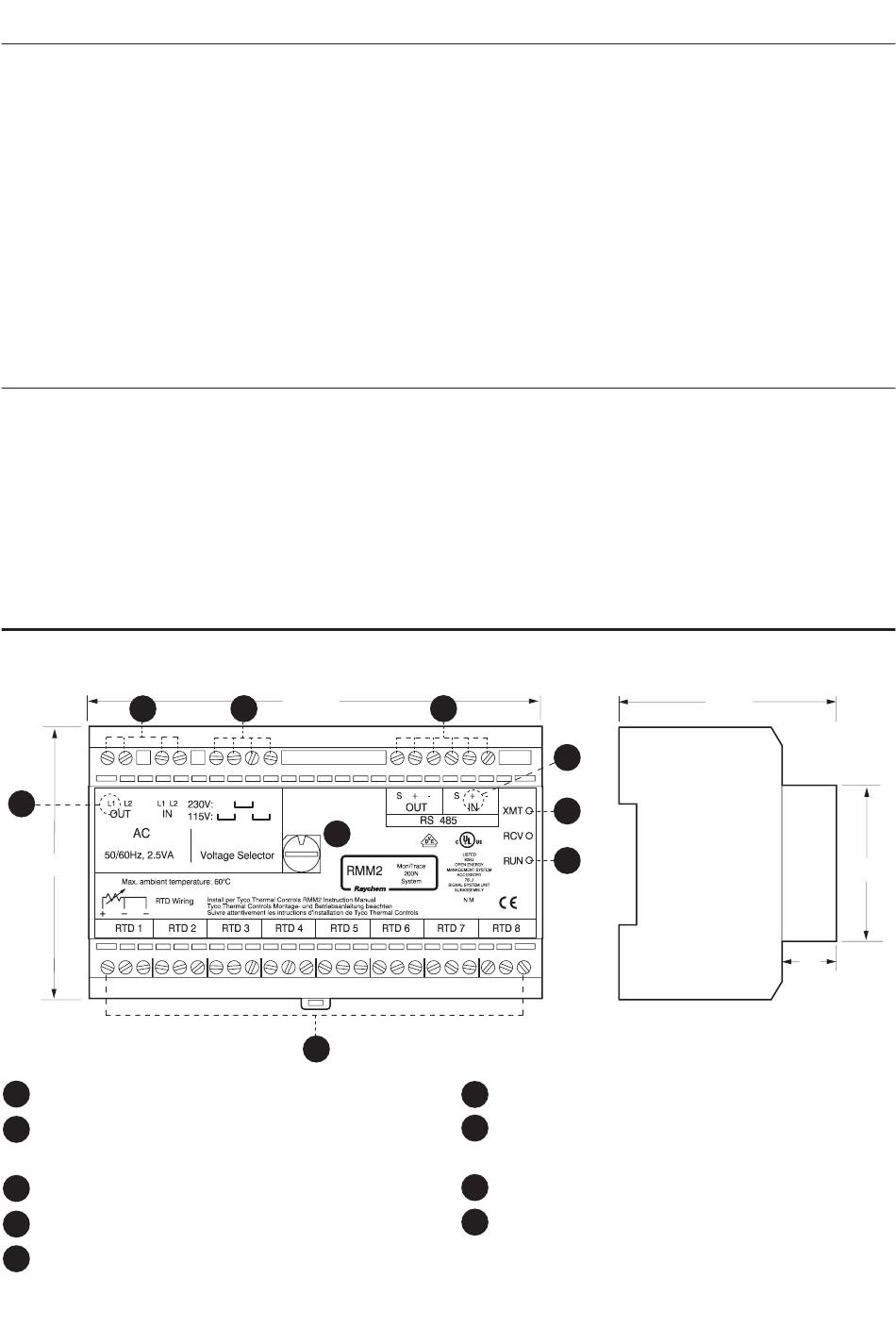

MoniTrace Remote Monitoring Module (RMM2)
2
1
75 mm
75 mm
1
Fuse (200 mA, 250V)
2
Terminals for power input with provision for
daisy chaining
3
Voltage selector jumpers
4
Terminals for RS-485 bus
5
LEDs which indicate communications activity
2
2,5 VA
–20°C to +60°C (EExn enclosure and glands)
5 to 95%, noncondensing
3-wire RTD (Pt 100)
per IEC 751-1983 (100 Ω at 0°C)
Can be extended with a 3-core shielded cable of 20 Ω max. per conduc-
tor (e.g., 150 m with 3 x 1.5 mm2 cable)
Shielded, single twisted pair, max. 1200 m
F 200 mA/250 V, Wickmann part number 19370-034-K (FAST BLOW)
Temperature sensor for non-hazardous areas with M20 cable gland
Temperature sensor for hazardous areas (EEx e II T6, zone1) with M20
cable gland
3
125 mm
125 mm
7
0
0
8
4
9
5
6
6
LED which indicates power to the RMM2 unit
7
Rotary switch (16 position) to assign RS-485
address
8
Terminals for RTD lead wires
9
Shorting block to select RS-485 termination
mode
60 mm
60 mm
42 mm
15
15
mm
mm
42 mm
